Description

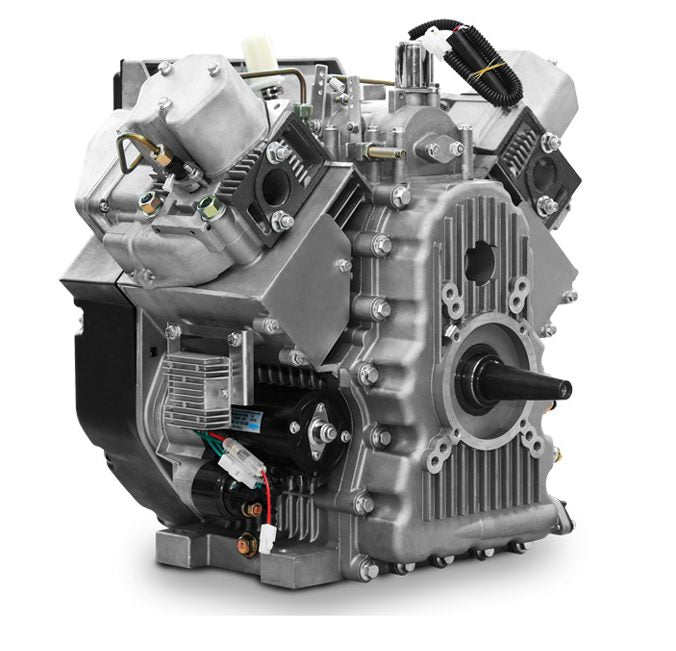

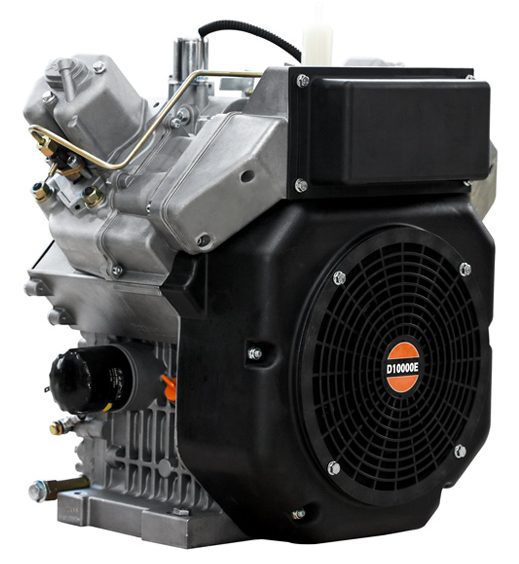

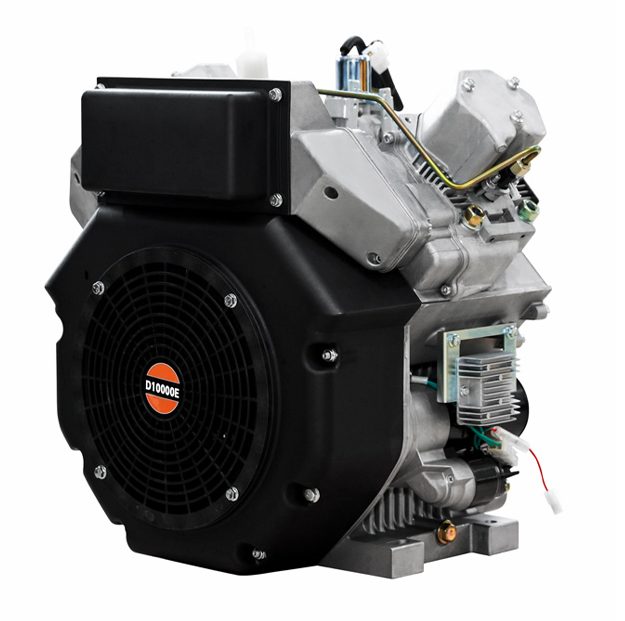

The D1000E20-Q is a ITC diesel engine rated at 24 hp, 1/8" Keyed Q shaft, electric start.
Manufacturer specifications
Features
- ITC air-cooled diesel engines are engineered with quality parts to improve durability, boost engine performance and lengthen service intervals. Coupled with a cast iron cylinder liner, you’ve got a machine that won’t quit.
- For generators
- Reliable power output
- Rugged Design for most conditions and environments
- Integrated sound dampener (silencer/muffler) reduces noise levels
- Direct Injection means better performance
- Low fuel and oil consumption
Specifications
- Type: Double-cylinder, V-type, 4-stroke, air-cooled
- Bore x Stroke: 92 x 75 mm
- Displacement: 0.997 L (997 cc)
- Compression Ratio: 20:1
- Rated Speed: 3,600 RPM
- Max. Power: 16 kW (21.8 HP) / 17.6 kW (24 HP)
- Fuel Tank Capacity: -
- Fuel Consumption: ≤250 g / 260 kw per hr
- Lube Oil Capacity: 3.8 L
- Starting: Electric
- Output Shaft: Crankshaft / Camshaft
- Fuel trademark: 0#(summer), -10#(winter) diesel
- Oil trademark: CD grade or SAE10W-30 15W-40
- Weight: 82 kg
- Dimensions: L 530 mm × W 580 mm × H 530 mm
At a glance
| Brands | ITC Power |
| Engine - HP | 24 |
| Engine - Start | Electric |
| Engine Shaft | 1/8" Keyed Q |
| Speed - RPM | /600, 3 |
