Description

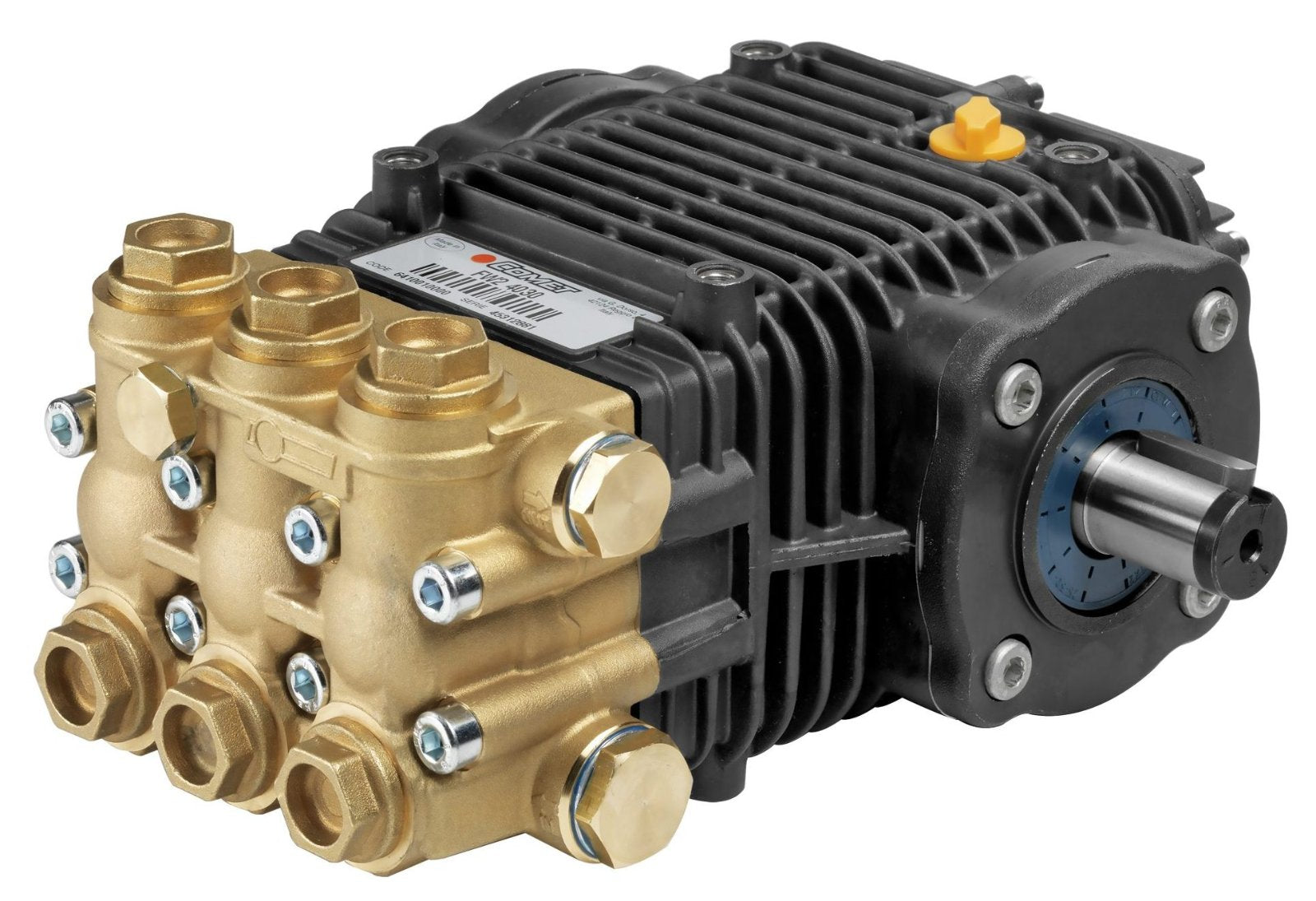

The FW25030S ASSY is a Comet high pressure pump, 1450 rpm, 24 mm, Solid shaft.
Manufacturer specifications
Features
- Brass Head
- Reversible Crankcase for Right or left Hand Mounting
- Hardened Stainless Steel piston Guides Highly Efficient Stainless Steel Check Valves
- Solid Ceramic Plungers
- High & Low Pressure Seals: High Quality Buna-Textile Packings
- Additional Anti-Extrusion Ring under the Seal
- Solid Brass Manifolds
- Special Forged Brass Oversized Connecting Rods
- Die-Cast, Anodized Aluminum Crankcase
- Highly Quality Tapered Roller Bearings
- Optimal Oil Bath for High Speed Operation
- S 24mm Solid Shaft for Belt Drive, Gearbox or Flex Couplers
- Nickel plated head available on request
- Standard versions with p.t.o on right hand side, left side on request.
Specifications
- Comet Model: 6410 0300
- Shaft: Solid, 24 mm
- Speed: 1450 RPM
- Flow: 18.8 L/min - 5 GPM
- Pressure: 3000 PSI - 207 BAR - 20.7 Mpa
- Power: 10 HP - 7.5 kW
- Weight: 8.8 KG - 19.4 lbs
- Inlet: 1/2" BSP Female
- Outlet: 3/8" BSP Female
- Head Material: Brass
- Pump Type: Triplex
At a glance
| Brands | Comet S.p.A. |
| Series | FW2 |
| Speed - RPM | 1450 |
| Power - hp | 10 |
| Weight | 8.8 |
| Pump Shaft | 24 mm, Solid |
| Pump - Type | Triplex |
| Inlet | 1/2" BSP F |
| Outlet | 3/8" BSP F |
| Pump - Head | Brass |
