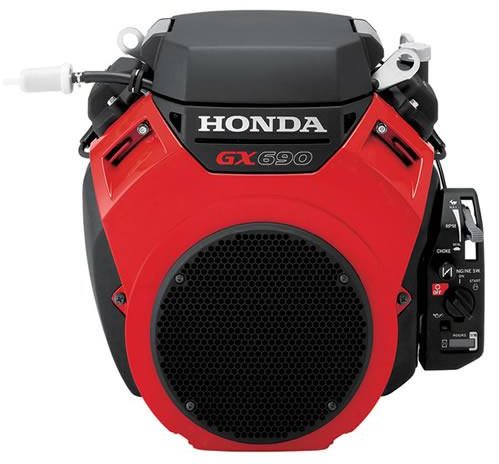

Honda 27hp Petrol Engine - 1 1/8" Generator V Shaft, Electric Start | GX690 RHVXE1

The GX690 RHVXE1 is a Honda petrol engine rated at 27 hp, 1 1/8" Generator V shaft, electric start.

Manufacturer specifications

Features

• Honda's V-Twin range of engines are the cream of the crop, powering Pressure Washers, Water Pumps and Commercial Lawn & Garden Equipment throughout Australia.
• The Stationary Engine GX690 V-Twin can also be found in Tillers / Cultivators and other Agricultural Equipment, Generators as well as many different applications.
• And if it's something more hardcore that you need power for, the GX690 is also used in the Forestry and Construction/Industrial industries.
• The fuel economy of the Stationary Engine GX690 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.
• The Stationary Engine GX690's high capacity pump facilitates consistent oil delivery, and a handy Oil Alert will keep you posted if you look like running dry.
• There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.
• All Honda V-Twin Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.
• All just extra reasons for you to Love Your Honda GX690 V-Twin.

Specifications

• Engine - HP - 27
• Engine - Start - Electric
• Engine - Shaft - 1 1/8" Generator V
• Engine Type: Air cooled 4-stroke OHV petrol engine, 90° V-twin design
• Bore x Stroke: 2 / 78 mm x 72 mm
• Displacement: 688 CC
• Fuel Type: Unleaded
• Oil Capacity: 1.9 L
• Dimensions: L 429 mm x W 410 mm x H 438 mm

At a glance

Manuals and documents

• Shaft reference (PDF)
