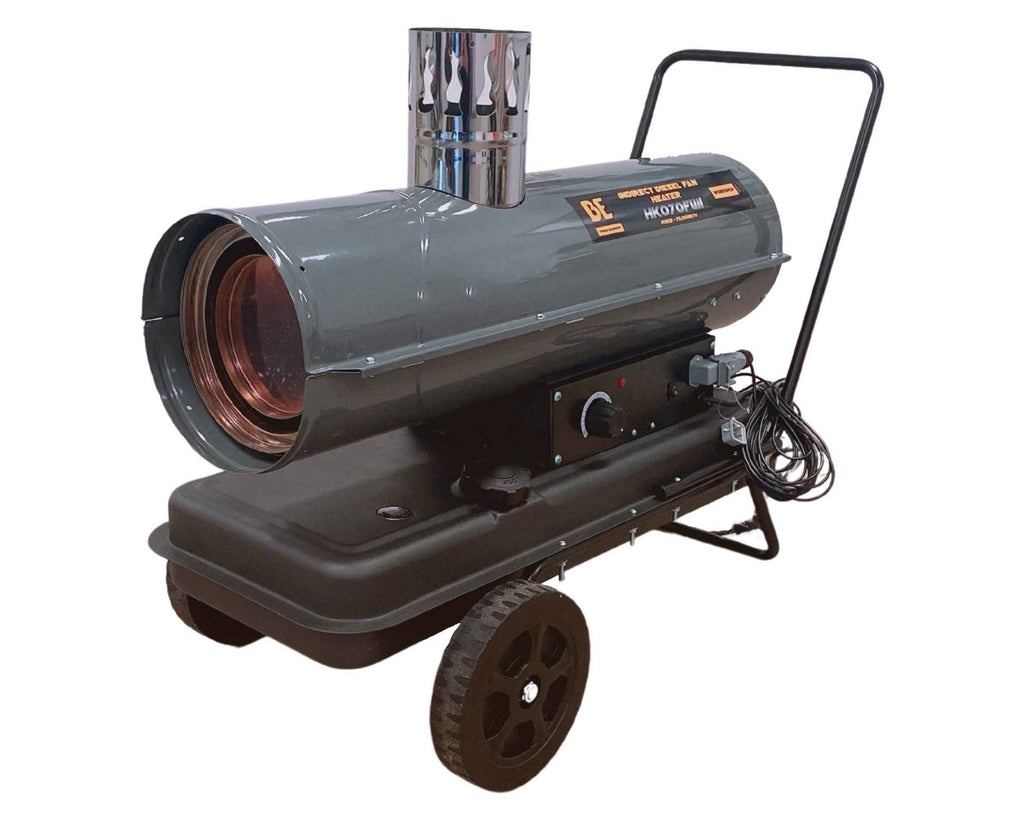

BE 20kW Diesel Indirect Heater - 70,000 BTU | HK070FWI

The HK070FWI is a diesel heater with an output of 20kW / 70,000 BTU.

Manufacturer specifications

Clean, safe, and powerful heat for enclosed spaces.

BE indirect diesel heaters are engineered to deliver high-performance heating while keeping air quality a top priority. Perfect for events, marquees, construction sites, and workshops, these heaters provide clean, fume free warmth through ducted air systems.

• 100% clean, dry heat, ideal for enclosed or poorly ventilated areas
• High thermal efficiency with stainless steel heat exchangers
• Ductable for flexible heat distribution across multiple zones
• Weather-resistant design with robust wheels for outdoor job site use
• Built-in safety features including flame failure and overheat protection

Features

• Fully featured, with everything included:
  • Remote thermostat included plus Overheat & Flame-Out Safety devices
  • Stainless combustion chamber and rugged steel body
  • Enclosed electric motor for longer life
  • Built-In Calibrated

Specifications

• Heating Output: 20 kW (70,000 BTU)
• Heating Area: 200 m²
• Air Flow: 750 m3/h
• Ducting Diameter: 230 mm
• Power: 240 V 10 A
• Fuel Tank Capacity: 24 L
• Fuel Consumption: 1.9 L/hr
• Weight 24 kg
• Dimensions: 835 mm x 360 mm x 515 mm

Note

• FOR ATTACHING DUCTING TO HEAT OUTLET:

  • The first metre (1m) of ducting is required to be rated at a minimum of 350°C temperature resistance, all remaining ducting is required to have a minimum of 200°C temperature resistance.

At a glance

Manuals and documents

• Owner's manual (PDF)
• Parts diagram (PDF)
