Description
BE 650 mm (26") Industrial Pedestal Misting Fan from BE.
Manufacturer specifications

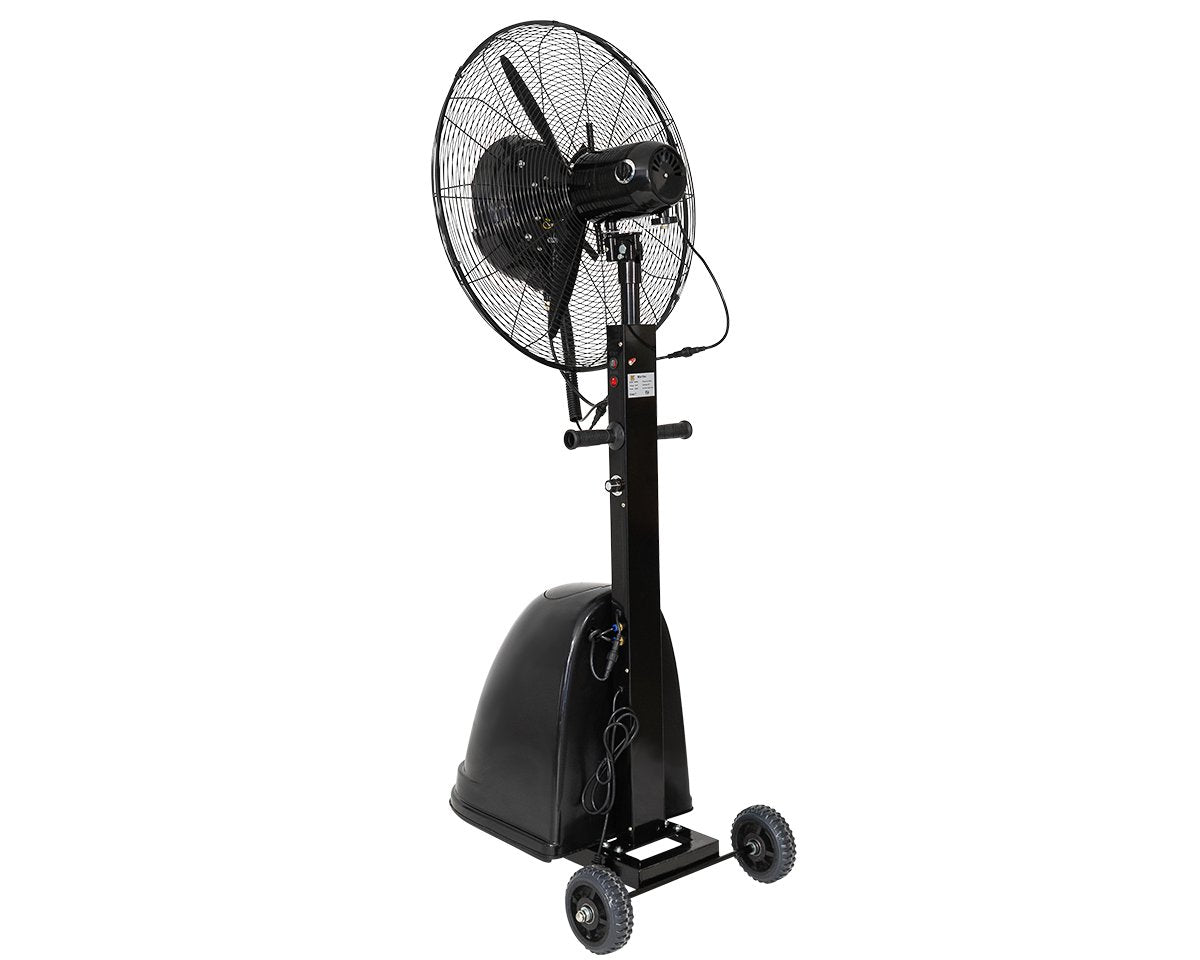

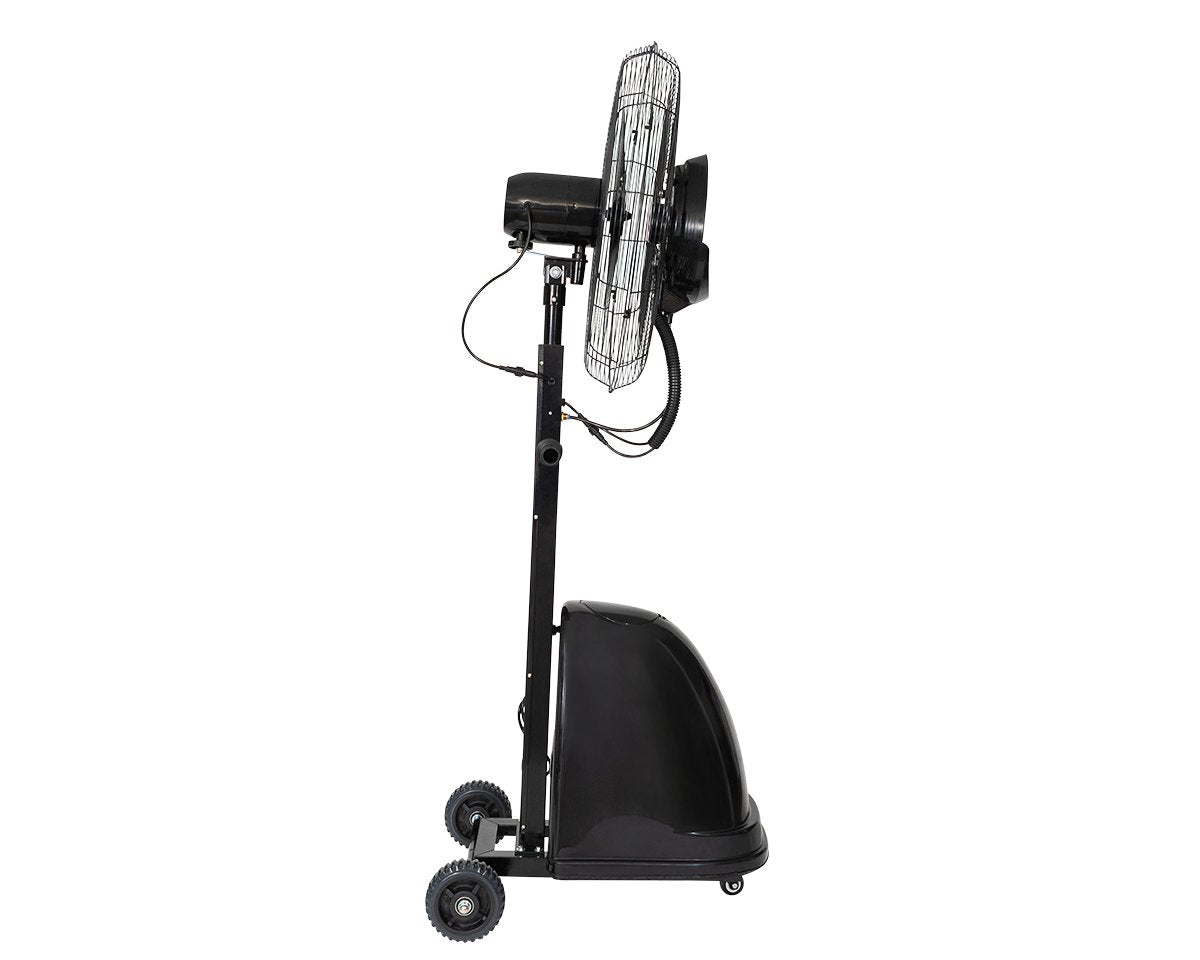

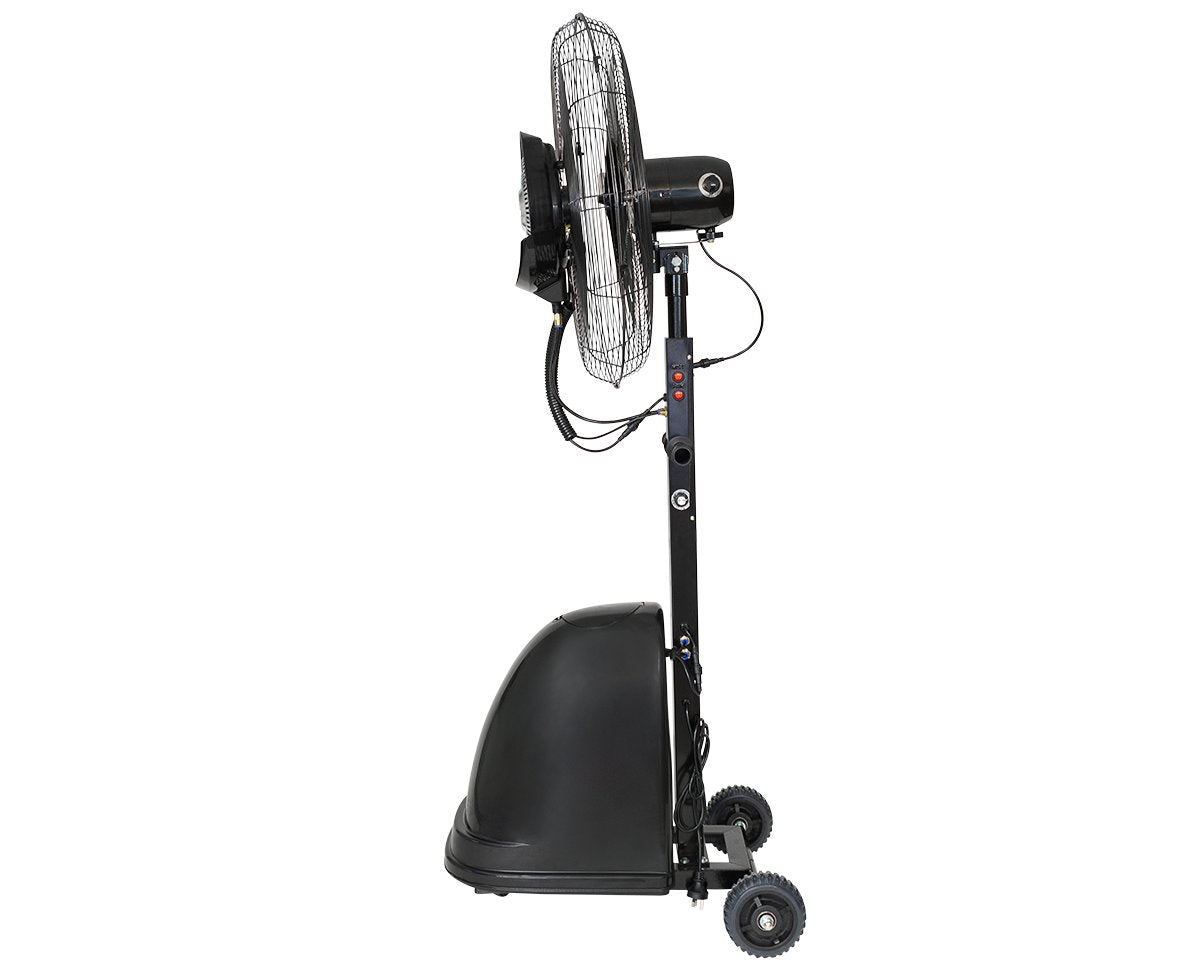

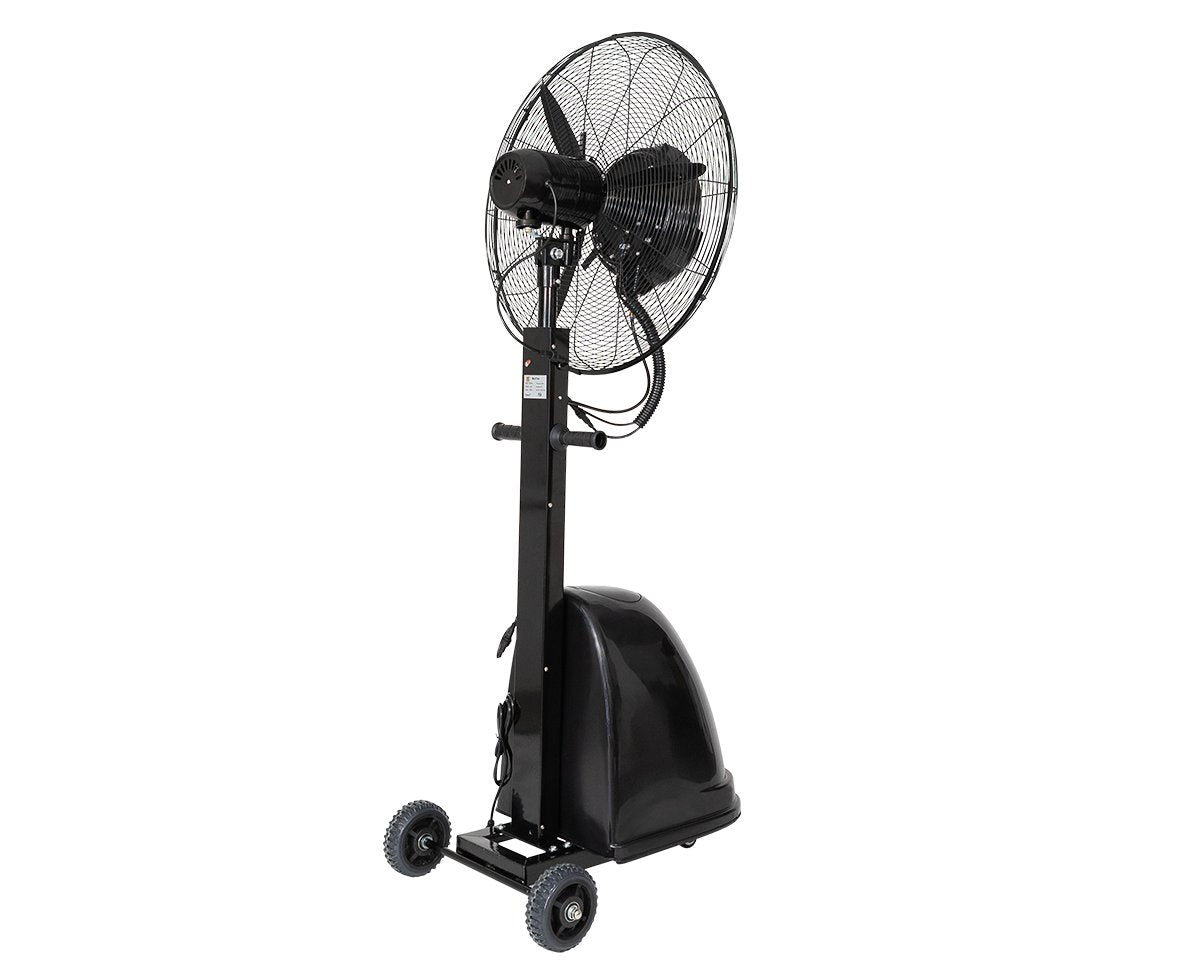

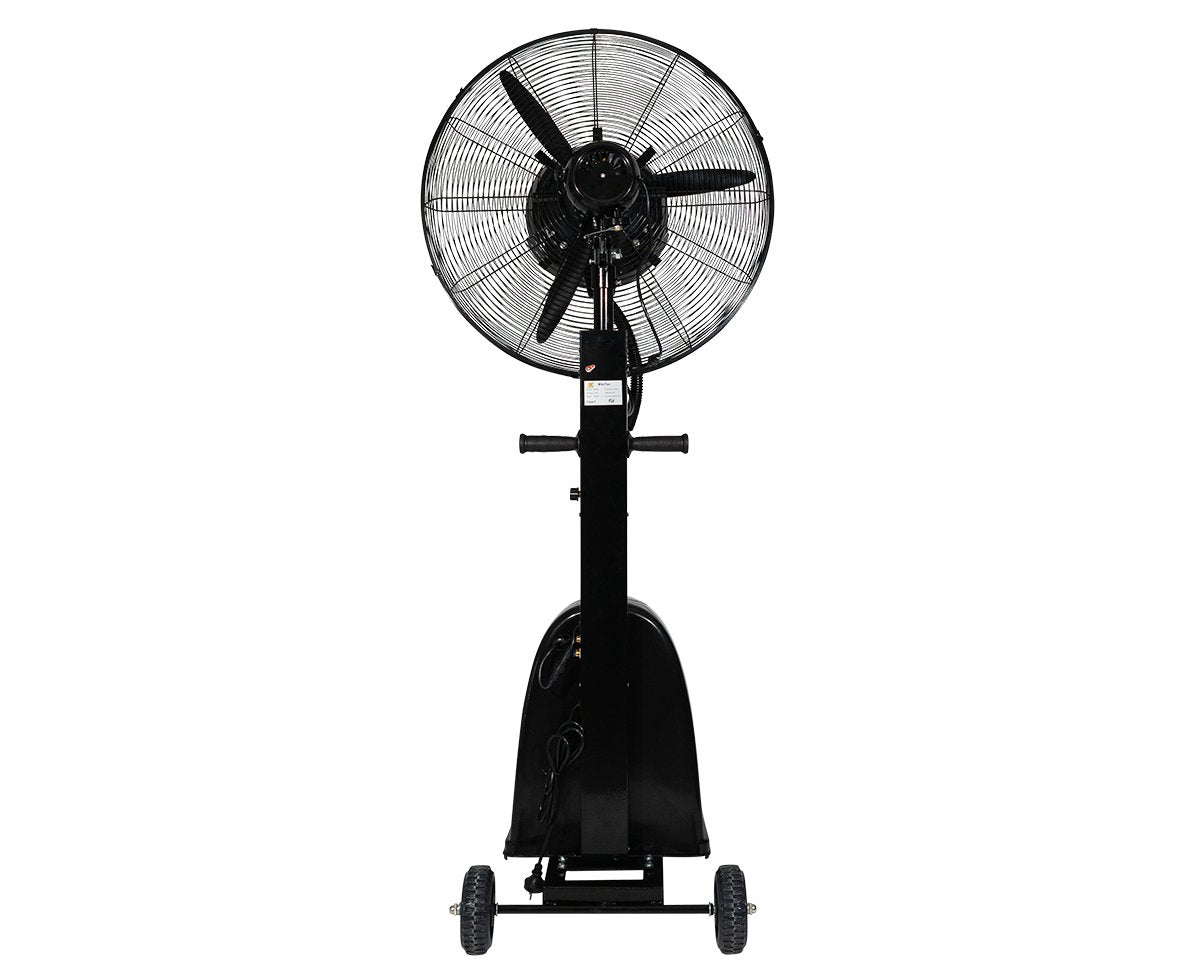

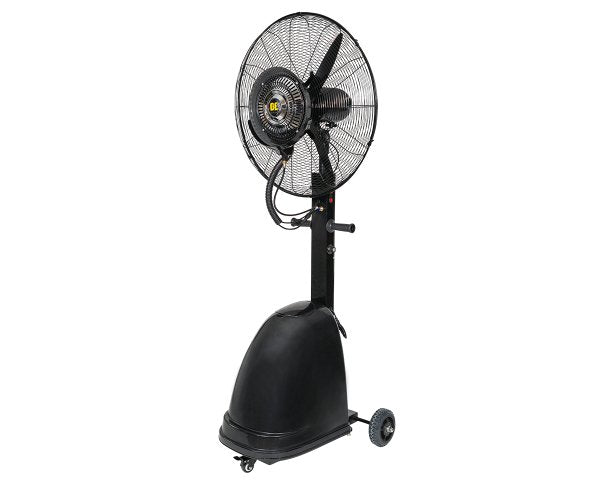

BE IMF66 650 mm (26") 260W 3-Speed Industrial Pedestal Misting Fan
The BE misting fan combines a high pressure, centrifugal misting system with a blower fan. That means there are no misting nozzles and thus no possibility of clogging from hard water build-up.
There are 3 fan speeds to choose from — low, medium, and high — with respective RPMs of 1400, 1500, and 1700. This outdoor fan has a very wide head, at 650mm across, and when combined with the oscillation option, is highly effective at cooling industrial, horticulture, agriculture, and commercial operations.
The fan is fed by a huge 41 Litre water storage tank and includes a no mess drip collector. You can also control the mist volume output to help get you through the heat this summer.
Features
- Adjustable height to 1.8 m and 3 speed operation
- Large water storage tank
- No mess drip water collector
- Heavy duty base for safety and stability
- Fixed wheels and lockable castors
- Nozzle-less misting hub technology (high-speed centrifugal atomizer) is guaranteed not to clog
- Adjustable dial to control misting volume
- Automatic shut-off when water tank is empty
- Suitable for cooling people, stockbreeding and greenhouse applications
- Diameter of atomized drip:
- Mist Jet distance: 8 - 10 m
Ideal For
- Great for workshops and factory floor areas
Specifications
- Voltage: 240 V/50HZ
- Motor Power: 260 W
- Amp Draw: 1.1 A
- Fan Speeds: 3
- Fan Blades: 3 Blade, 660mm Cast Steel
- Oscillation Angle: 90°
- Fan Tilt Adjustment: 30°
- Cable Length: 2 m
- Plug Type/Spec: 10A - AU SAA Type
- Mounting Type: N/A
- Air Output: 138 m³/min
- Air Volume: 4,873 CFM
- Air Velocity: 8 m/sec
- Effective Temp Drop: 2 - 8°C
- Effective Area: 200 m²
- Water Tank: 41 L
- Water Consumption: 5 L/hr
- Noise Level: 68 dBA
- Net Weight: 23 kg
- Gross Weight: 26 kg
- Certifications: SAA/AS, tropic-proofed
- Warranty: 1 Year
- Product Dimensions: L 70 cm x W 55 cm x H 178 cm
At a glance
| Brands | BE Power Equipment |
