Description

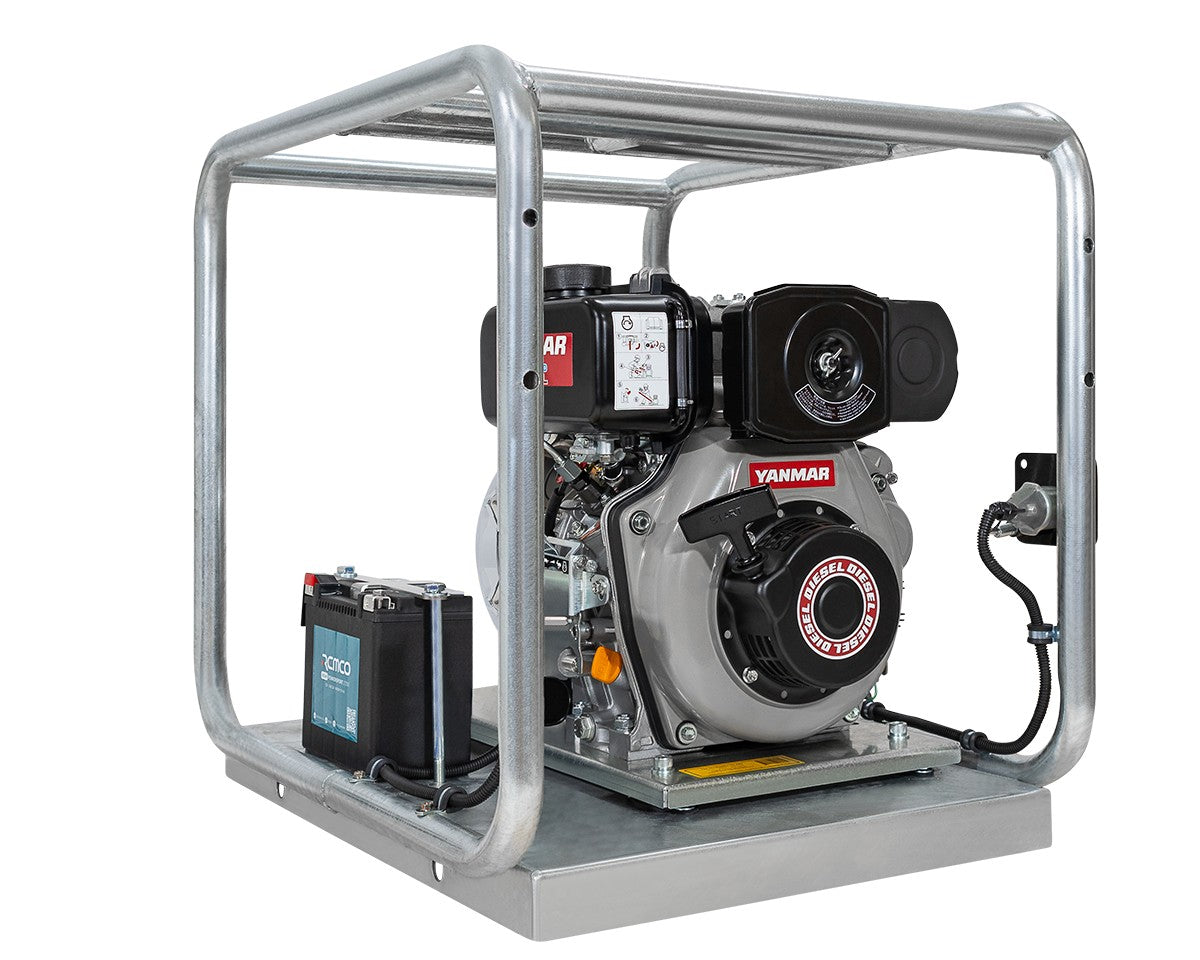

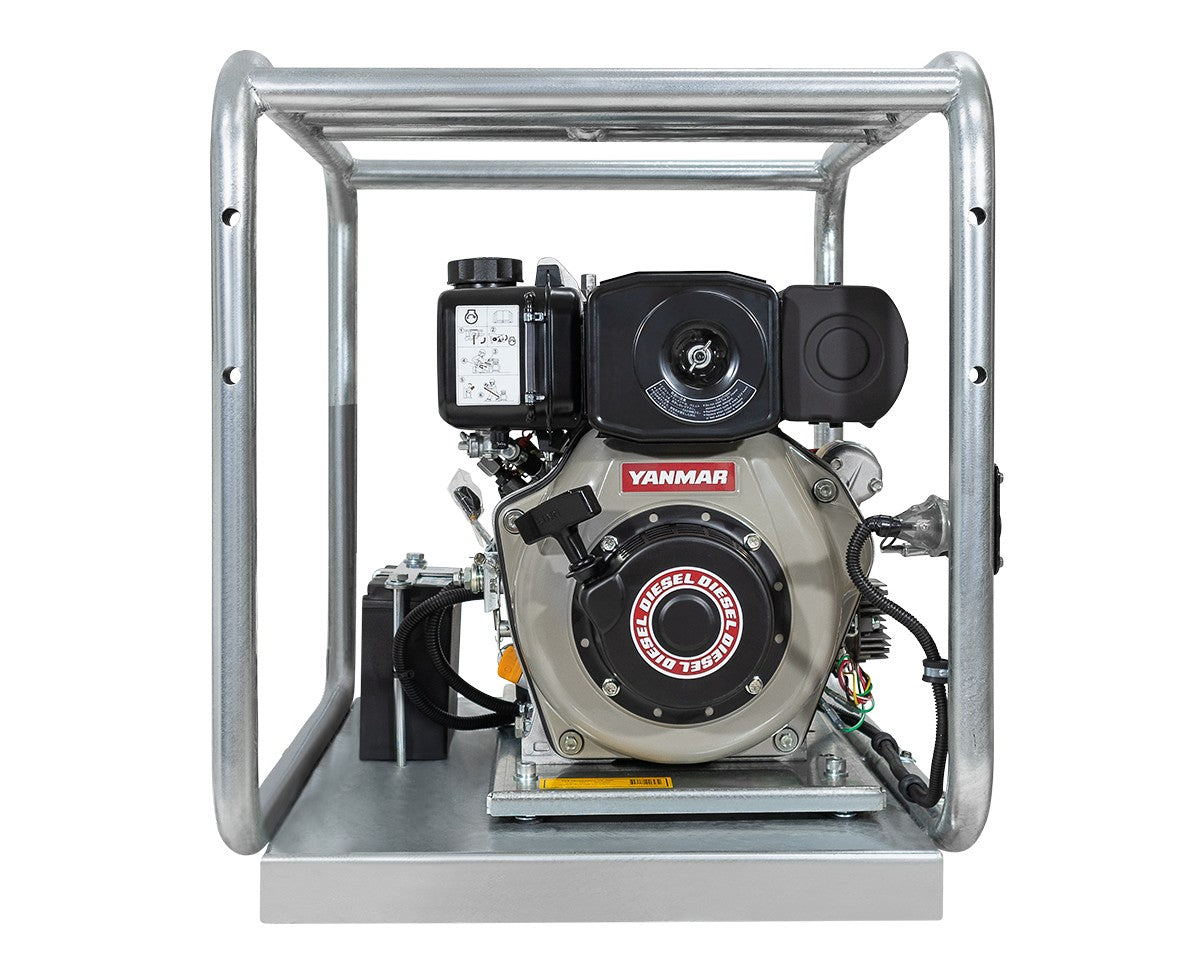

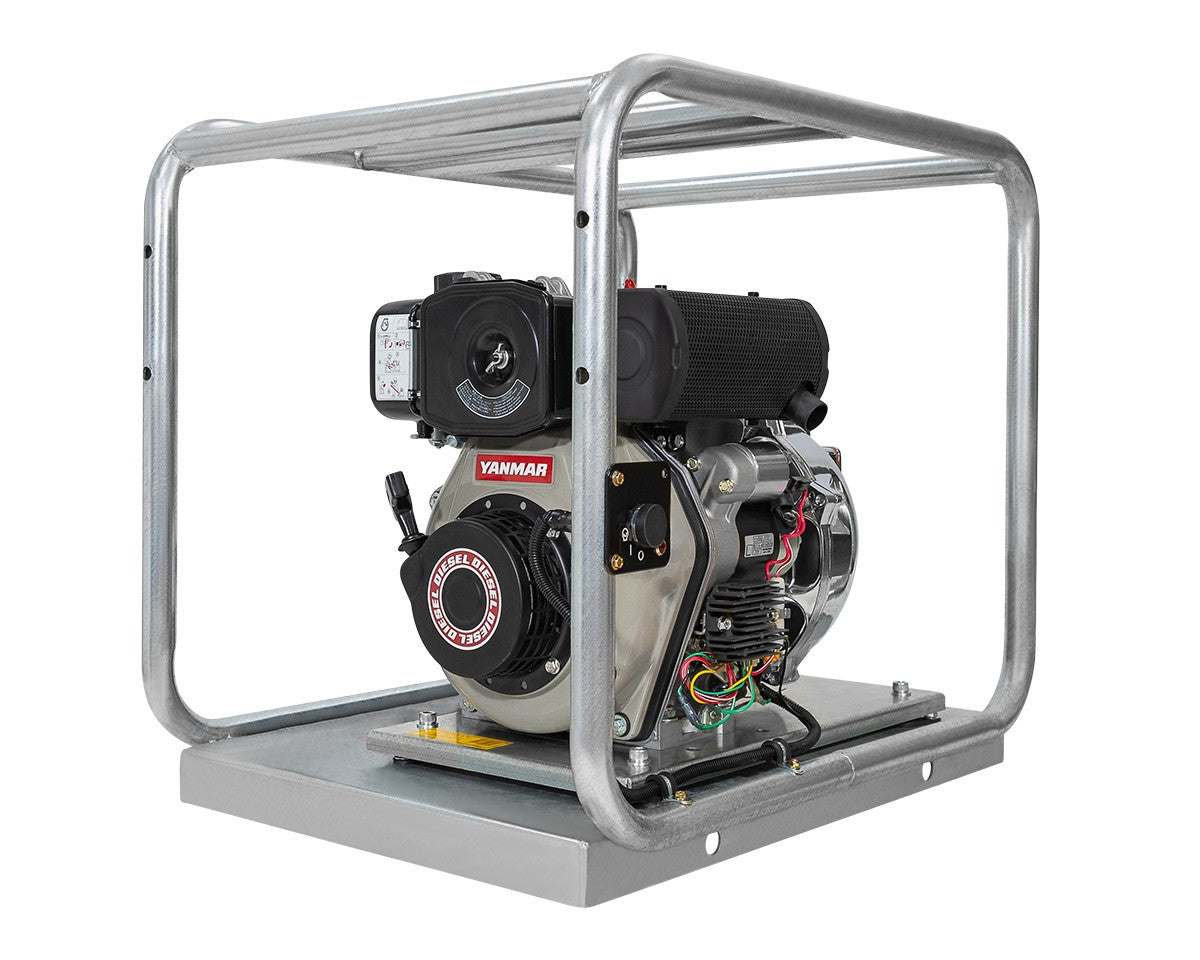

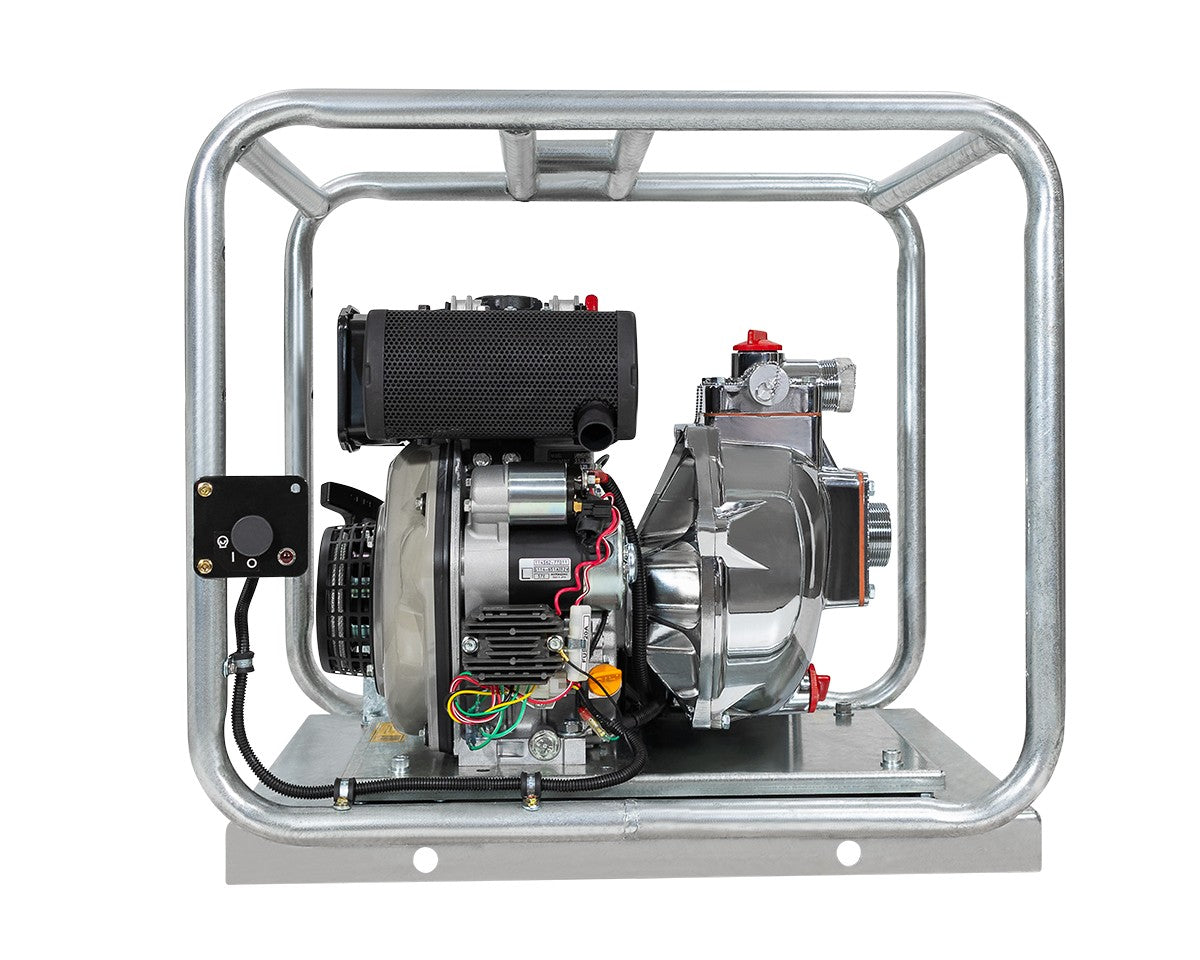

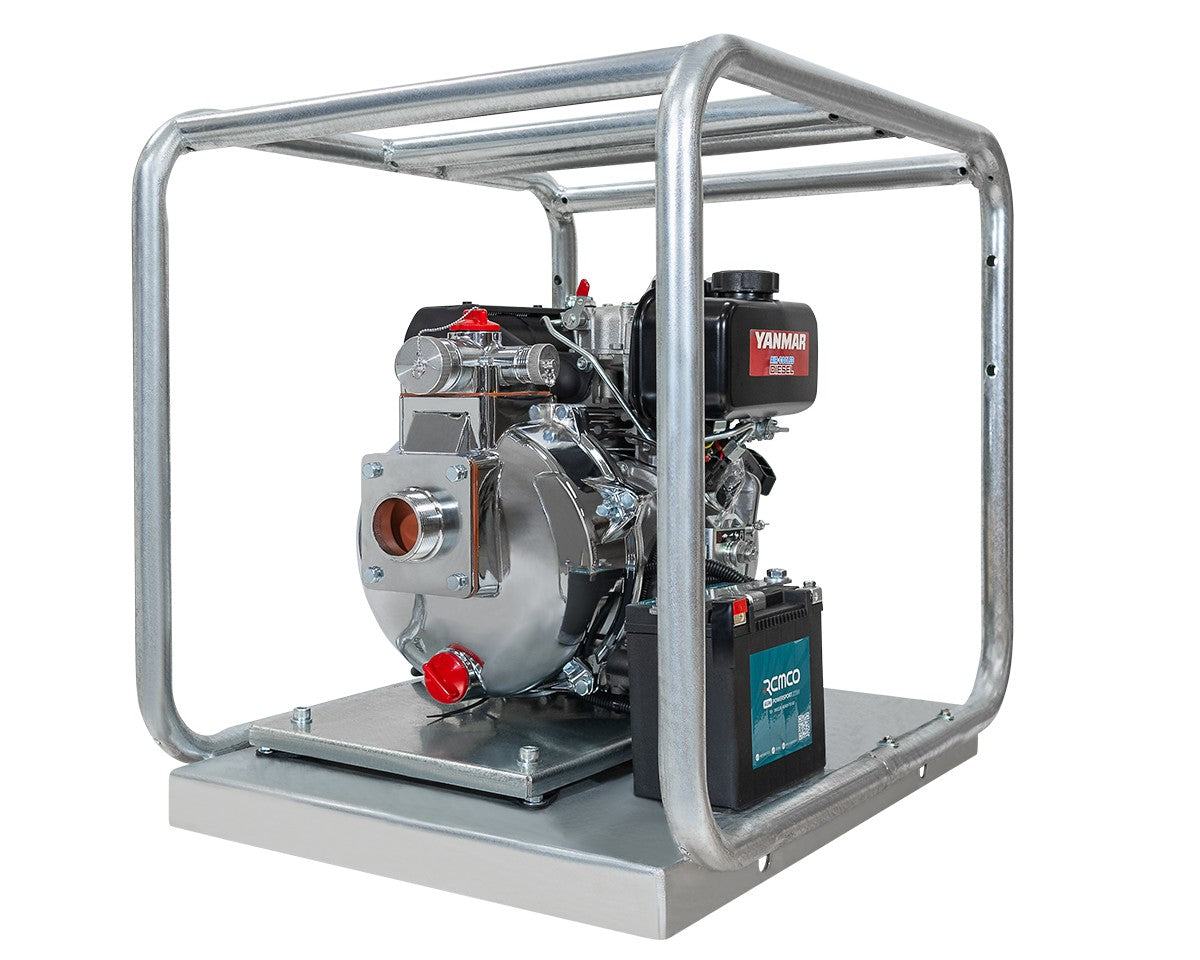

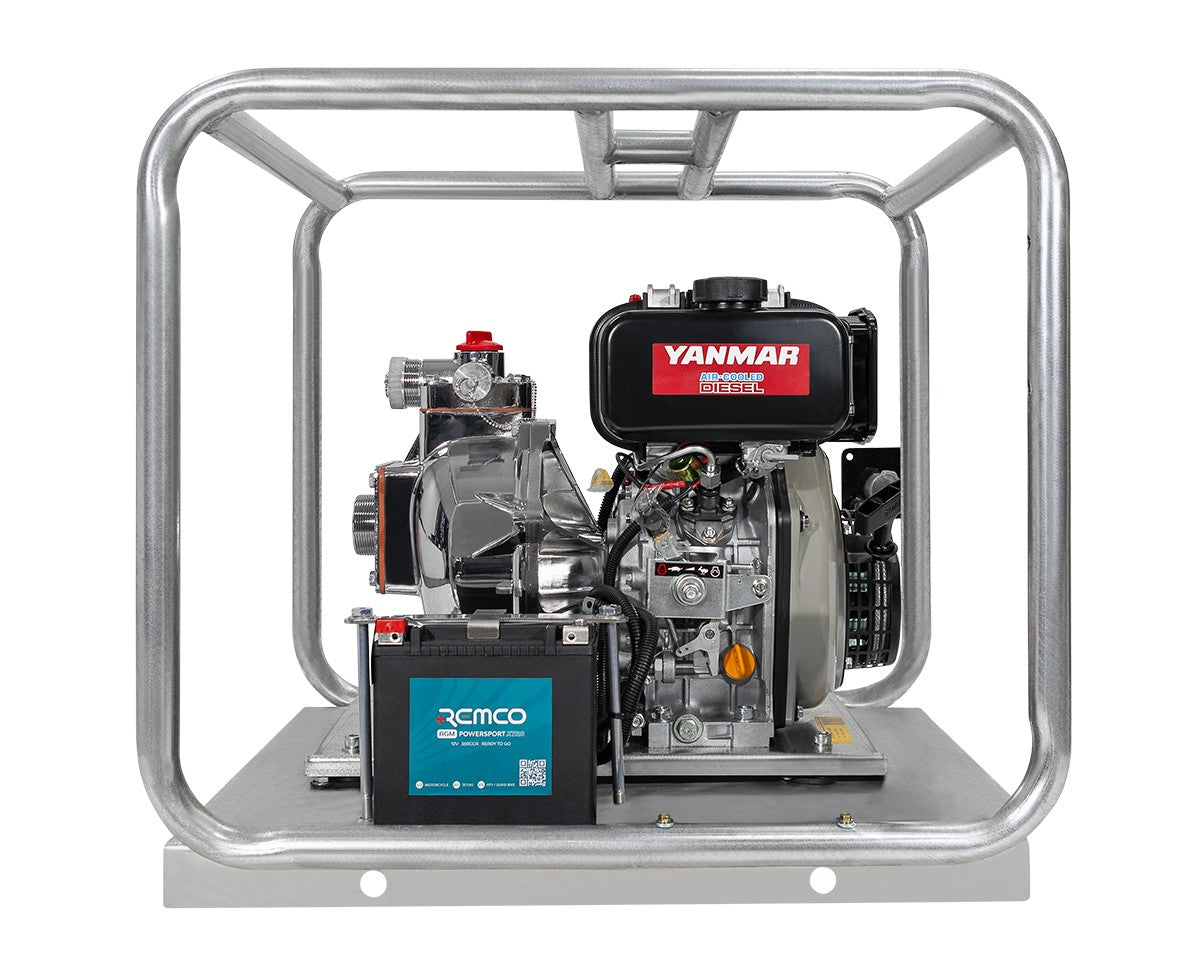

The HD20480-YEJMP is a 2 inch fire fighting pump moving up to 400 litres a minute, with a 60 m head. It runs a Yanmar L48 4.8 hp engine.
Manufacturer specifications
Features
- Fire Commander Diesel Fire Pump
- The top choice for professionals requiring reliable & best performance for hours on end.
- BE’s super high-pressure Fire Commander pumps are available with diesel drive making them safer to use for fire duties as diesel is less flammable than petrol.
- These pumps are designed with extraordinary performance, quality components, and ease of service. BE is the choice of farmers and professional firefighting authorities around the world.
- 3-year warranty
- Fast self-priming from 7.6m
- Replaceable suction and discharge port-making servicing the check valve easy
- Single-piece, heavy-duty enclosed impeller
- Replaceable three-way outlet
- Replaceable big 2-inch inlet plus 1.5-inch reducer included
- Big belly body with larger water passages means more water efficiency, lower fuel costs
- Three-way outlet has top quality caps with metal chains
- Big integrated priming and drain port
- Free battery pack with electric start versions
Applications
- Fire fighting, mop up & general fire protection
- High-pressure water transfer
- Spray irrigation
- Diesel fuel transfer with Viton seals fitted
- High-pressure spraying
- Sheep jetting
- Boom spraying
- Stock crate wash down
- Machinery wash down
Performance
- Flow: 400 L/min
- Head: 60 m
- Suction: 7 m
Pump
- Type: Clean Water
- Inlet: 2"
- Outlet: 3 Way Tree with 2 x 1” and 1 x 1.5” BSP
- Impeller: Single
-
Material:
- Front Casing: Marine Grade Aluminium
- Volute: Marine Grade Aluminium
- Back Plate: Marine Grade Aluminium
- Mechanical Seal: Carbon/Ceramic
- Outlet: Marine Grade Aluminium
- Casing Bolts: Zinc Plated Steel
- Check Valve: Nitrile Rubber
- Prime & Drain Plug: Polycarbonate
- Priming & Drain Plug O rings: Nitrile Rubber (NBR)
- Finish: Chrome Aluminium
- Impeller: Marine Grade Aluminium, closed
- Seal: NBR Standard, add on Viton seal kit 125 85.572.586V
Unit & Frame
- Rugged heavy-duty galvanized frame with anti-vibration mounts
Engine
- Quality Yanmar L48 4.8 hp Diesel Engine
- Electric Start
- 2-year manufacturer warranty
At a glance
| Inlet | 2" BSP |
| Outlet | 1 x 1.5" BSP / 3-Way 2 x 1" |
| Impeller | Single |
| Flow - l/min. | 400 |
| Suction | 7.6 |
| Engine - HP | 4.8 |
| Engine - Brand | Yanmar |
| Engine - Model | L48 |
| Engine - Start | Electric |
| Pump - Body | Marine Grade Aluminium |
| Pump - Impeller | Marine Grade Aluminium |
| Fuel Tank | 2.4 |
| Seals | NBR |
