Description

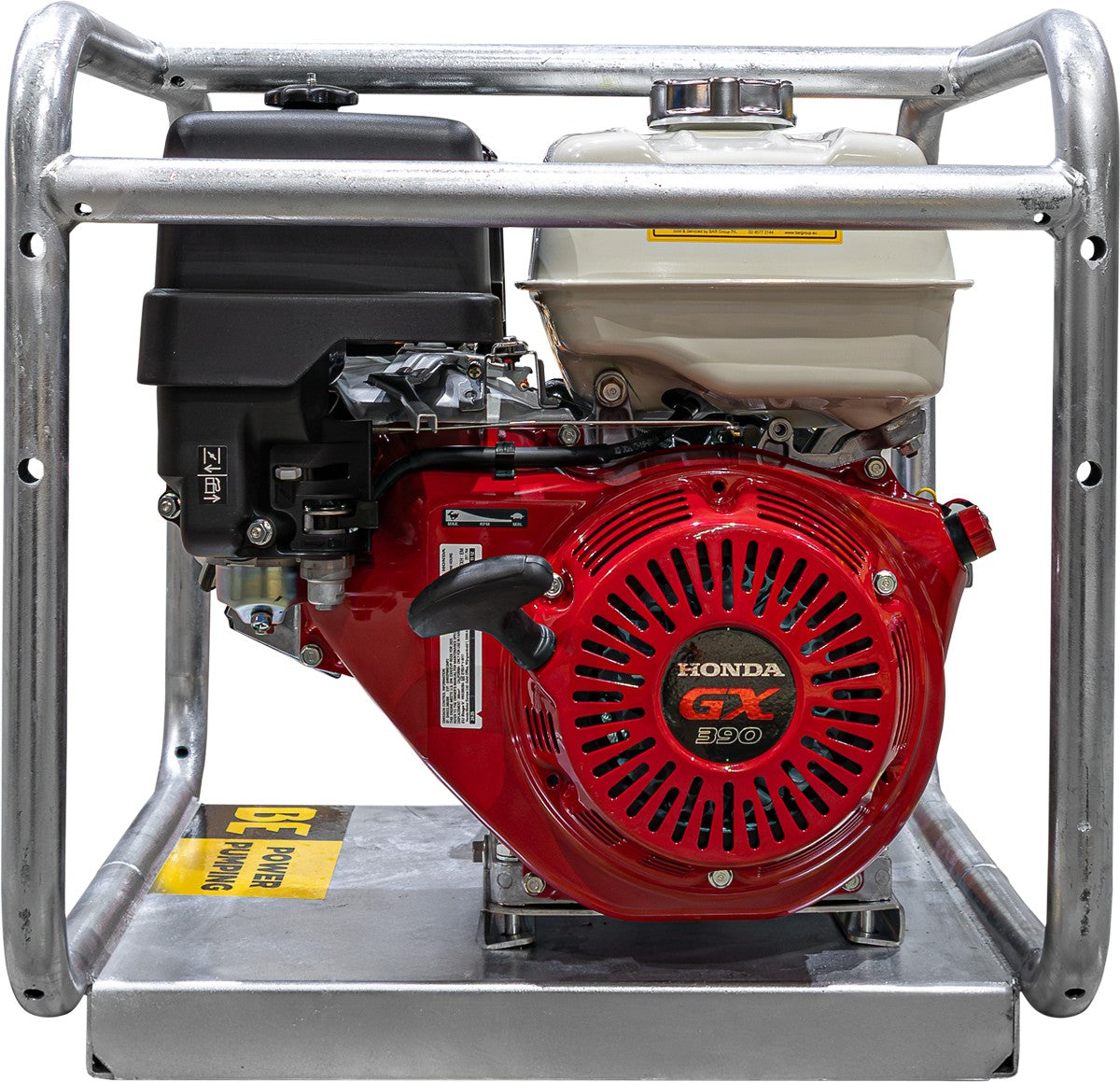

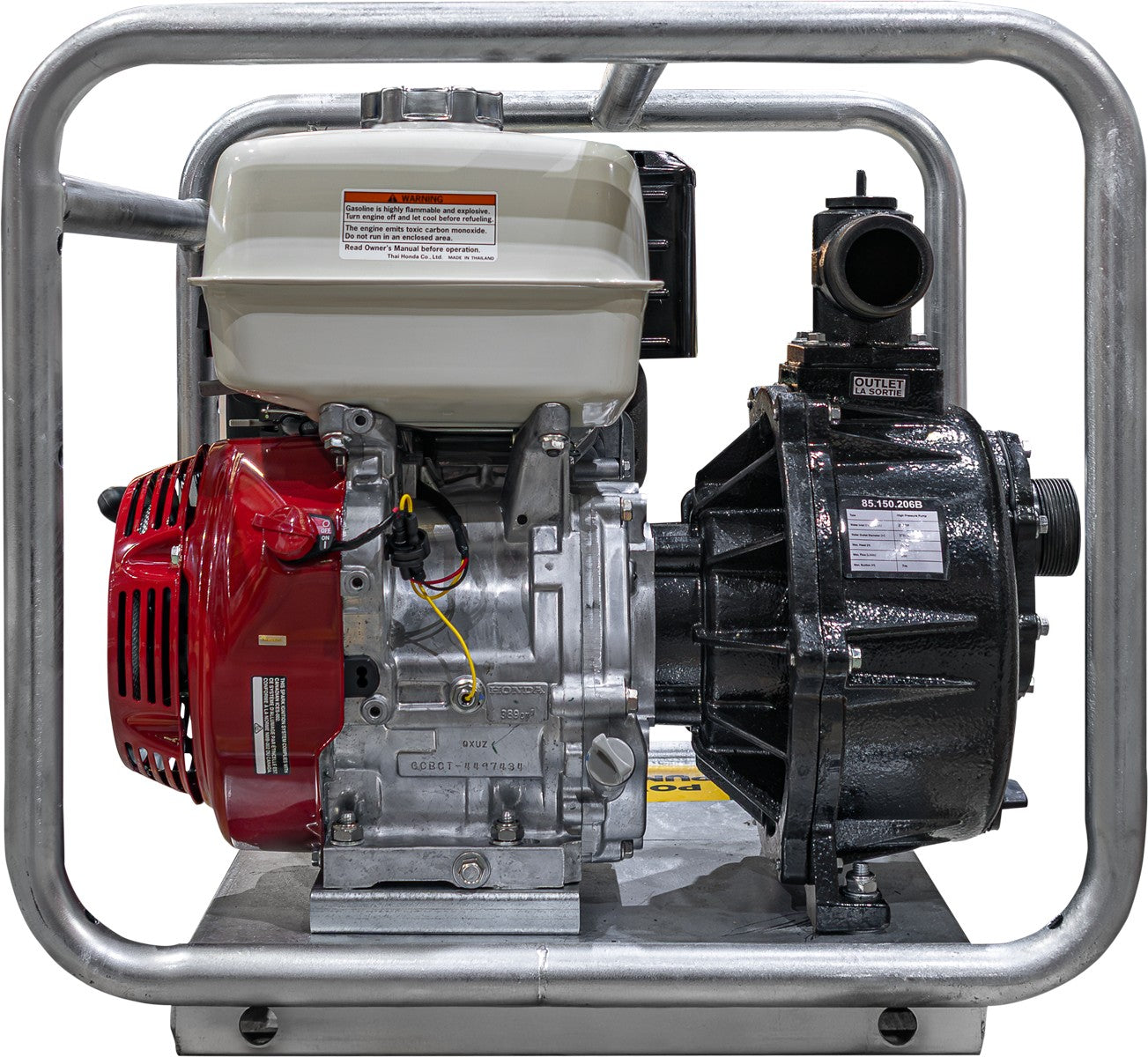

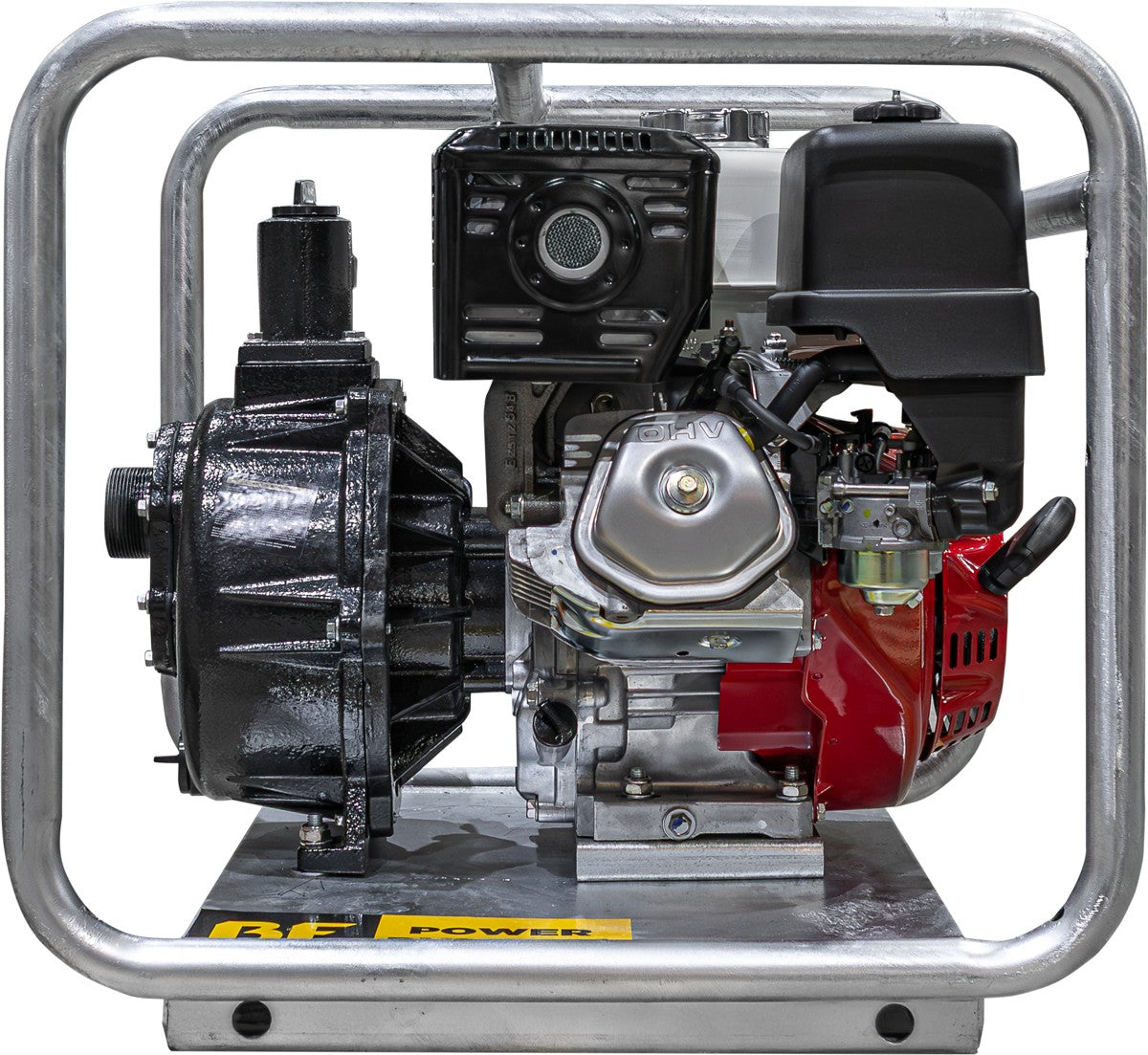

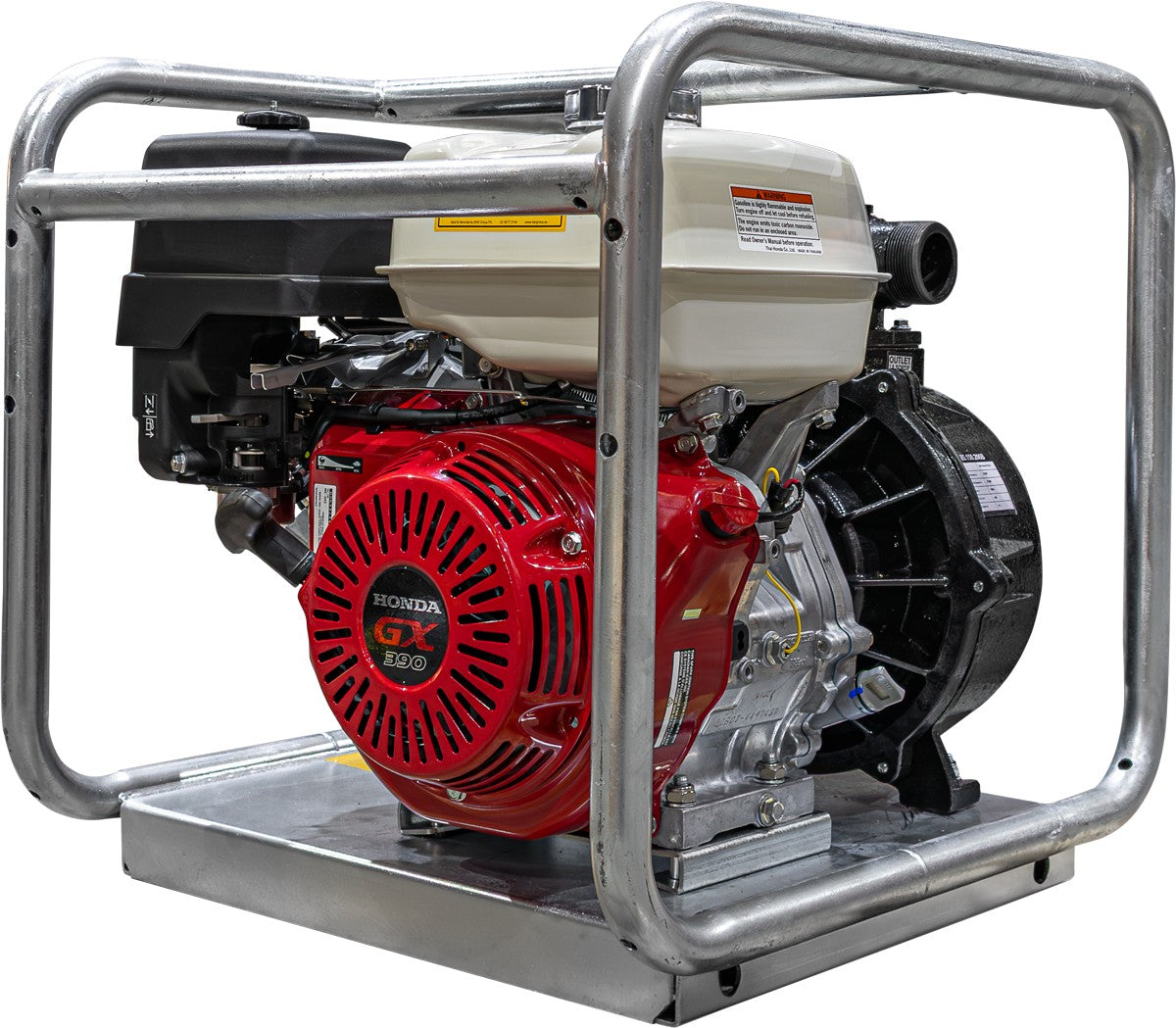

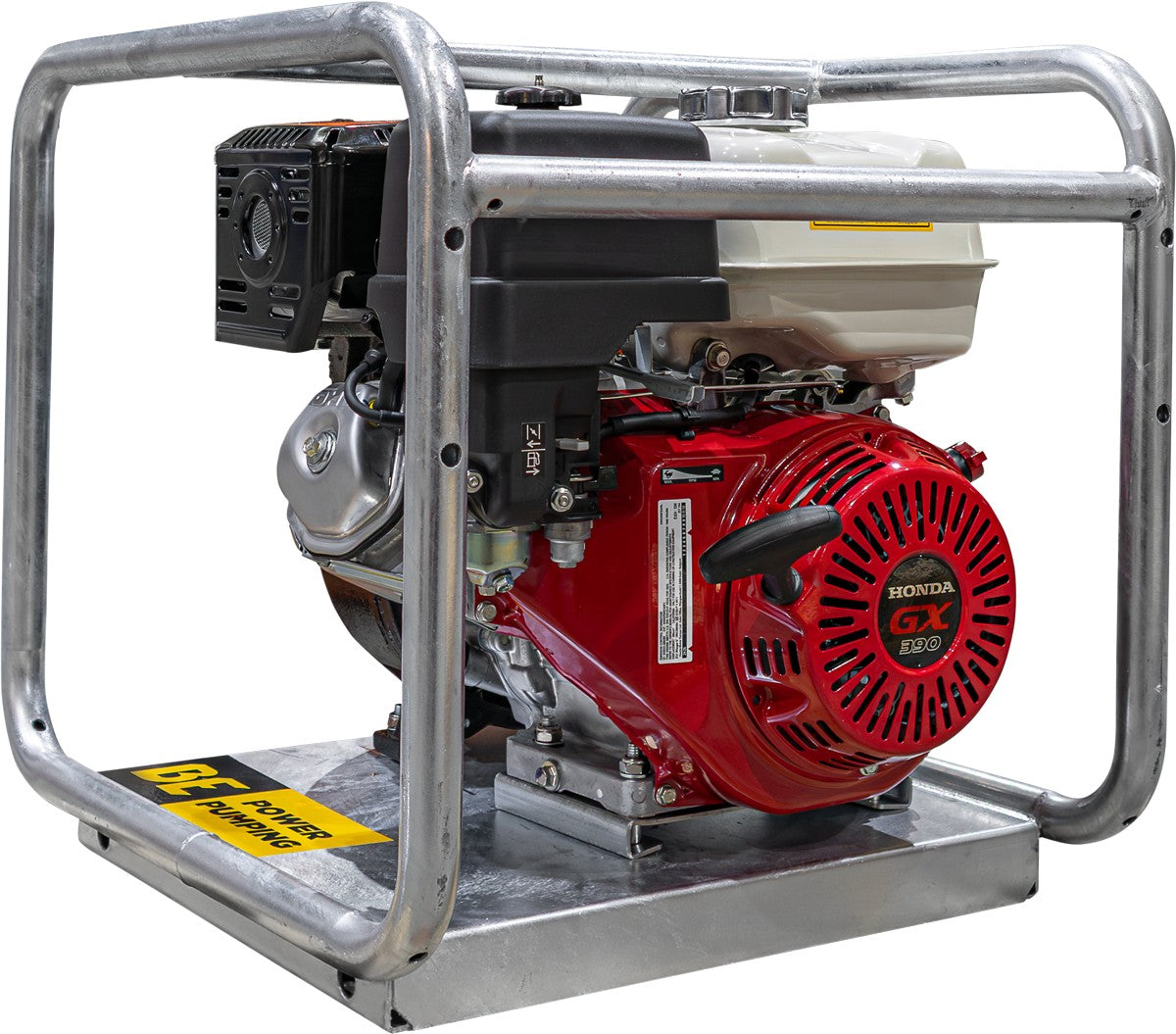

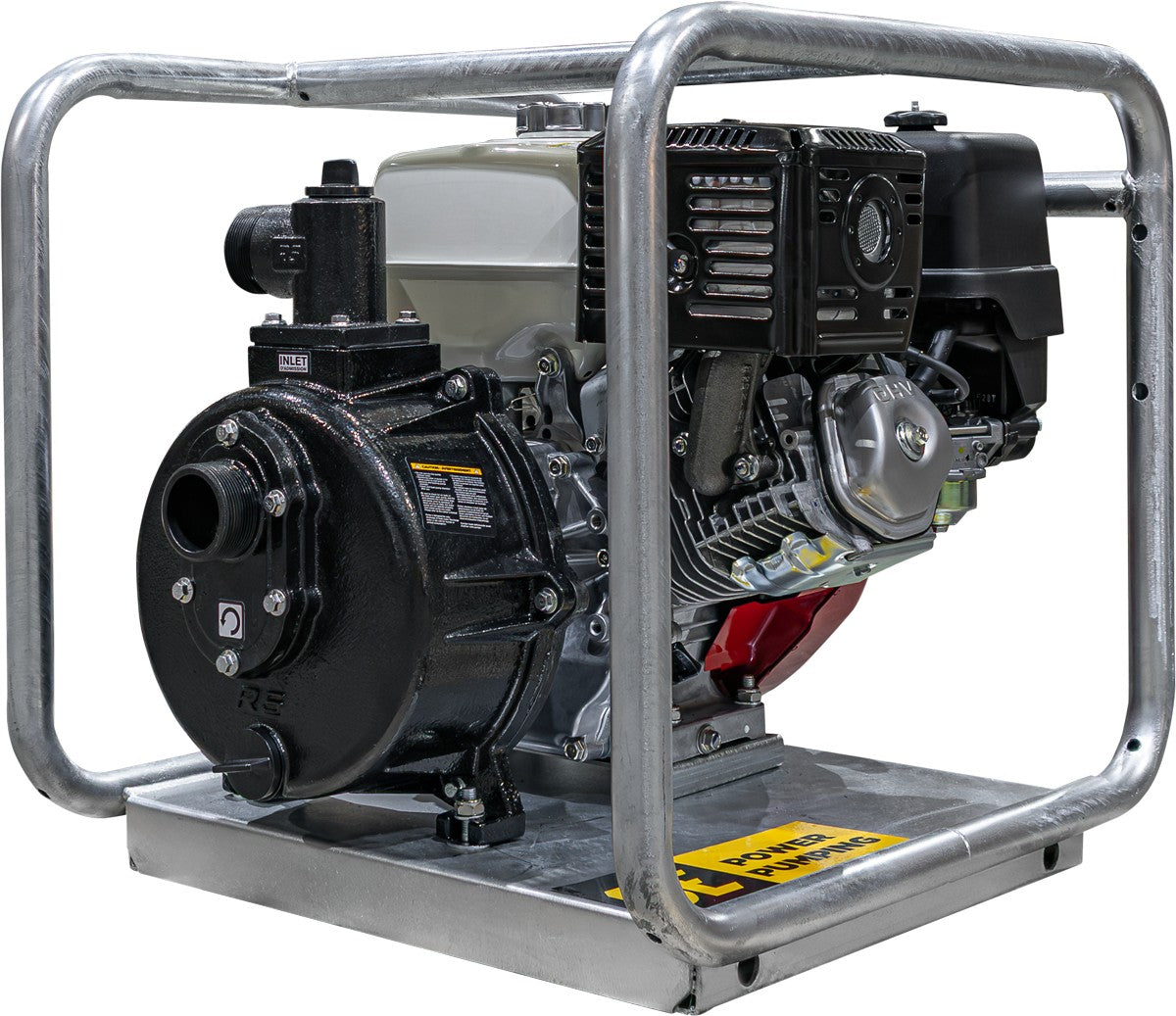

The HP20131-H is a 2 inch fire fighting pump moving up to 500 litres a minute, with a 100 m head. It runs a Honda GX390 13 hp engine.
Manufacturer specifications
The BE 124 HP20131 is a high pressure, high flow combination pump that will self prime to a maximum suction depth of 7 m. This tough cast iron pump can produce flows up to 500 L/min and a maximum head of 100 m. Unit is powered by Honda 13 HP petrol engine. Unit is mounted in robust roll frame and features a 2" inlet and outlet. Suitable for a wide variety of applications including long distance water transfer, firefighting, spray irrigation and machinery wash down.
Features
- Built in Australia applications include Long Distance Transfer, Firefighting and High pressure spraying.
- Big High Flow/High Head capability providing Super High performance.
- Super high performance
Performance
- Flow: 500 L/min
- Head: 100 m
- Suction: 7 m
Pump
- Type: Clean Water
- Inlet: 2" BSP
- Outlet: 2” BSP - Optional 3 Way Outlet Available
-
Material:
- Impeller: Cast alloy
- Pump Body: Cast alloy
- Volute: Cast iron
- Seal: NBR seals
Unit & Frame
- Robust roll frame
Engine
- Honda GX390 13 hp Petrol Engine
- Recoil Start, Electric Start Option - 124 HP20131-HE
- Air cooled 4-stroke OHV
- 6.1 L Fuel Tank
- Low Oil Alert
- Honda 3 Year Limited Warranty
At a glance
| Inlet | 2" BSP |
| Outlet | 2" BSP |
| Impeller | Single |
| Flow - l/min. | 500 |
| Head - m | 100 |
| Suction | 7 |
| Engine - HP | 13 |
| Engine - Brand | Honda |
| Engine - Model | GX390 |
| Engine - Start | Recoil |
| Pump - Body | Cast Iron |
| Pump - Impeller | Cast Iron |
| Fuel Tank | 6.1 |
| Seals | NBR |
