Description

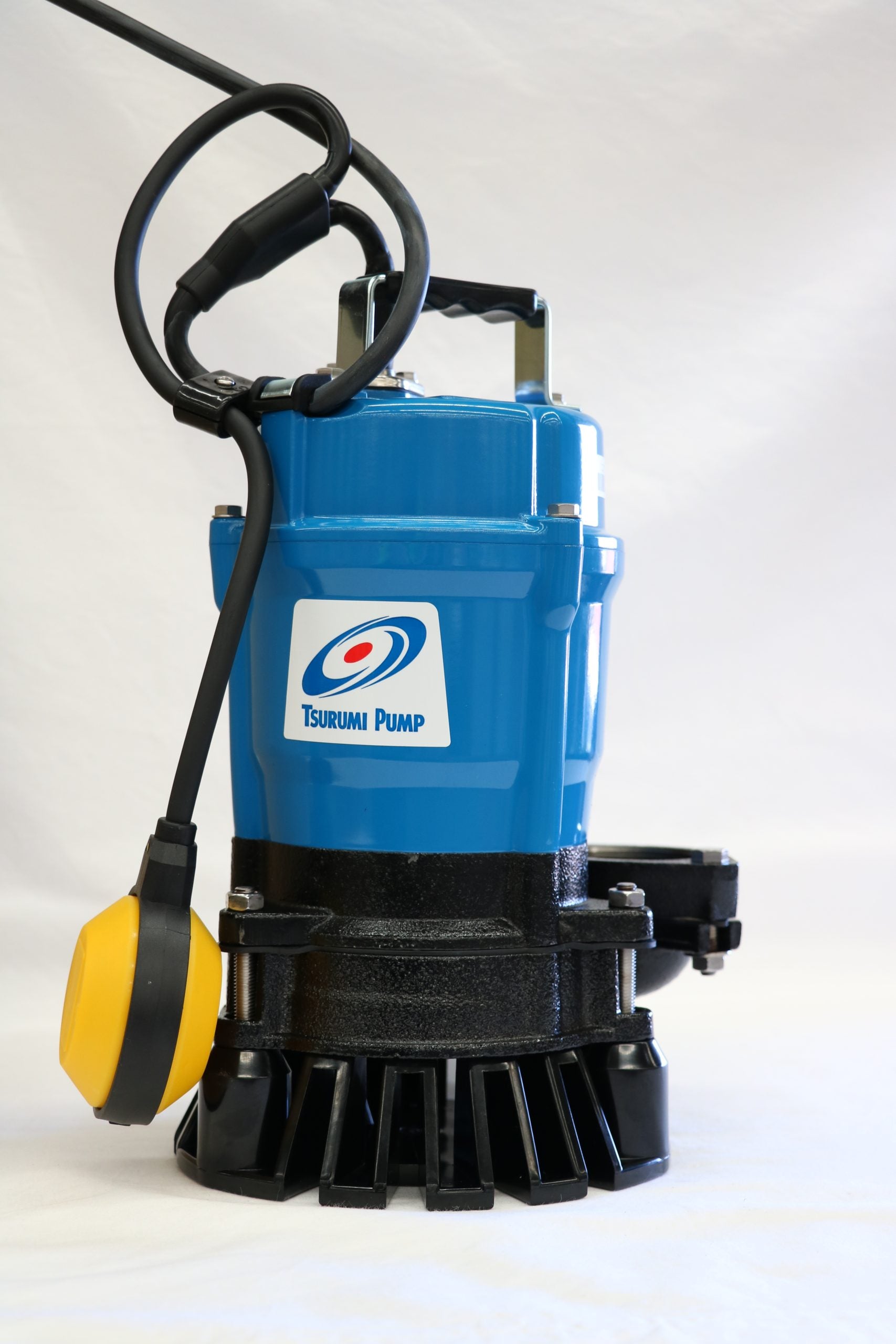

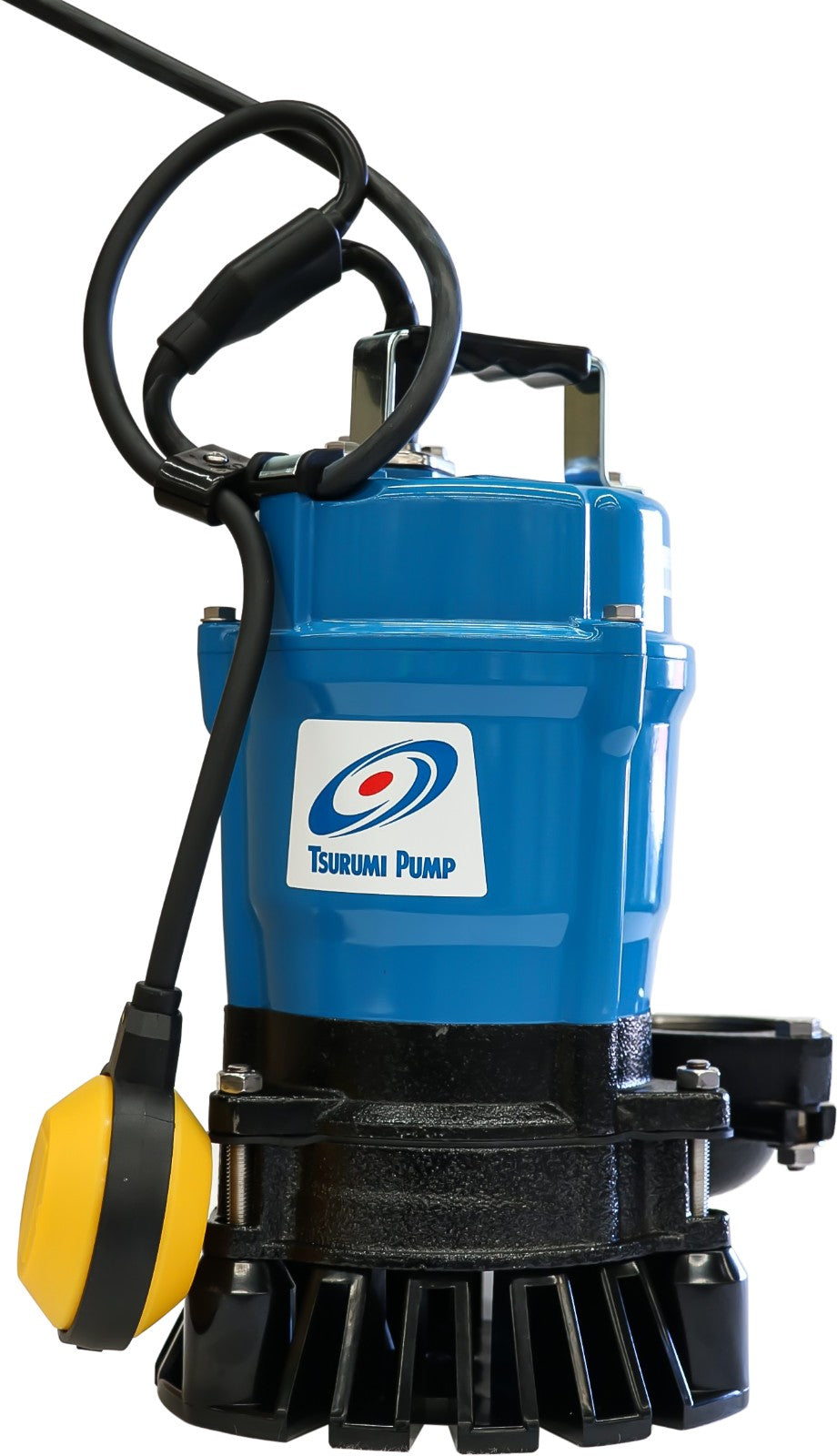

The HSZ2.4S is a submersible pump moving up to 200 litres a minute, with a 12 m Motor head. Electric drive.
Manufacturer specifications
HS & HSZ are single-phase pump units with the durability equivalent to three-phase drainage pumps since the wear parts are made of abrasion-resistant materials. The side discharge spiral design allows smoother passage of the sucked solid matter. The shaft-mounted agitator prevents “Air Lock” that tends to take place on vortex or semi-vortex pumps.
Features
- Automatic start/stop operation controlled by flow switch.
- Built in sintered alloy agitator to prevent air lock and stir slurry.
- Anti wicking cable offers maximum protection against water penetrating through the cable entry should the cable be damaged extending the life of your pump.
- Vortex impeller designed for “high gap structure” made of urethane rubber that permits solid handling to 7 mm.
- Thermal motor protector
- Semi-vortex impeller designed for “high gap structure” made of urethane rubber that permits solid handling to 7 mm.
- Dual mechanical seals with silcon carbide face provides 5 times higher corrosion wear and heat resistance than tungsten carbide.
- Designed to pump water containing sand, solids and debris with minimal wear and clogging.
- Built-in shaft-mounted agitator suspends solids.
- Urethane Semi Vortex Impeller for maximum durability and pump performance.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particles. (Optional Accessories)

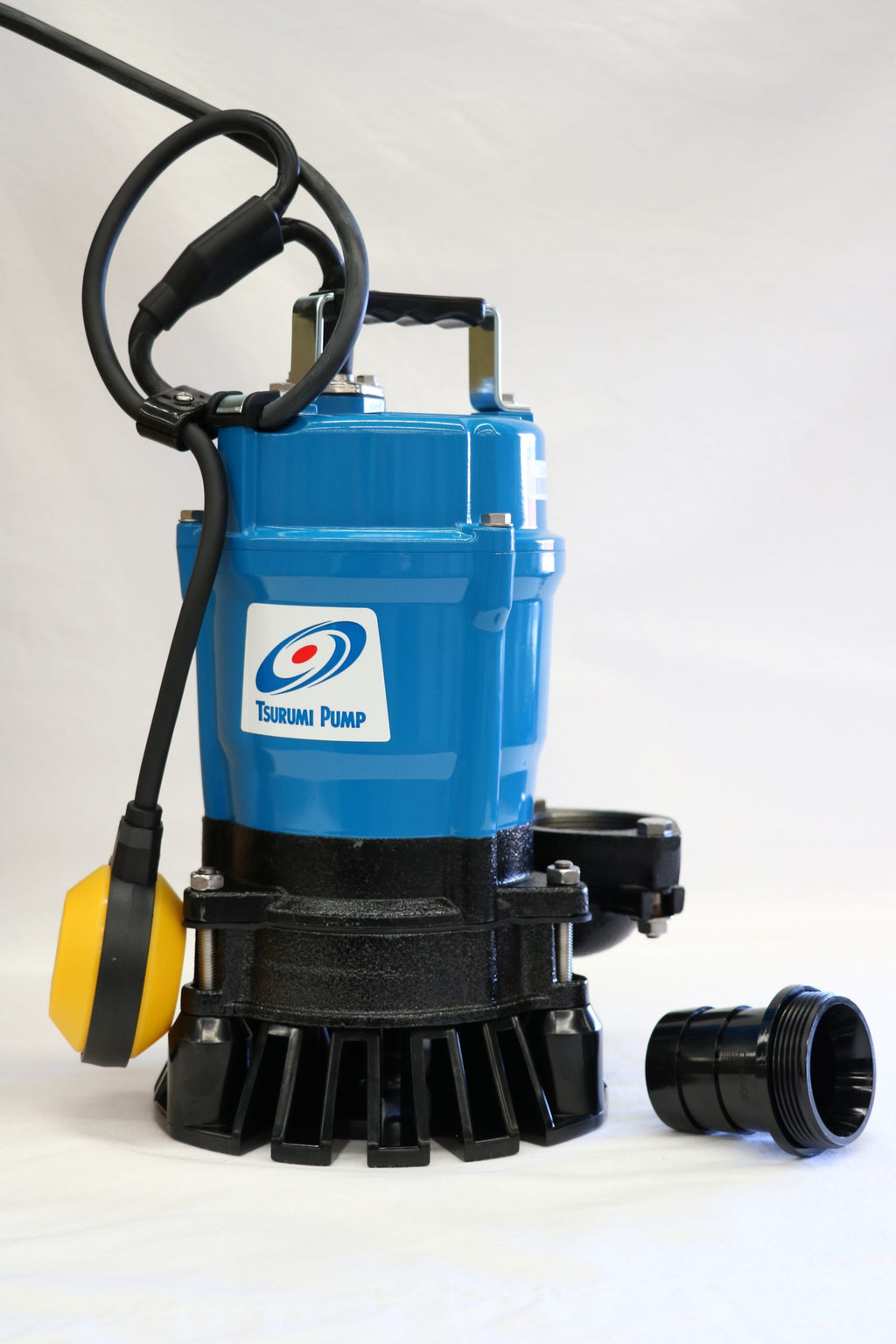

- Vertical Discharge Coupling Available to order (Part # 032-160-11)
- Angle 2-inch NPT Coupling Available to order (Part # 032-000-35)
- Straight 2-inch NPT Coupling Available to order (Part # 032-158-16)
Specifications
- Max Flow: 200 L/min
- Max Head: 12 m
- Motor Type: 240 V – 0.4 kW
- Motor Output: 1/2 hp
- Phase: Single
- Discharge Bore: 2″
- Cable Length: 10 m
- Dimension: 241 mm L x 184 mm W x 328 mm H
- Continuous Running Water Level: 8.89 cm
- Pump Weight: 11.3 kg
- Starting Method: Capacitor run
Manuals and parts
