Description

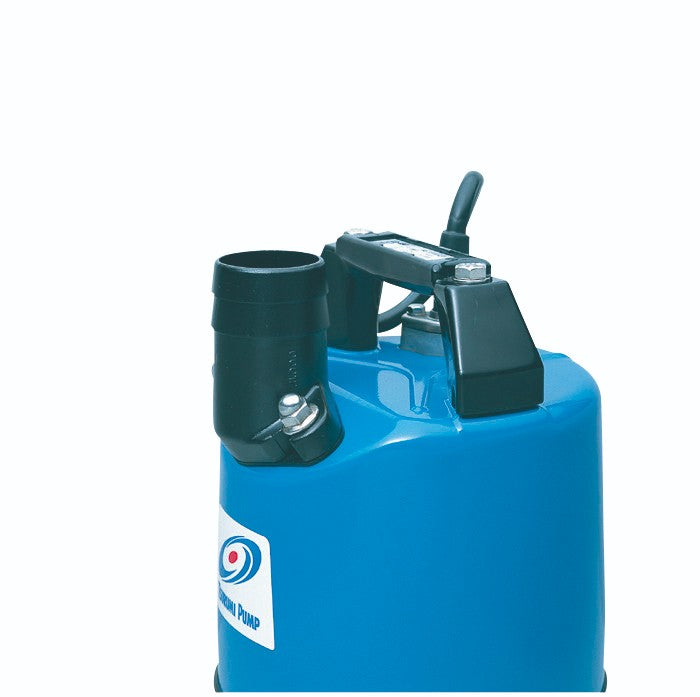

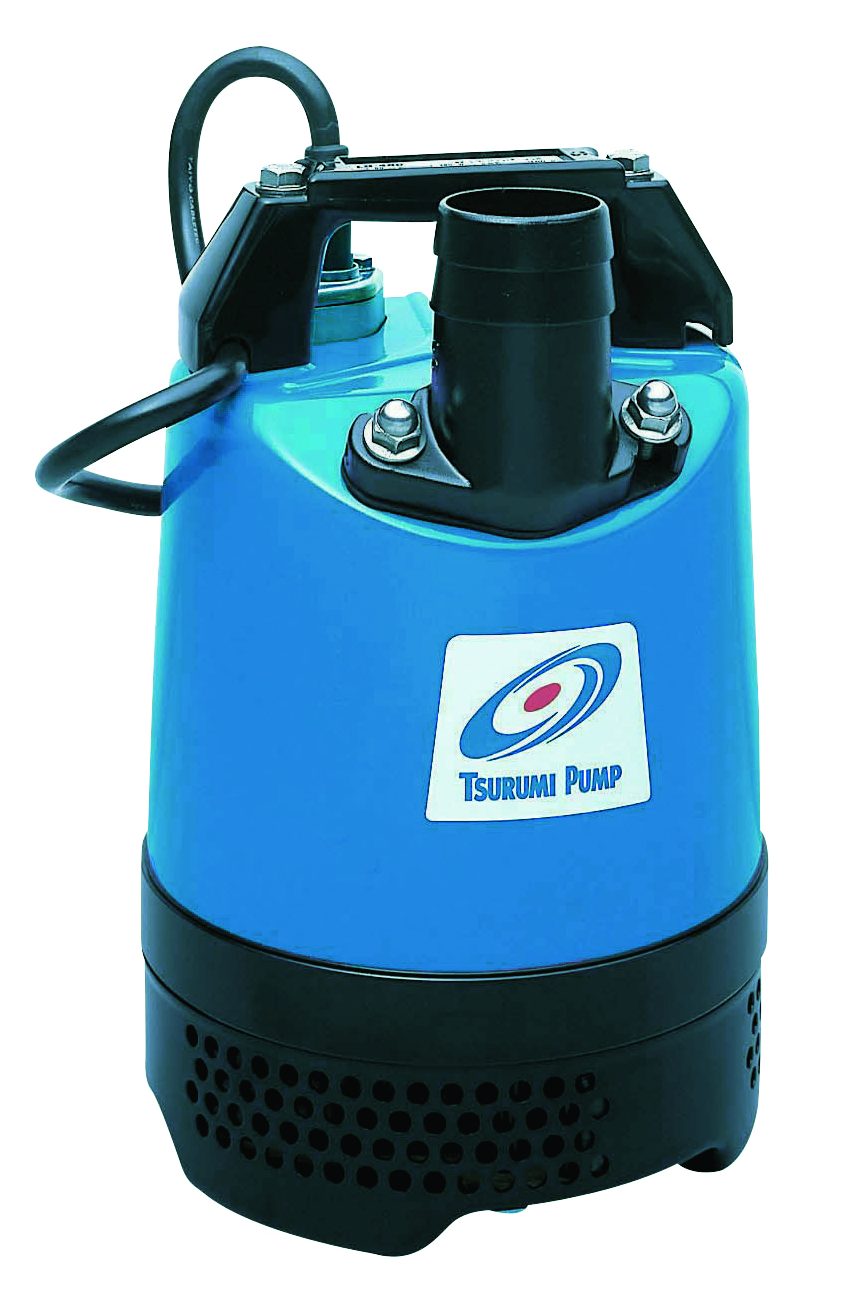

The LB-480 is a 2 inch submersible pump moving up to 250 litres a minute, with a 11 m Motor head. Electric drive.
Manufacturer specifications
The LB/LB-A series are submersible single-phase portable drainage pumps. The discharge direction is selectable between vertical and inclined to prevent the folding or bending of the discharge hose. Every LB-series is slim design enough to be accommodated in an 8-inch pipe. The LB-A series with an innovative electrode-type relay unit automatically starts and stops the pump to eliminate dry-running.
Features
- Anti wicking cable offers maximum protection against water penetrating through the cable entry should the cable be damaged extending the life of your pump.
- 50 mm discharge direction that is selectable between vertical or inclined.
- Thermal motor protector.
- LB-480 Slimline design pump allows it to fit into 8" pipes.
- Powerful pumps built with durable materials in an easy-handling design.
- Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability.
- Urethane, Semi Vortex Impeller and Wear Plates for maximum durability and maintaining pump performance.

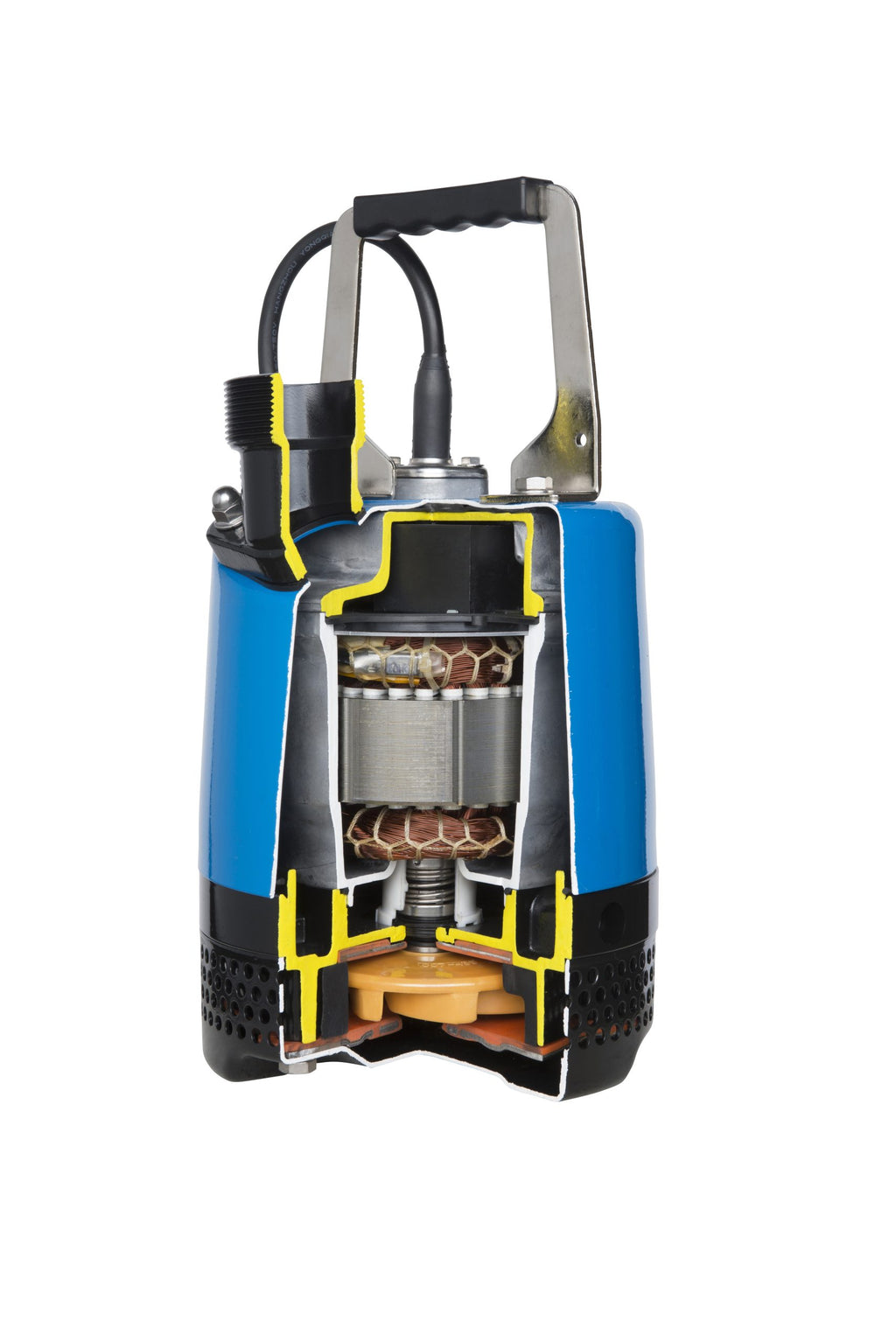

- Dual Inside Mechanical Seal With SiC faces provides 5 times higher corrosion wear and heat resistance than tungsten carbide.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particles. (Optional Accessories)
- TS-301 Float Switch for automatic operation.
Specifications
- Max Flow: 250 L/min
- Max Head: 11 m
- Motor Type: 240 V - 0.48 kW
- Motor Output: 2/3 hp
- Phase: Single
- Discharge Bore: 2"
- Cable Length: 10 m
- Dimension: 189 mm W x 286 mm Height
- Continuous Running Water Level: 5.08 cm
- Pump Weight: 10.4 kg
- Starting Method: Capacitor run
Manuals and parts
