Description

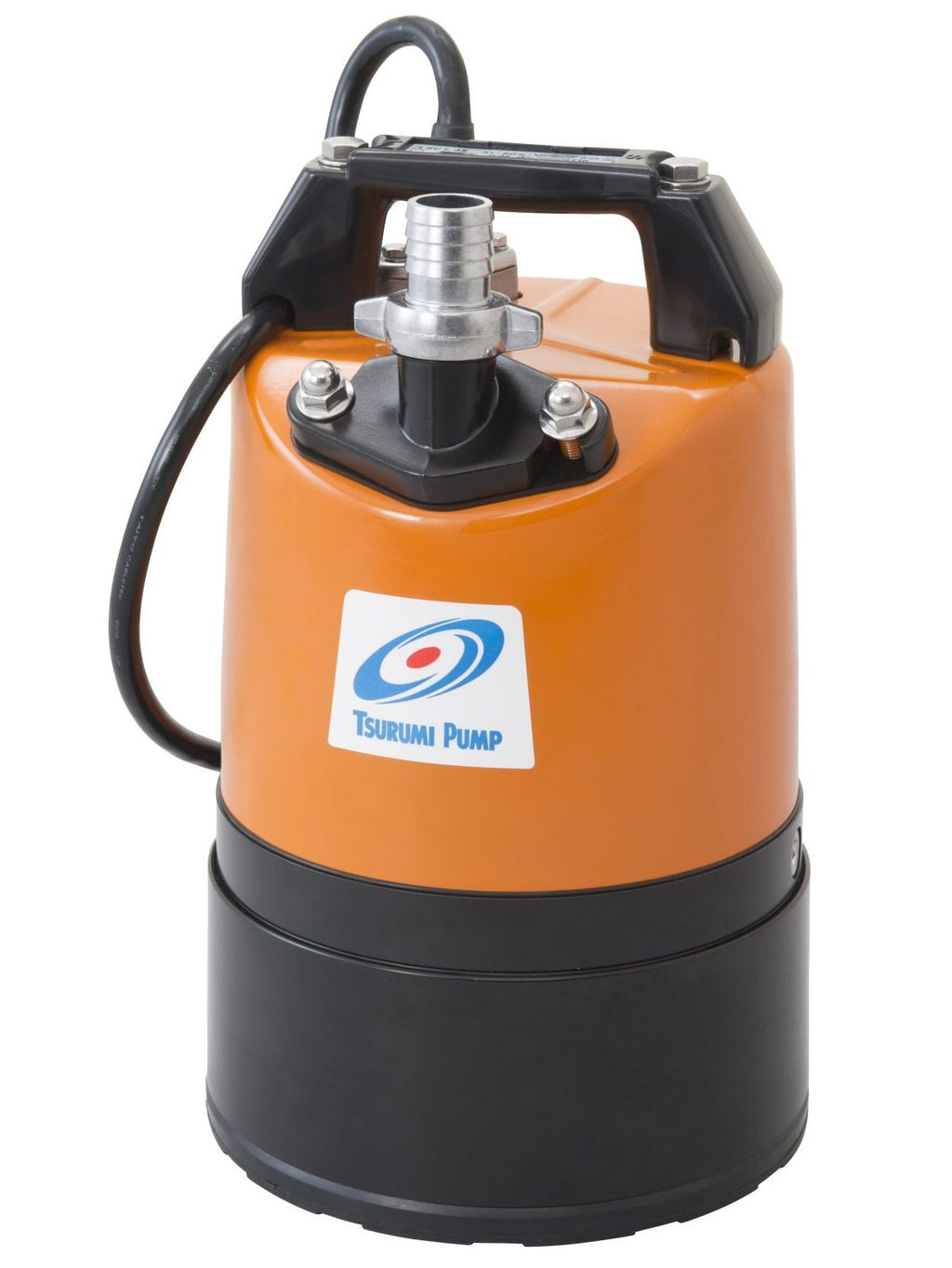

The LSC1.4S is a submersible pump moving up to 175 litres a minute, with a 11 m Motor head. Electric drive.
Manufacturer specifications

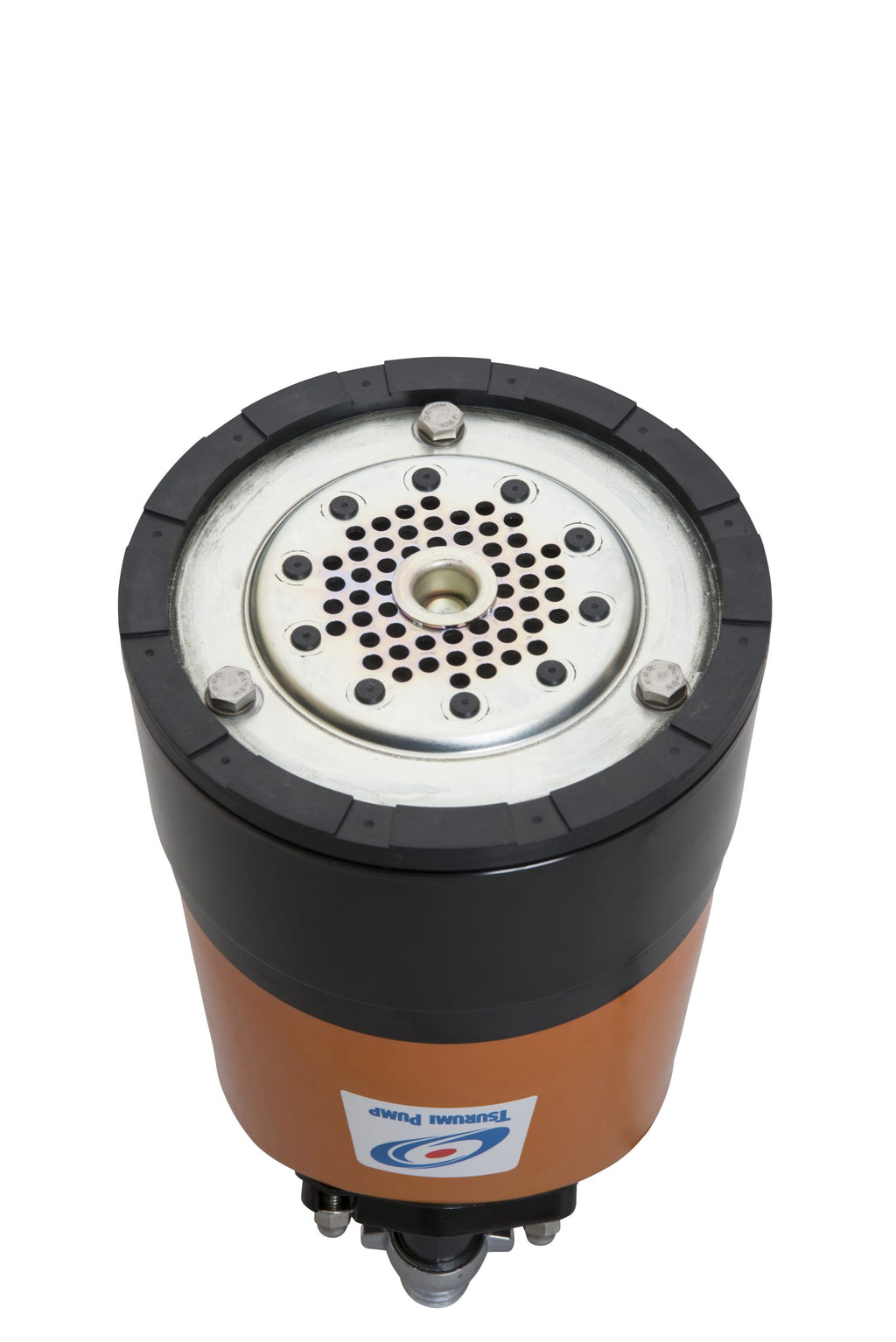

The LSC pump is a submersible single-phase portable residue drainage pump. The specially designed bottom plate enables the pump to drain down to a 1 mm water level. It has a swing check valve that prevents the reverse flow of the sucked water when the pump stops its operation. The rubber stand protects the floor surface from scratching. The discharge direction is selectable between vertical and inclined to prevent the folding or bending of the discharge hose.
Features
- Specially designed bottom plate enables the pump to drain down to 1 mm.
- Rubber stand protection prevents floor surface scratching.
- Anti wicking cable offers maximum protection against water penetrating through the cable entry should the cable be damaged extending the life of your pump.
- Thermal motor protector
- Discharge direction is selectable between vertical and inclined which prevents folding or bending of the discharge hose.
- Dual mechanical seals with silcon carbide face provides 5 times higher corrosion wear and heat resistance than tungsten carbide.
- Original residue dewatering pump; able to pump down to the floor, even the smallest puddle can be pumped dry.
- LSC drainage pump is the best for complete drainage of flat surfaces where a sump is not available.
- Prime pump through discharge outlet for start-up at any water level.
- Internal check valve holds the prime and prohibits back flow through pump when stopped.
- Urethane, Semi Vortex Impeller and Wear Plates for maximum durability and maintaining pump performance.
- Oil Lifter provides lubrication of the seal faces.
- V-Ring Seal design protects mechanical seal from abrasive particles.
Specifications
- Max Flow: 175 L/min
- Max Head: 11 m
- Motor Type: 240 V – 0.48 kW
- Motor Output: 2/3 hp
- Phase: Single
- Discharge Bore: 1″
- Cable Length: 10 m
- Dimension: 196 mm W x 316 mm H
- Continuous Running Water Level: 0.10 cm
- Pump Weight: 16.5 kg
- Starting Method: Capacitor run
Manuals and parts
