Description

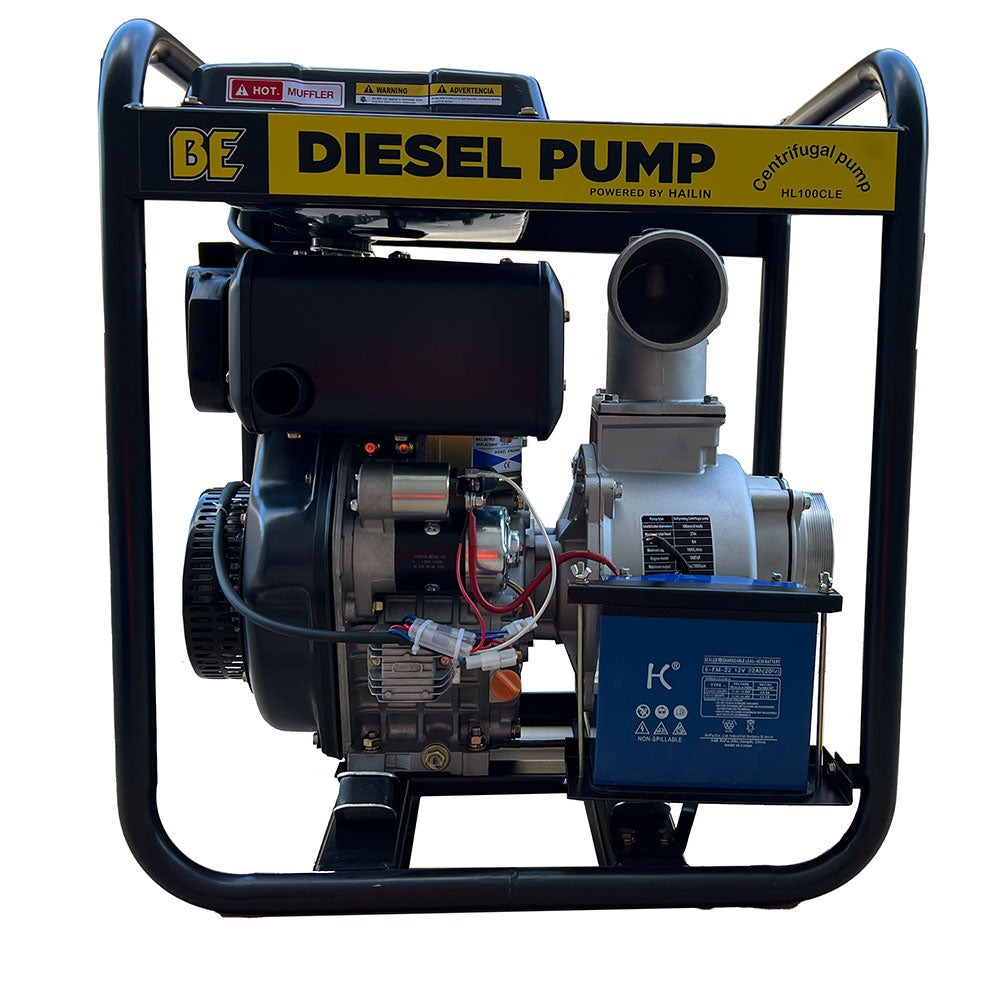

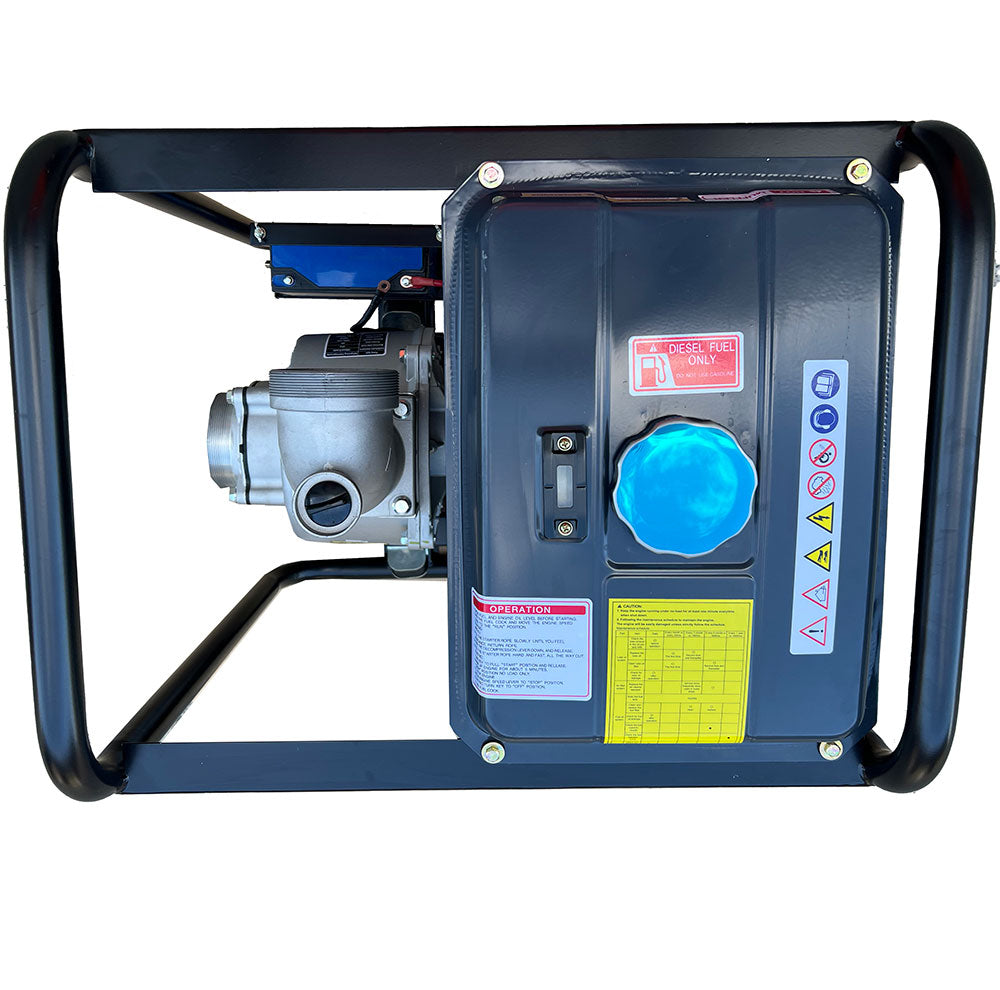

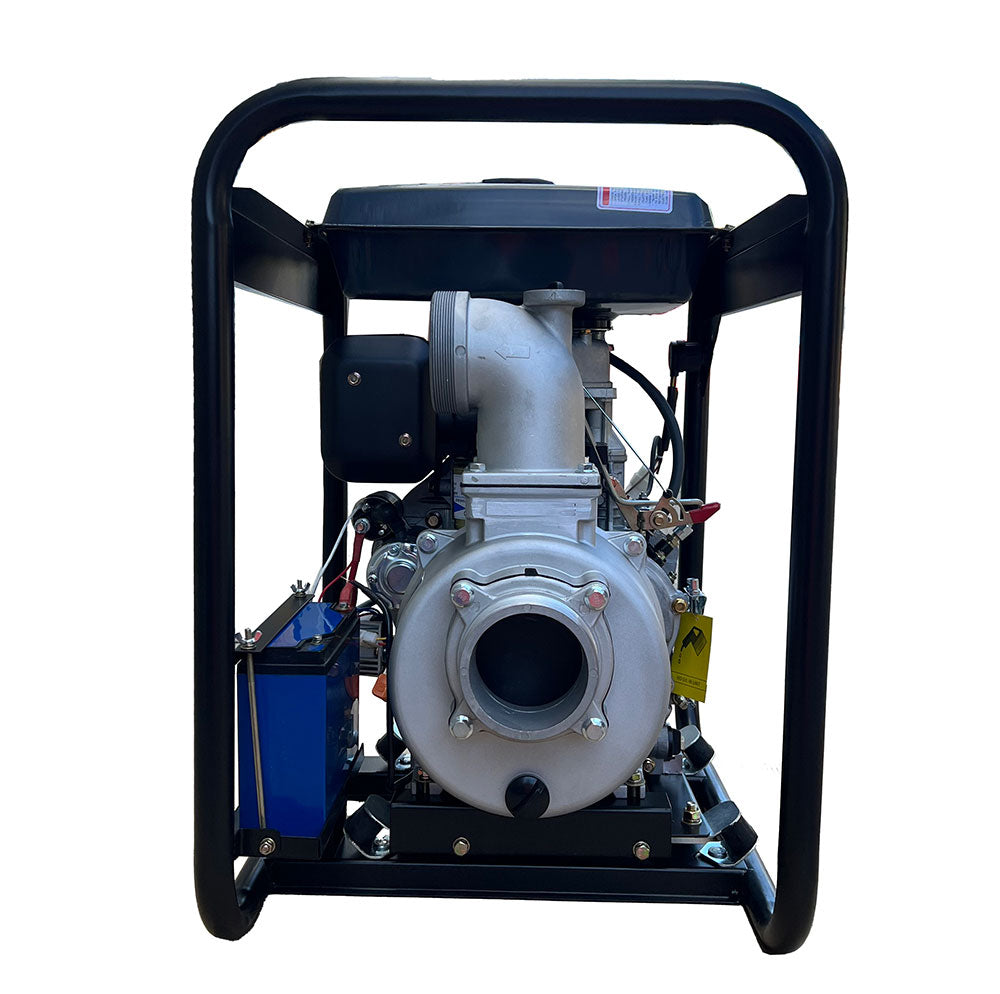

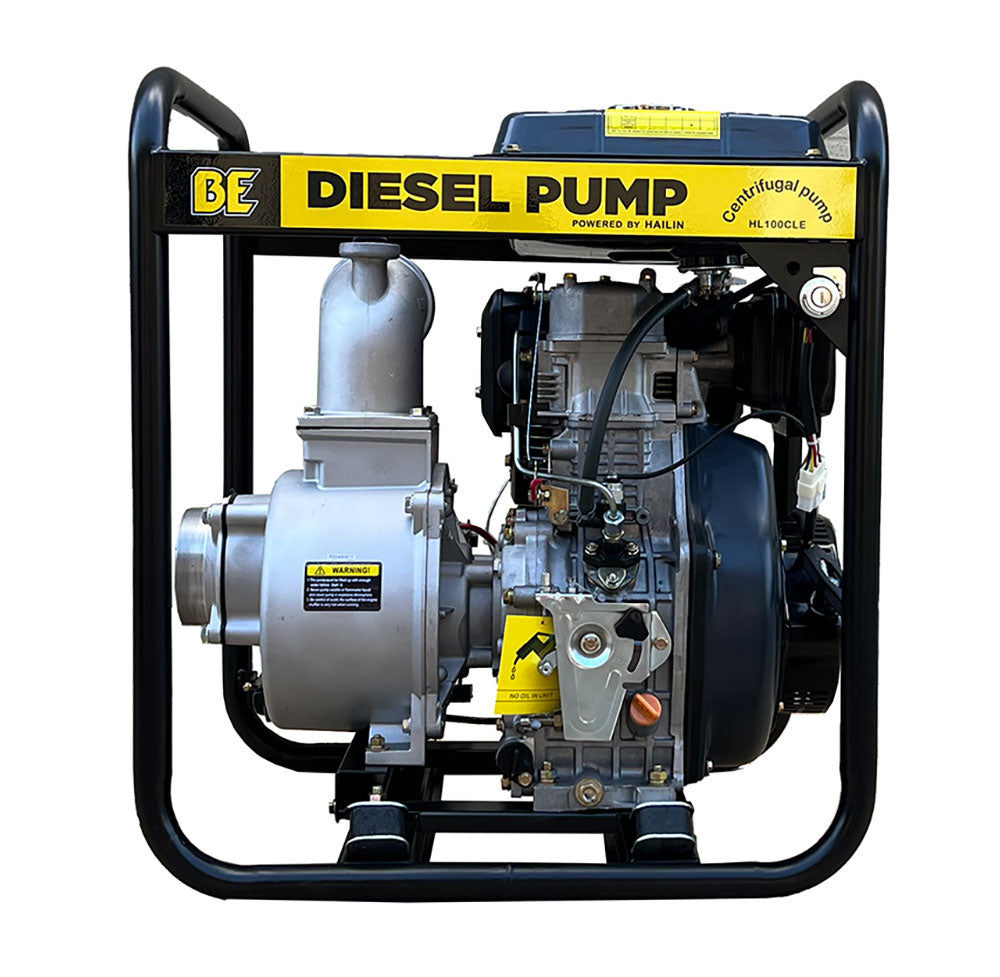

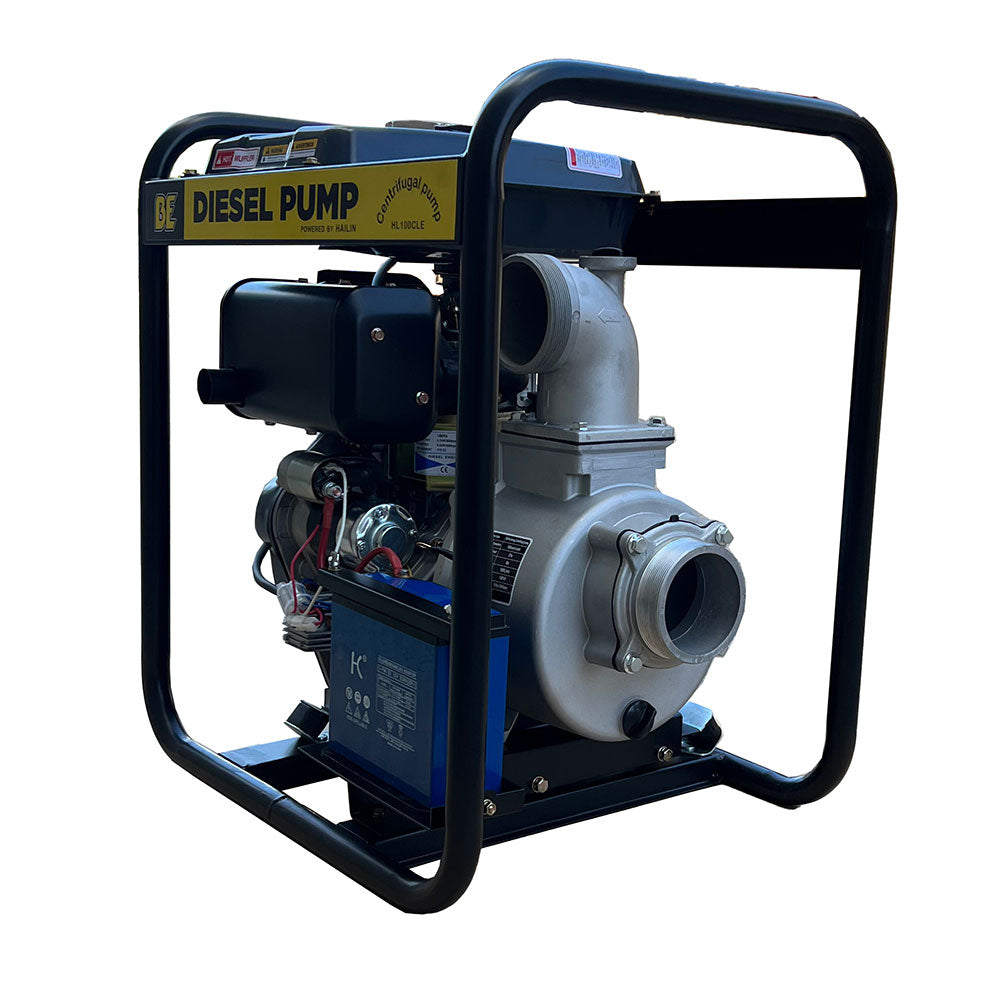

The WD4010-RE is a 4 inch water transfer pump moving up to 1,600 litres a minute, with a 27 m head. It runs a Powerease HL186FAE-3600 10 hp engine.
Manufacturer specifications
Features
- Move large volumes of water fast with BE high volume water transfer pumps powered by a Powerease diesel engine.
- Powerease diesel engines provide an economy priced pump set that self primes fast.
- Best suited as a light duty or emergency standby unit for heavy-duty professionals. Don't risk downtime if your main unit fails.
- Featuring a long range 12.5 L fuel tank, powerful 6 hp or 10 hp electric start diesel engine and a strong aluminium body pump with a cast iron single open impeller.
- Free battery pack included
- Coupling kit and strainer
Performance
- Flow: 1,600 L/min
- Head: 27 m
- Suction: 7 m
Pump
- Type: Clean Water
- Inlet: 4" BSP
- Outlet: 4" BSP
- Impeller: Single
- Material - Body: Cast Aluminium
- Material - Impeller: Cast Iron
- Seal: NBR & Carbon/ceramic/nitrile mechanical seal.
Unit & Frame
- Galvanized Steel Roll Frame
- 49 kg Unit Weight
- 560 x 455 x 605 Unit Dimensions (mm)

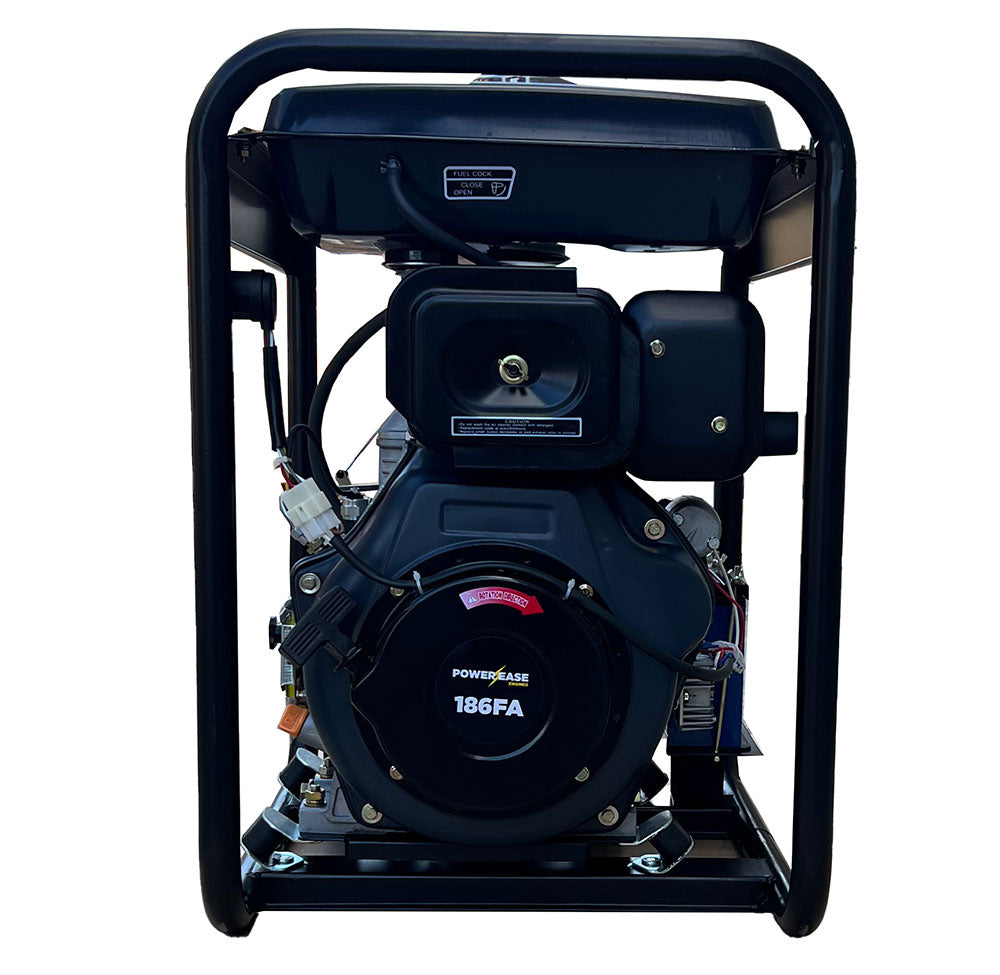

Engine
Engine
- Power: 10 hp
- Brand: Powerease
- Type: Diesel
- Start: Electric
- Fuel Tank: 12.5 L
- Warranty: 2 Year Limited
- Air Cooled Direct Injection
- Low Vibration & Noise
- Low Oil Alert
At a glance
| Inlet | 4" BSP |
| Outlet | 4" BSP |
| Impeller | Single |
| Flow - l/min. | 1600 |
| Suction | 7 |
| Engine - HP | 10 |
| Engine - Brand | Powerease |
| Engine - Model | HL186FAE-3600 |
| Engine - Start | Electric |
| Pump - Body | Aluminium |
| Pump - Impeller | Cast Iron |
| Fuel Tank | 12.5 |
| Seals | NBR |
Manuals and parts
