Description

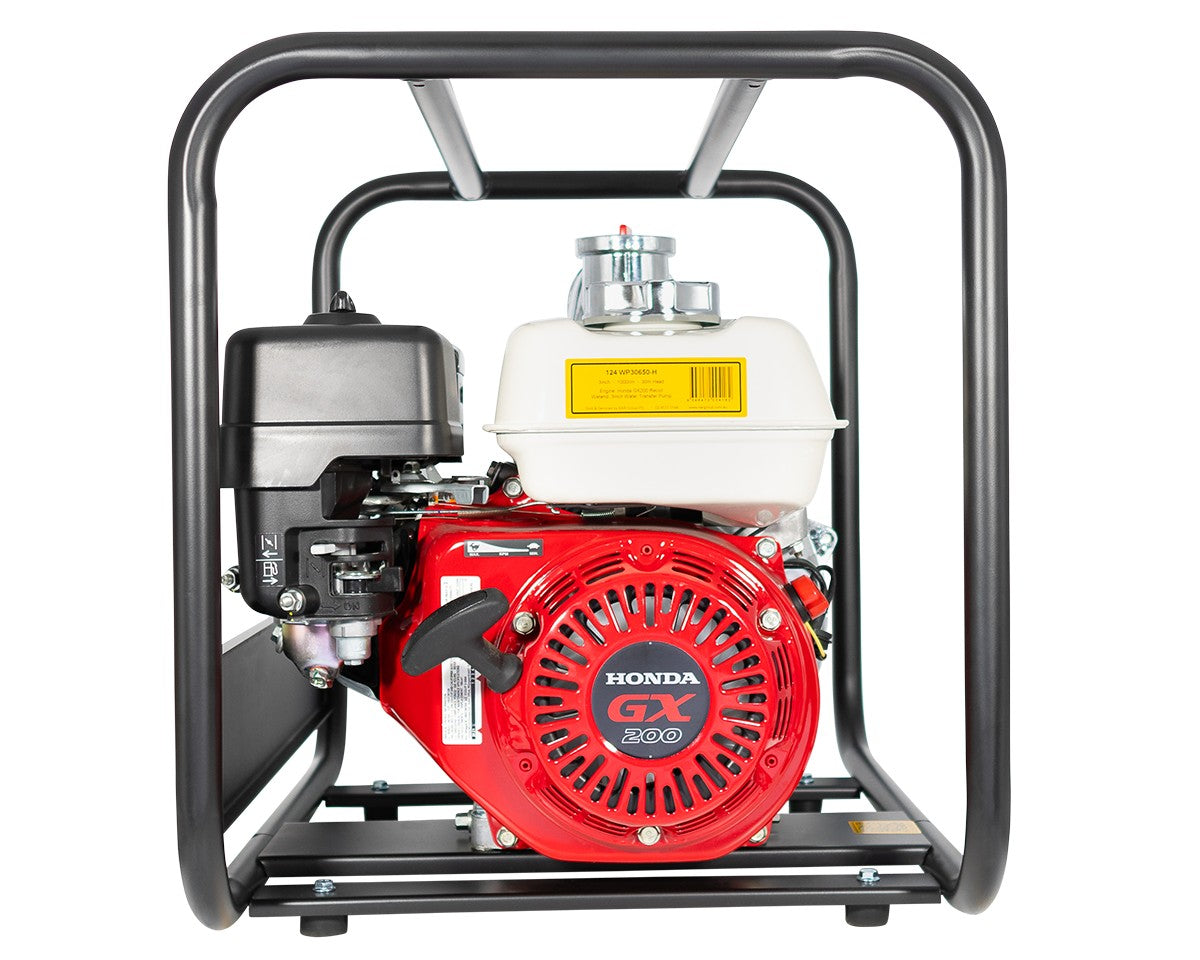

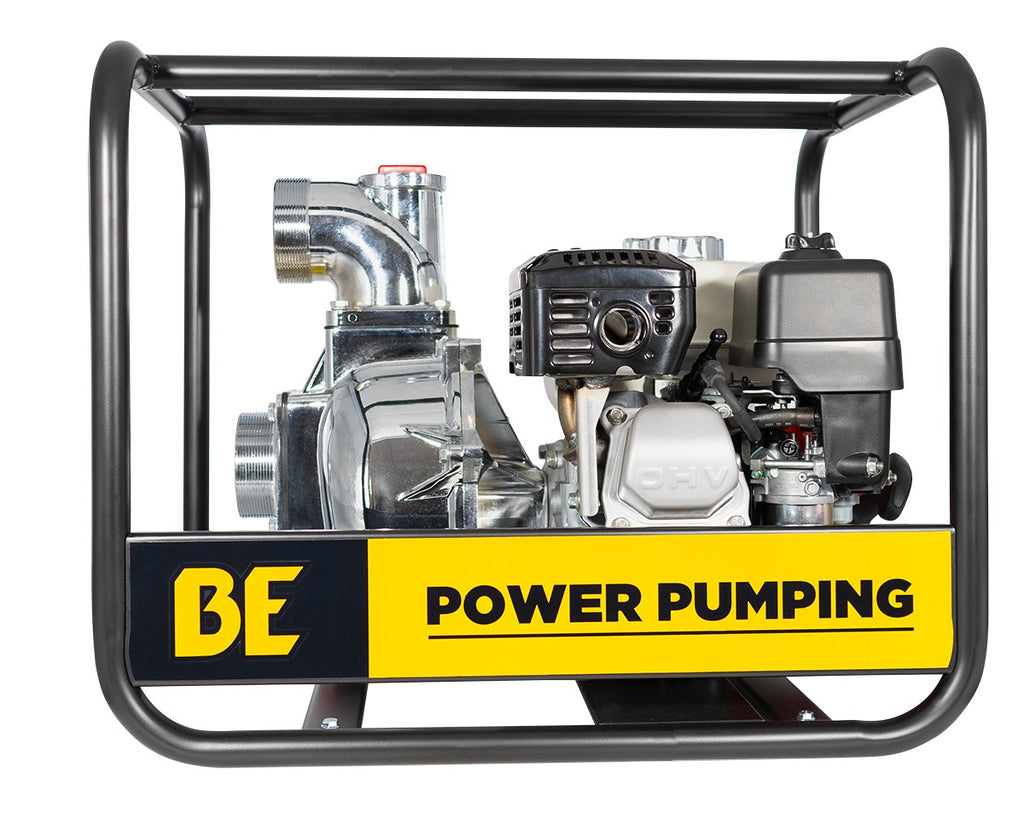

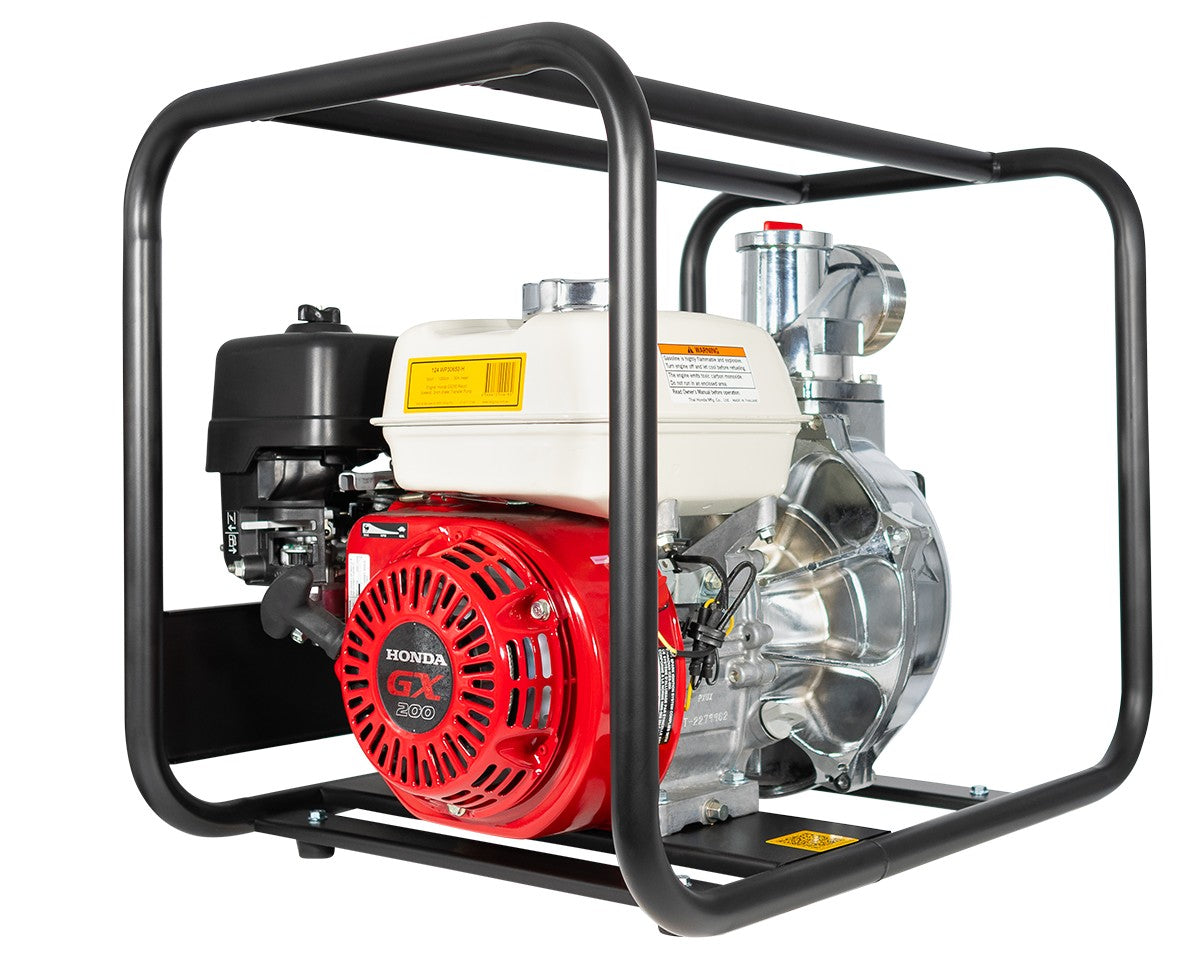

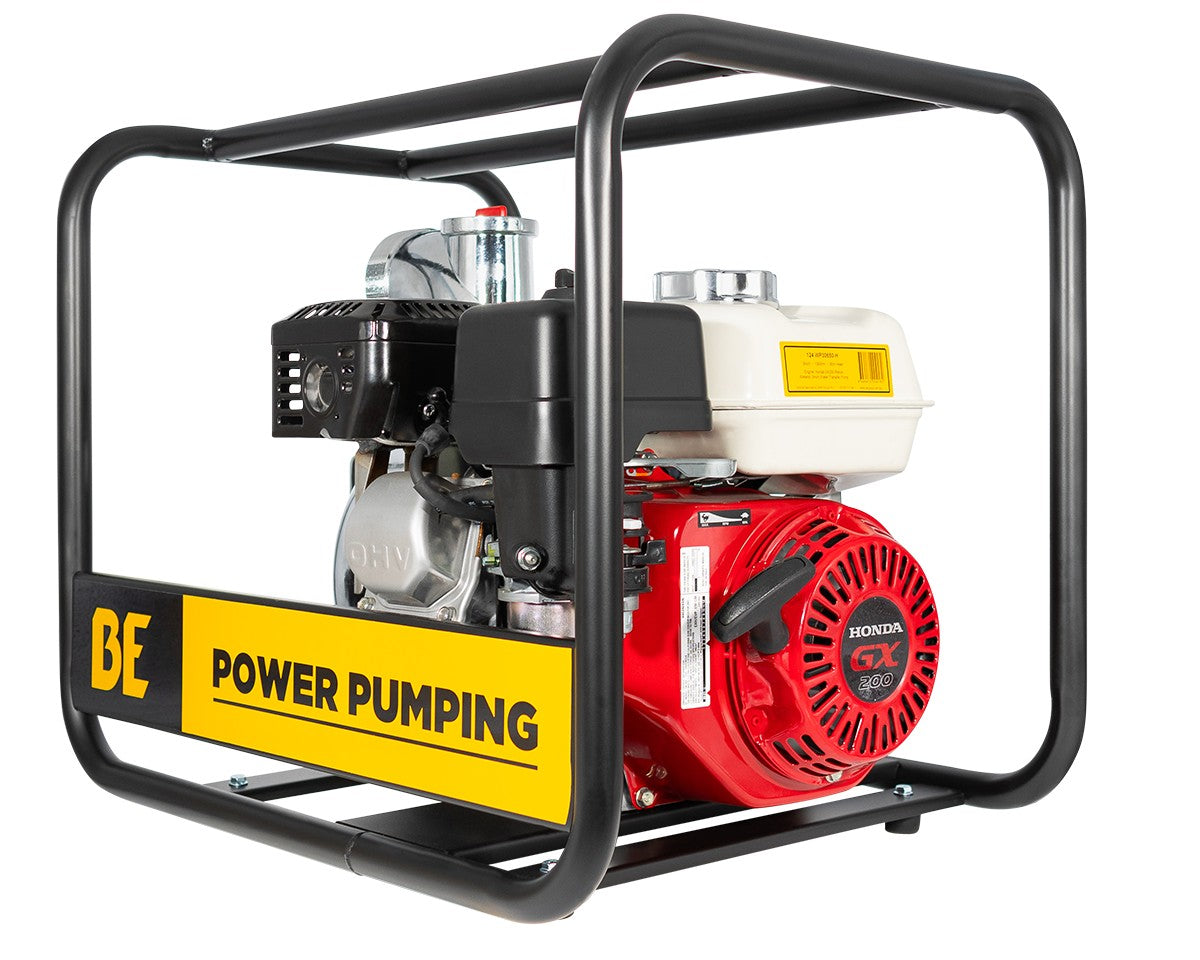

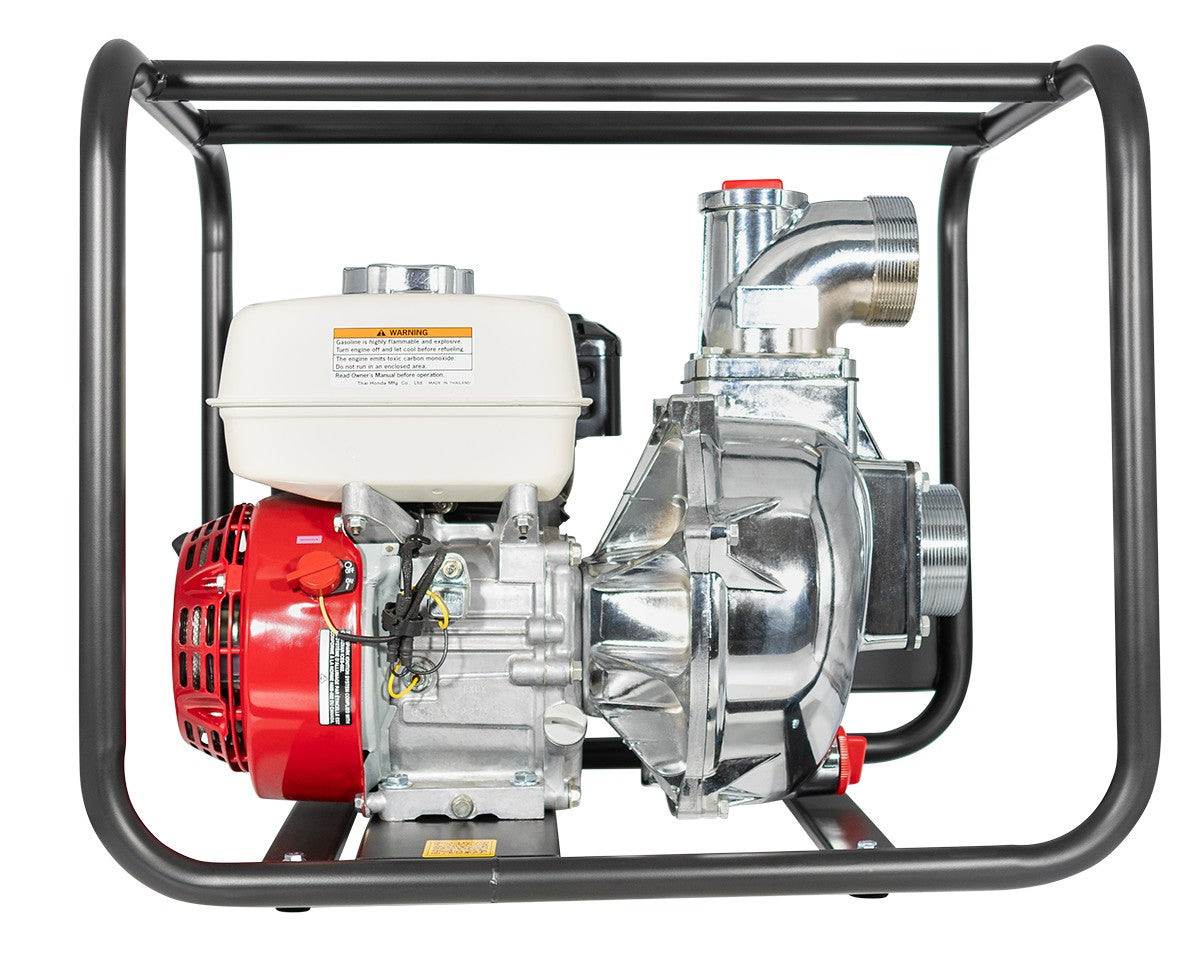

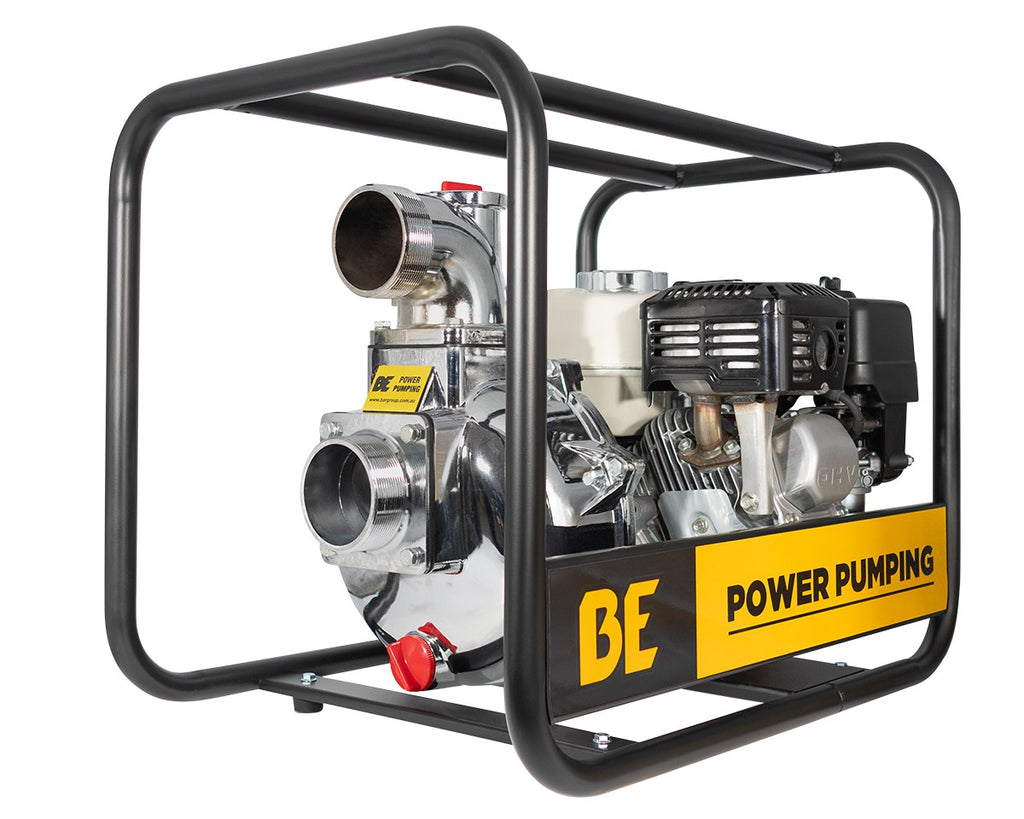

The WP30650-H is a 3 inch water transfer pump moving up to 1,000 litres a minute, with a 32 m head. It runs a Honda GX200 6.5 hp engine.
Manufacturer specifications
Features
- Move large volumes of water over short periods of time.
- These high quality units are the consumers’ choice for high flow water transfer, tank filling, dewatering and water tankers.
- Applications:
- High-volume water transfer
- Fast-fill tanker applications
- Flood irrigation
- Construction site dewatering
- Water carts, dust suppression
Performance
- Flow: 1,000 L/min
- Head: 32 m
- Suction: 7 m
Pump
- Type: Clean Water
- Inlet: 3" BSP
- Outlet: 3" BSP
- Impeller: Single
-
Material:
- Front Casing: Marine Grade Aluminium
- Volute: Marine Grade Aluminium
- Back Plate: Marine Grade Aluminium
- Mechanical Seal: Carbon/Ceramic
- Outlet: Marine Grade Aluminium
- Casing Bolts: Zinc Plated Steel
- Check Valve: Nitrile Rubber
- Prime & Drain Plug: Polycarbonate
- Priming & Drain Plug O rings: Nitrile Rubber (NBR)
- Finish: Chrome Plated Aluminium
- Impeller: Cast Iron
- Seal: NBR & Carbon/ceramic/nitrile mechanical seal. Optional Viton Seals Available (125 85.572.251V)
Unit & Frame
- Rugged Powder Coated Roll Frame
Engine
- Honda GX200 Series 6.5 hp Petrol Engine
- Air-cooled 4-stroke OHV
- Recoil Start (Electric Start Version Available - 124 WP30650-HE)
- 3.1 L Fuel Tank
- Low Oil Alert
- Honda 3-Year Limited Warranty
At a glance
| Inlet | 3" BSP |
| Outlet | 3" BSP |
| Impeller | Single |
| Flow - l/min. | 1000 |
| Suction | 7 |
| Engine - HP | 6.5 |
| Engine - Brand | Honda |
| Engine - Model | GX200 |
| Engine - Start | Recoil |
| Pump - Body | Marine Grade Aluminium |
| Pump - Impeller | Marine Grade Aluminium |
| Fuel Tank | 3.1 |
| Seals | NBR |
