Description

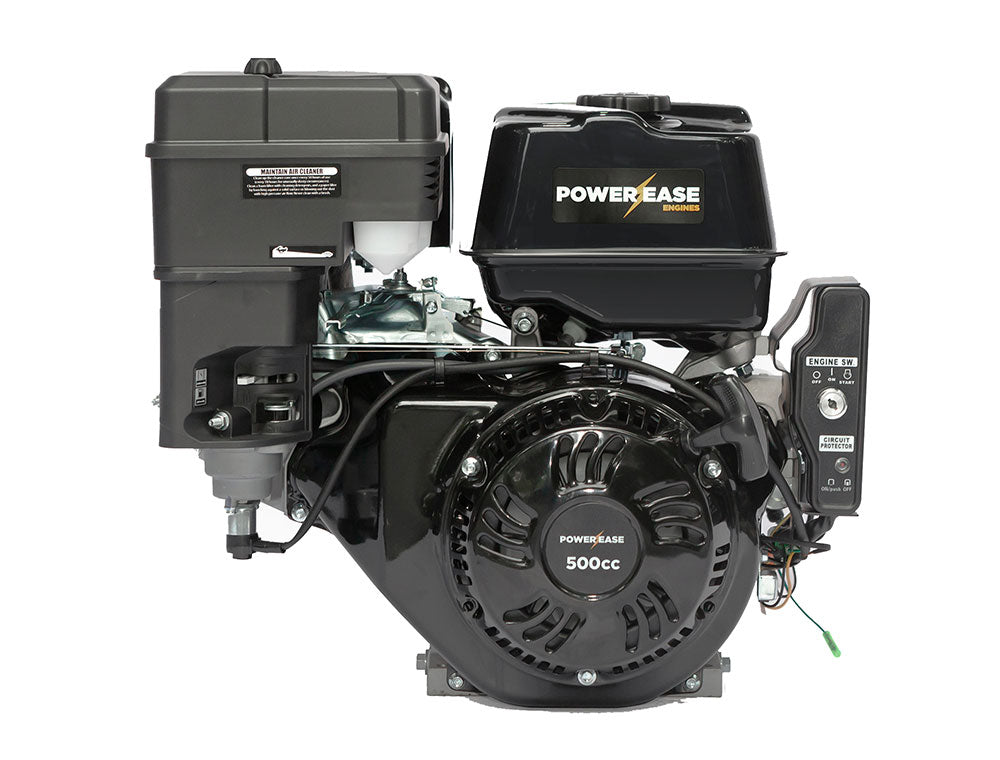

The R500-REQ is a Powerease petrol engine rated at 17 hp, electric start.
Manufacturer specifications
Powerease 17 hp 500CC Engine Q-Shaft
Features
- The Powerease 500 is an electric start 17.0HP Petrol engine capable of outputting as much power as a twin cylinder engine at half the weight It includes a starter motor, electric harness and solenoid to start with a turn of a key. Horizontal 1" Straight Keyed (Q) Shaft.
- Same footprint and mounting as Honda GX390 and Powerease R420.
Specifications
- Cylinders: Single
- Engine Type: Air-Cooled 4-Stroke OHV
- Displacement: 500CC
- Engine HP: 17 hp
- Starting System: Electric & Recoil
- Ignition System: Transistorized Magneto (TCI)
- Compression Ratio: 8:5:1
- Fuel Tank Capacity: 6.7 L
- Fuel: Unleaded 86 Octane or higher
- Shaft Size & Key Way Size: 1" Straight Keyed Q 1/4“ X 2.2”
- Shaft Rotation: Counter Clockwise
- Torque: 22.8 LB-FT (31Nm) @ 2,500 RPM
- Max Power Output: 17 hp @ 3,600 RPM
- PTO Bolt Size: 3/8-24 UNF
- Bore x Stroke: 94 mm x 72 mm
- DIMS (Not Including Crank Shaft): 475 mm x 521 mm x 457 mm (18.7"x20.5"x18")
At a glance
| Engine - HP | 17 |
| Engine - Start | Electric |
| Pump Shaft | 1" Keyed |
