Description

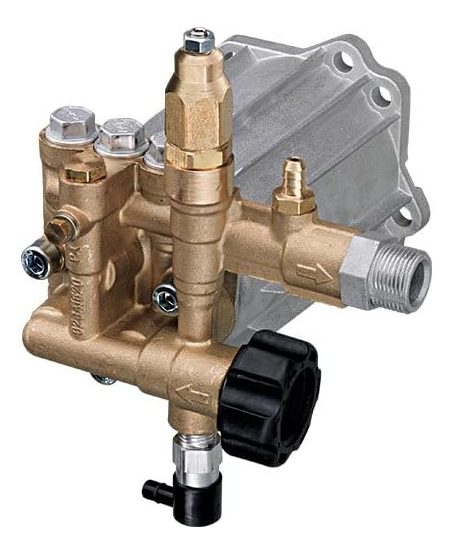

The RMV2.5G30D Assy is a BE high pressure pump, 3400 rpm, 3/4", Hollow shaft.
Manufacturer specifications
Features
Annovi Reverberi RMV25G30D horizontal plunger pump. 2.5 GPM at 3,000 PSI, spins at 3,400 RPM in a direct drive system coupled with a gasoline engine. The matching flange provides convenient connection to most 3/4” shaft 4 - 7 HP engines. The hollow shafted pump includes a built-in pressure control valve, and chemical injection system. Comes with easy connect.
- 3-piston alternating volumetric pumps for use oncleaning units
- Can be directly coupled to various types of motors
- Pump body in die-cast aluminium alloy
- Pistons driven by swash plate mechanism
- Two bearing systems, to support the pump shaft andpistons
- Pistons in hardened and tempered steel
- Pump head in pressed brass
- Double gasket sealing system
- Intake valves fitted above the pistons for greater efficiency
- Integral regulating valve
- Optional detergent suction system
- Different delivery connections available
Specifications
- Speed: 3,400 RPM
- Shaft size: 3/4”
- Max GPM: 2.5
- Max PSI: 3,000
- Inlet Thread: 3/4” GHA
- Discharge Thread: 22 mm x 14 m
At a glance
| Series | RMV |
| Speed - RPM | 3400 |
| Power - hp | 5.4 |
| Weight | 4 |
| Pump Shaft | 3/4", Hollow |
| Pump - Type | Axial |
