Description

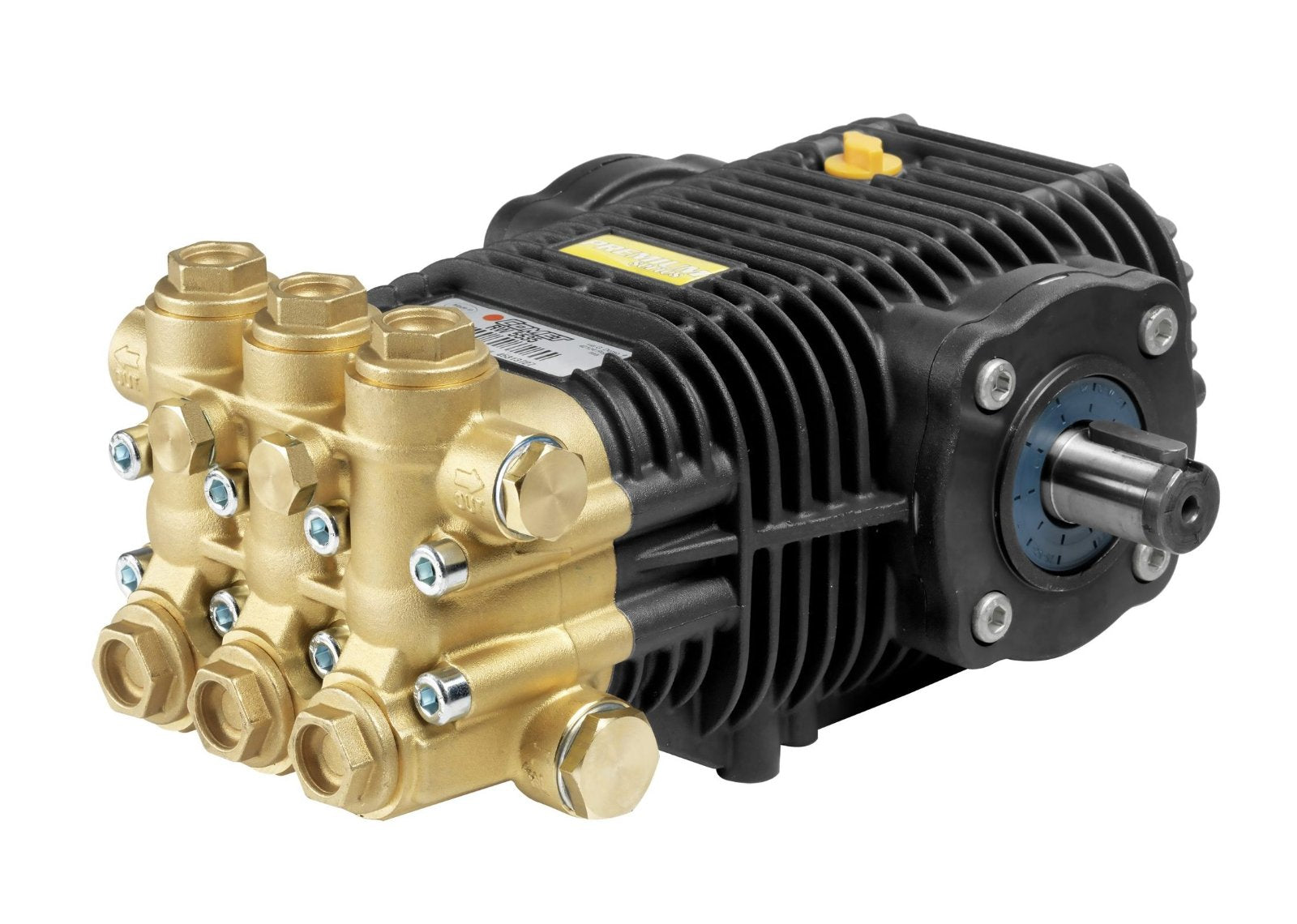

The RW5535S is a Comet high pressure pump, 1450 rpm, 24 mm, Solid shaft.
Manufacturer specifications
Features
- Brass Head
- Crankcase: Die-Cast Aluminum Alloy for Protection Against Corrosion
- Piston Guides are Heat Treated Stainless Steel
- Highly Efficient Stainless Steel Check Valves
- Solid Ceramic Plungers
- Brass Manifold: Forged for Maximum Strenght and Longer Life up to 310 bar
- One Piece, Solid Bronze Alloy Connection Rods
- High Quality Tapered Roller Bearings
- Large Oil Capacity Dissipates Heat and Improves lubrication for Longer Life
- Exclusive No-Oil-Leak System in the crankcase minimising wear of the piston oil seal (Patented)
- Exclusive Sealing System Between Crankcase And Pump Head that prevents dust and dirt getting inside where the pistons work but letting water out (Patented)
- Solid Shaft 24mm for Belt Drive, Gearbox or Flex Couplers
- Nickel plated head available on request
- Standard versions with p.t.o on right hand side, left side on request.
Specifications
- Comet Model: 6517 1300
- Shaft: Solid, 24 mm
- Speed: 1450 RPM
- Flow: 20.1 L/min - 5.3 GPM
- Pressure: 3500 PSI - 241 BAR - 24.1 Mpa
- Power: 12.6 HP - 9.3 kW
- Weight: 11.2 KG - 24.6 lbs
- Inlet: 1/2" BSP F
- Outlet: 3/8" BSP F
- Head Material: Brass
- Pump Type: Triplex
At a glance
| Brands | Comet S.p.A. |
| Series | RW |
| Speed - RPM | 1450 |
| Power - hp | 12.6 |
| Weight | 11.2 |
| Pump Shaft | 24 mm, Solid |
| Pump - Type | Triplex |
| Inlet | 1/2" BSP F |
| Outlet | 3/8" BSP F |
| Pump - Head | Brass |
