Description

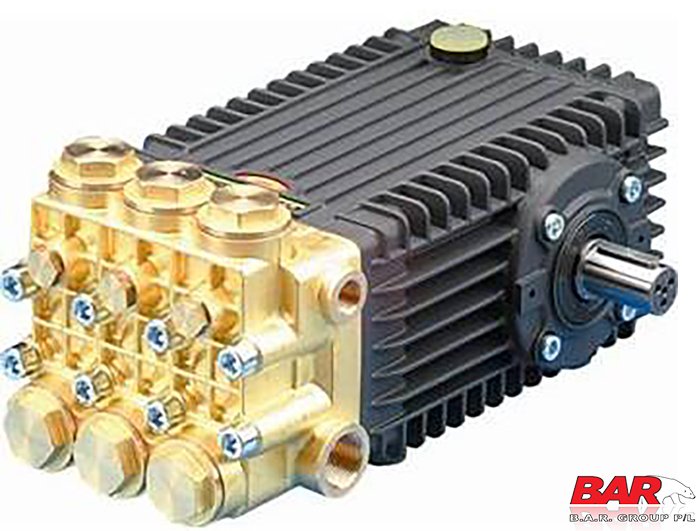

The TSF2421 is a Interpump high pressure pump, 3,000 PSI, 45 L/min, 1450 rpm.
Manufacturer specifications
Features:
- Oversized roller bearings
- Fully anodized crankcase
- Innovative new seal design extends seal life
- New plunger design improves “thermal shock” resistance
- New valve cap design improves hydrostatic performance
Specifications:
- Maximum Volume: 45 L/min
- Maximum Discharge Pressure: 2500 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Horsepower: 22.3 EBHP
- Maximum Fluid Temperature: 74°C
- Plunger Bore (in / mm): 0.944 / 24
- Plunger Stroke (in / mm): 0.826 / 21
- Crankcase Oil Capacity: 31 oz
- Pump Inlet Port Thread:3/4”-14 BSPP-F
- Pump Discharge Port Thread: 3/8”-19 BSPP-F
- Hollow Shaft I.D.: 0.945" / 24 mm
- Weight: 18.5 KG
- Dimensions: 31.27" x 9.6" x 6.23"
At a glance
| Flow - L/Min | 45 |
| Series | 66 |
| Speed - RPM | 1450 |
| Pressure - PSI | 3,000 |
| Power - hp | 17.1 |
| Pump - Type | Plunger |
