Description

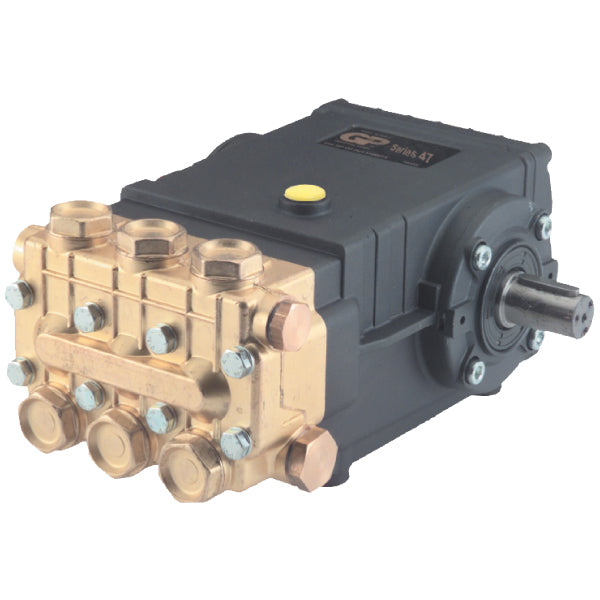

The TSS1511 ASSY is a General Pump high pressure pump.
Manufacturer specifications
Features
- The preferred pump frame in the pressure cleaning industry
- Forged brass manifold with an exclusive lifetime warranty
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
- Designed for suction applications
- Manifold with fine thread valve caps
Specifications
- Max Volume: 15 L/min
- Max Discharge Pressure: 3,500 PSI
- Max Pump Speed: 1,450 RPM
- Max Inlet Pressure: 125 PSI
- Max Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Plunger Bore: .787" / 20 mm
- Plunger Stroke: .472" / 12 mm
- Crankcase Oil Capacity: 37.2 oz.
- Max Fluid Temperature: 165o F
- Inlet Port Thread: 1/2-14" BSP-F
- Discharge Port Thread 3/8-19" BSP-F
- Shaft Diameter: .945:" / 24 mm
- Weight: 32 lbs.
- Dimensions: L 12.6” x W 9.2” x H 6.9”
