Description

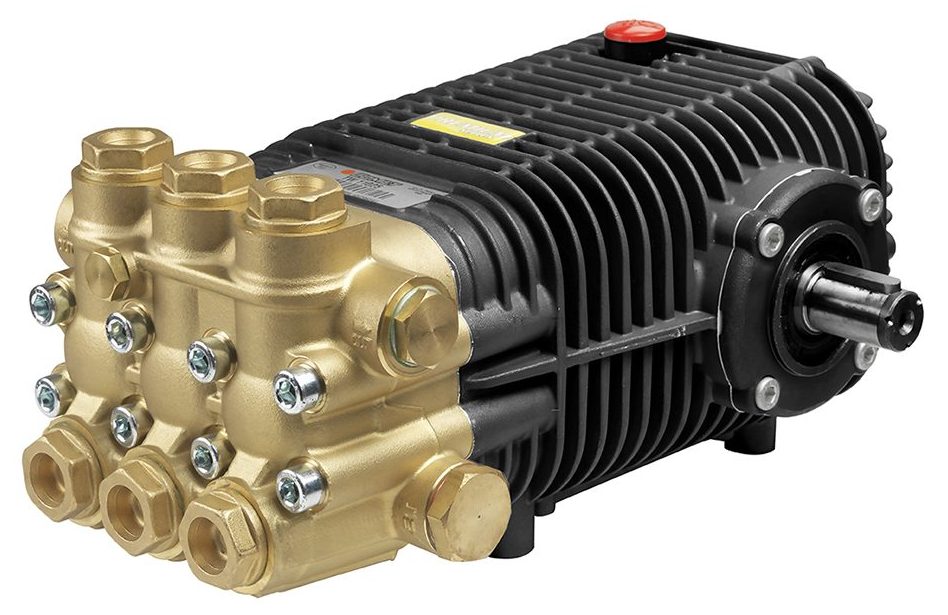

The TW10025S is a Comet high pressure pump, 1450 rpm, 24 mm, Solid shaft.
Manufacturer specifications
Features
- Brass Head
- Die-Cast Aluminum Alloy for Protection Against Corrosion
- Piston Guides are Heat Treated Stainless Steel
- Highly Efficient Stainless Steel Check Valves
- Solid Ceramic Plungers
- Brass Manifold: Forged for Maximum Strenght and Longer Life up to 345 bar
- Solid Bronze Alloy Connection Rods
- High Quality Tapered Roller Bearings
- Large Oil Capacity Dissipates Heat and Improves lubrication for Longer Life
- High Volume up to 53,5 l/min
- Long Life Seals
- Exclusive No-Oil-Leak System in the crankcase minimising wear of the piston oil seal (Patented)
- Exclusive Sealing System Between Crankcase And Pump Head that prevents dust and dirt getting inside where the pistons work but letting water out (Patented)
- Solid Shaft 24 or 30 mm for Belt Drive, Gearbox or Flex Couplers
- Standard versions with p.t.o on right hand side, left side on request.
Specifications
- Comet Model: 6513 1000
- Shaft: Solid, 24 mm
- Speed: 1450 RPM
- Flow: 38 L/min - 10 GPM
- Pressure: 2500 PSI - 172 BAR - 17.2 Mpa
- Power: 16.5 HP - 12.5 kW
- Weight: 20 KG - 44 lbs
- Inlet: 3/4" BSP F
- Outlet: 1/2" BSP F
- Head Material: Brass
- Pump Type: Triplex
At a glance
| Brands | Comet S.p.A. |
| Series | TW |
| Speed - RPM | 1450 |
| Power - hp | 16.5 |
| Weight | 20 |
| Pump Shaft | 24 mm, Solid |
| Pump - Type | Triplex |
| Inlet | 3/4" BSP F |
| Outlet | 1/2" BSP F |
| Pump - Head | Brass |
Manuals and documents
