Description

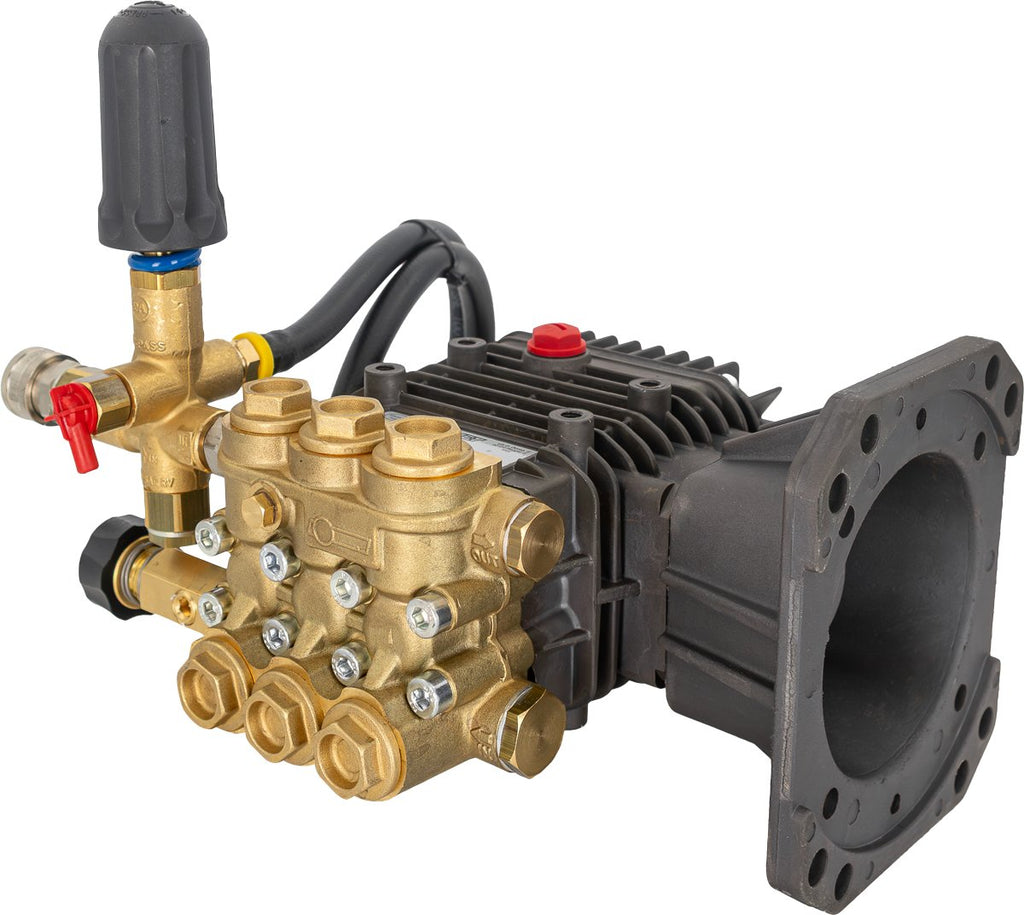

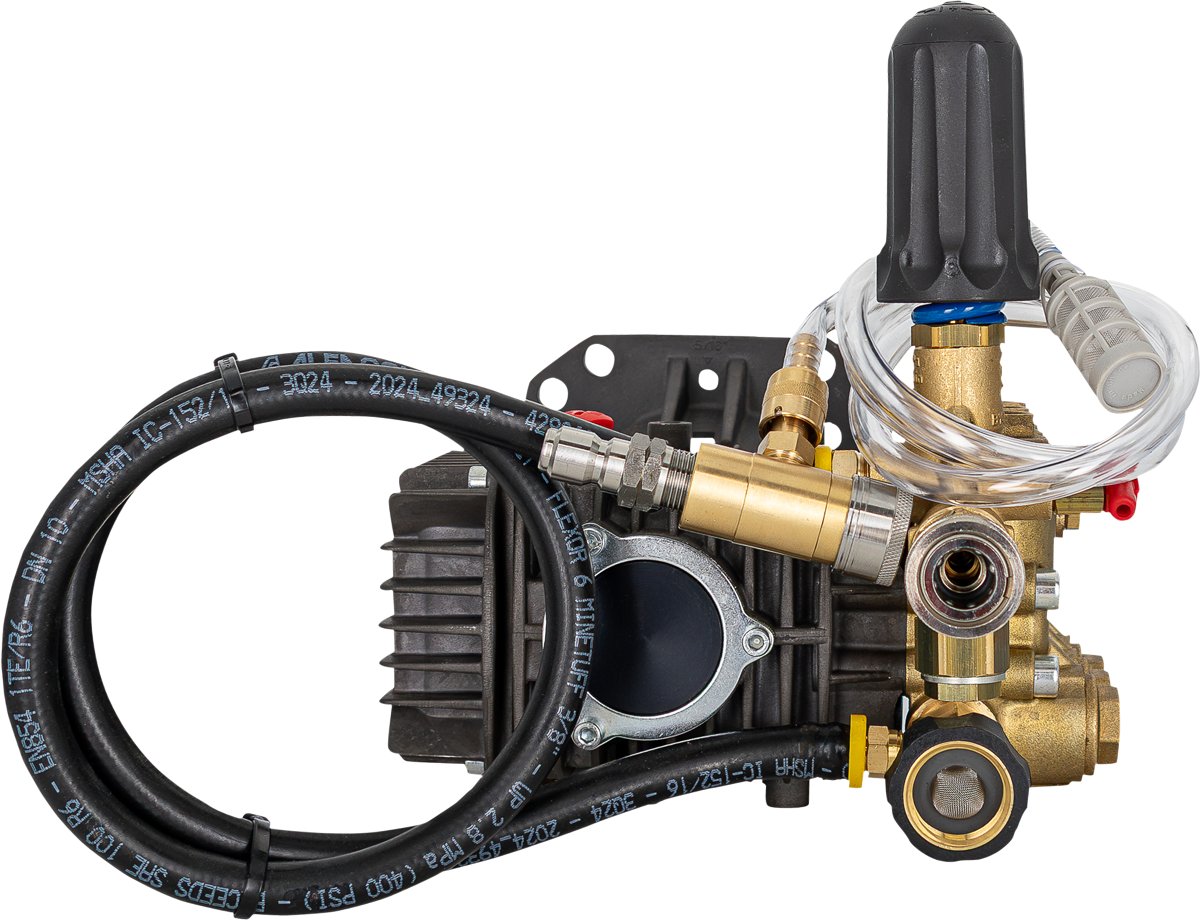

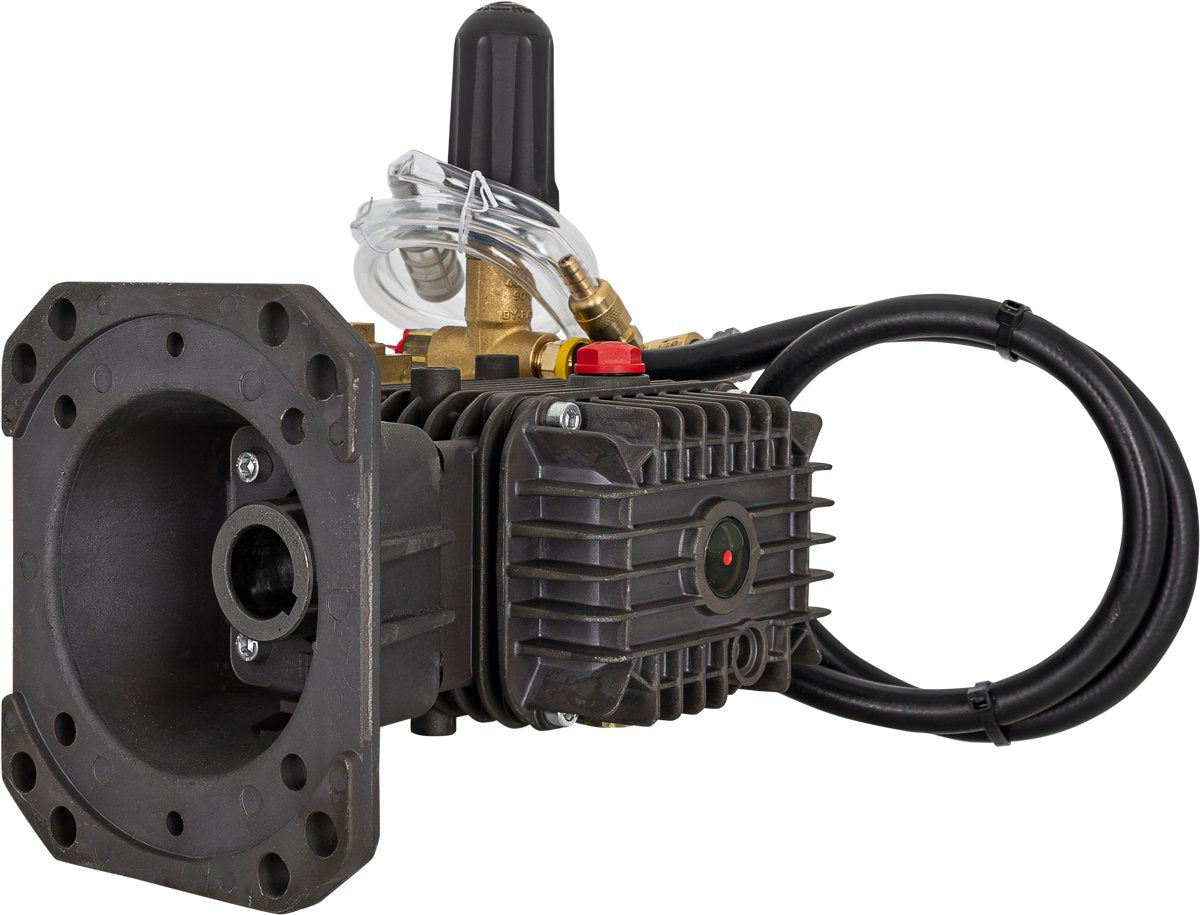

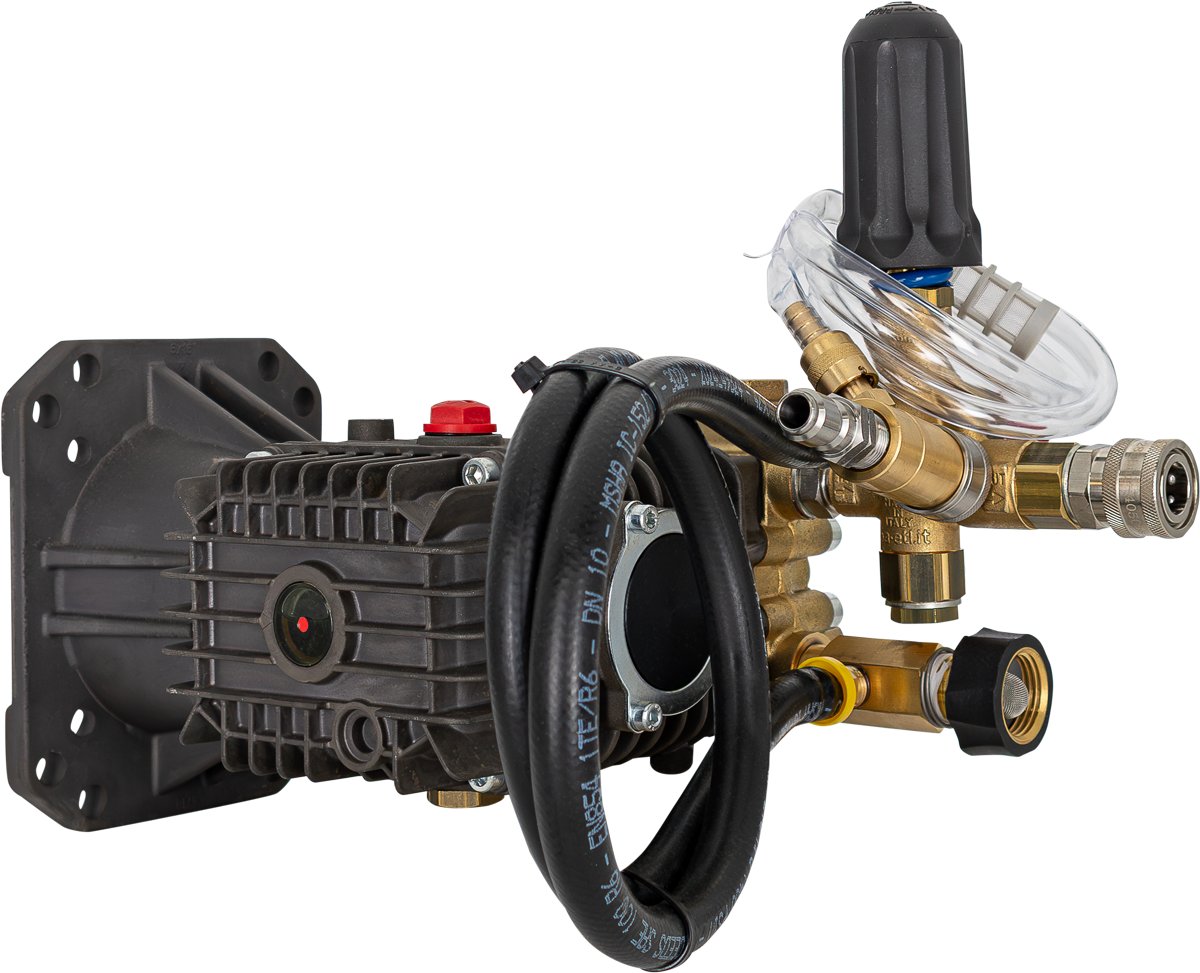

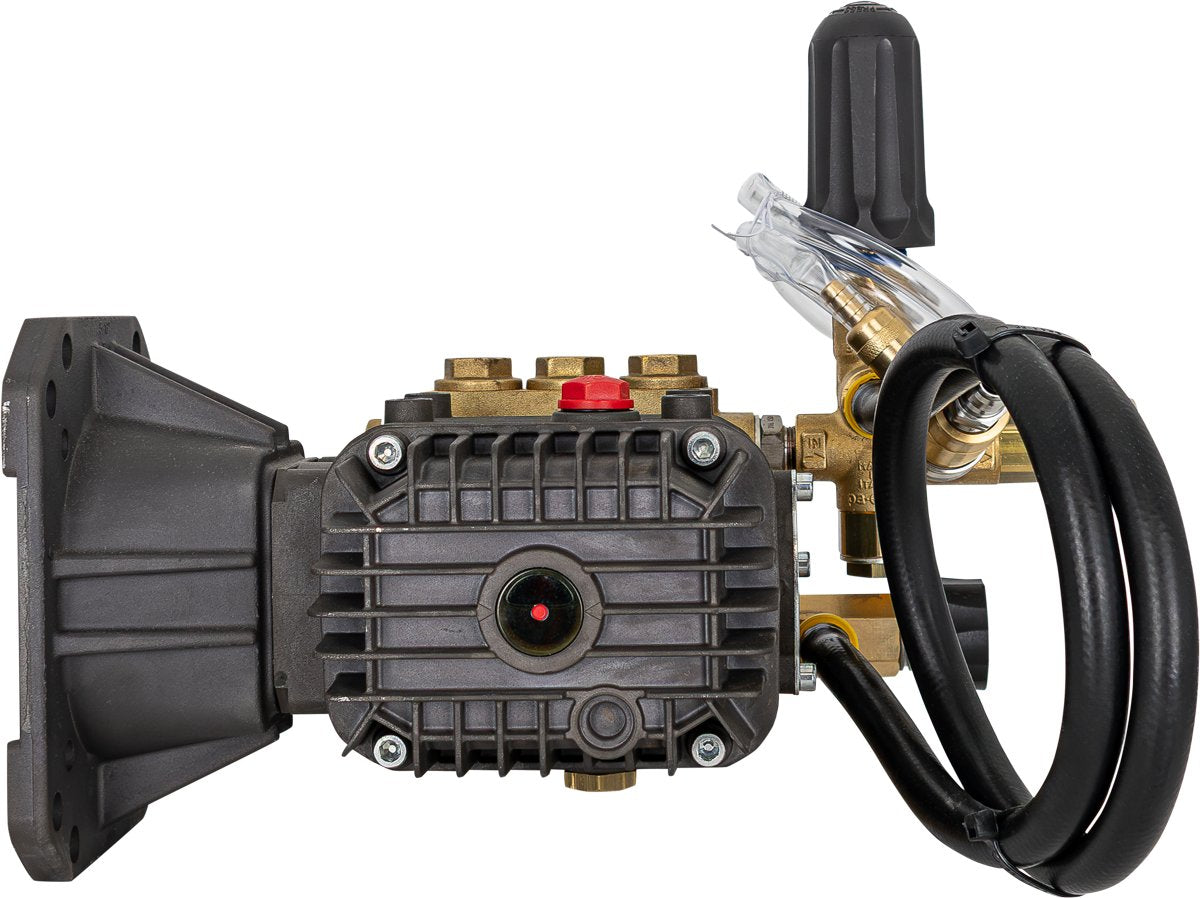

The ZWD4040G ASSY is a BE high pressure pump, 3400 rpm, 1", Hollow shaft.
Manufacturer specifications
Features
- Premium Comet Pump Assembly
- This premium pump assembly comes ready to use out of the box.
- Equipped with an external loader valve, plumbing, and the couplers for hose attachment, just bolt on to your existing engine, and you're ready to go!
- Increased fin depth increases surface area to maximize heat dissipation
- Stainless steel unitized check valves
- Heat-resistant solid ceramic plungers operating on lubricated packings
- Reinforced crankcase for increased load capacity
- Enlarged crankcase increases oil capacity for better lubrication and lower operating temperatures
- One-piece industrial-grade oversized bronze connecting rods

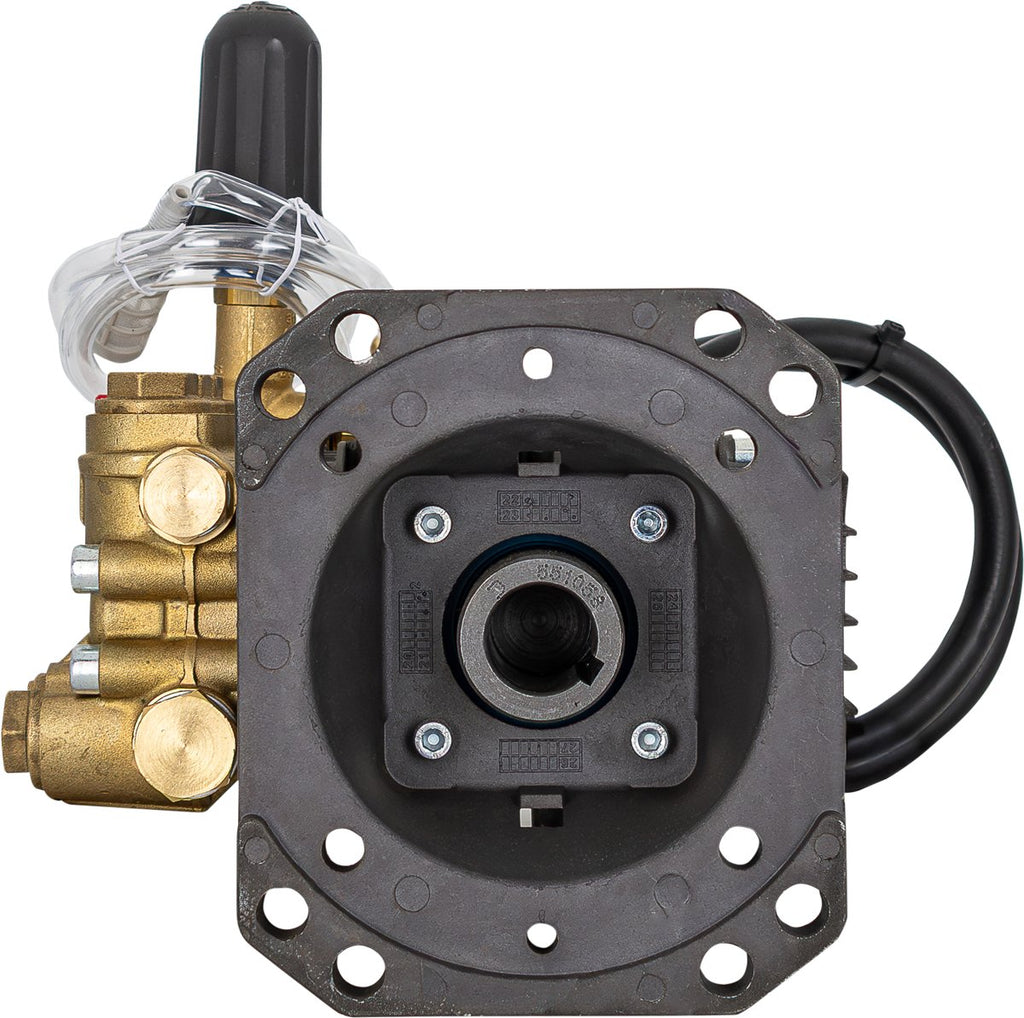

- 1” hollow shaft with flange for coupling to petrol engines
Specifications
- Maximum Flow: 15.2 L/min
- Maximum Pressure: 4,000 psi
- Pump Speed: 3,400 RPM
- Inlet: 3/4" FGHT
- Outlet: Female Quick Coupler
- Shaft: 1" Hollow Keyed
- Manifold: Brass
- Unloader: External
- OEM SKU: 6305 0900
Range Review
All models are right hand p.to (left hand p.to on request).
Option: base (h. 34 mm) code 5011 0184.
At a glance
| Series | ZWD |
| Speed - RPM | 3400 |
| Power - hp | 11 |
| Weight | 7.9 |
| Pump Shaft | 1", Hollow |
| Pump - Type | Plunger |
Manuals and documents
