Description

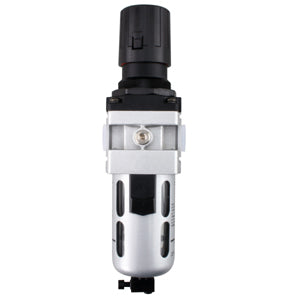

GZ60311 - GROZ Air Filter-Regulator Combination Unit
The Filter-Regulator Combination is one of the most popularair preparation units. The 2 are assembled together to forma single unit.Air Filter is used to separate dust dirt moisture & othercontaminants from compressed air. Filter has a Die CastAluminiumbody polycarbonate bowl with a steel bowl guard & a highperformance Sintered Bronze.Filtering element Filter is designed with a Separator &Shield for efficient moisture separation. It is combinedwith a Regulator which maintains a steady outlet pressureunaffected by variations/fluctuations in the inlet pressure.Regulators have a Non Raising “Press to Lock” adjusting knobfor locking at any set pressure .Regulators work on aDiaphragm operated relieving type mechanism with pressurecompensated by balanced poppet.
• Pressure adjustment range of 7 - 145 PSI (0.5 - 10 BAR)• 40 micron filtering element• Press Type Manual Drain with Night Time Drain featurewhich automatically drains off the bowl once the compressedair supply to the filter is switched off.
WETTED COMPONENTS:Aluminium Bronze Brass Steel Acetal PolycarbonateStainless Steel & Nitrile
FRC15 Type:STANDARD COMPLETE WITH 42MM GAUGEMax flow rate: 106 CFM / 3000 LPMBayonet Type Steel Bowl Guard Regulator with in-builtVenturi for Flow Compensation
CONFORMS TO ISO 6953-1 & 5782-1
WARNING: Polycarbonate bowls may get damaged and possiblyfail if exposed to synthetic oils thinner solventstrichloroethylene kerosene or other aromatic hydrocarbons.
The Filter-Regulator Combination is one of the most popularair preparation units. The 2 are assembled together to forma single unit.Air Filter is used to separate dust dirt moisture & othercontaminants from compressed air. Filter has a Die CastAluminiumbody polycarbonate bowl with a steel bowl guard & a highperformance Sintered Bronze.Filtering element Filter is designed with a Separator &Shield for efficient moisture separation. It is combinedwith a Regulator which maintains a steady outlet pressureunaffected by variations/fluctuations in the inlet pressure.Regulators have a Non Raising “Press to Lock” adjusting knobfor locking at any set pressure .Regulators work on aDiaphragm operated relieving type mechanism with pressurecompensated by balanced poppet.
• Pressure adjustment range of 7 - 145 PSI (0.5 - 10 BAR)• 40 micron filtering element• Press Type Manual Drain with Night Time Drain featurewhich automatically drains off the bowl once the compressedair supply to the filter is switched off.
WETTED COMPONENTS:Aluminium Bronze Brass Steel Acetal PolycarbonateStainless Steel & Nitrile
FRC15 Type:STANDARD COMPLETE WITH 42MM GAUGEMax flow rate: 106 CFM / 3000 LPMBayonet Type Steel Bowl Guard Regulator with in-builtVenturi for Flow Compensation
CONFORMS TO ISO 6953-1 & 5782-1
WARNING: Polycarbonate bowls may get damaged and possiblyfail if exposed to synthetic oils thinner solventstrichloroethylene kerosene or other aromatic hydrocarbons.
