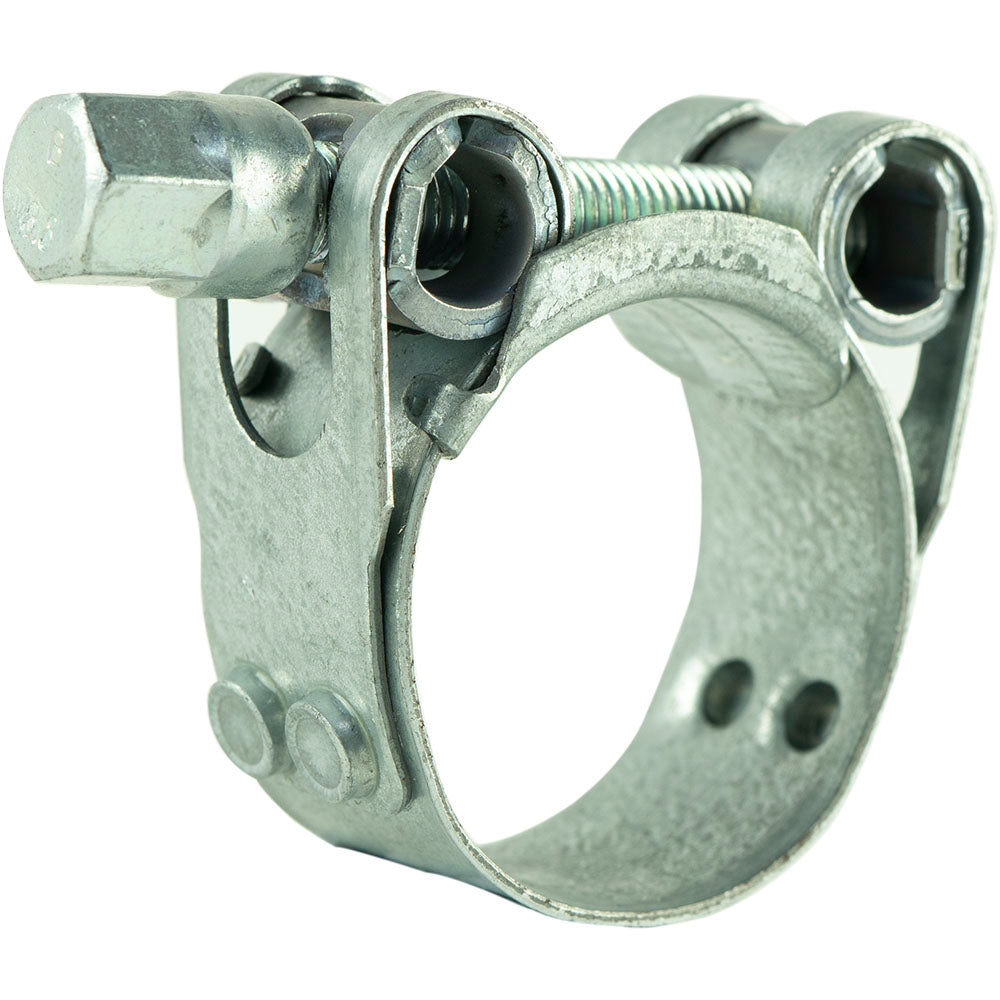

Description
Specifications
- Band With: 25mm
- Hex: 13mm
- Diameter Range: 97-104mm
- Tightening Torque: 20Nm
- Band: Stainless Steel 1.4301
- Bridge: Stainless Steel 1.4301
- Bolt: ISO 3506-1 Class A2-70
- Bush: Stainless Steel 1.4301
- Trunnion: Stainless Steel 1.4301
- Corrosion Resistance acc. to ISO 9227: Min. 240 hours
- Industries
- Agriculture
- Automotive
- Marine
- Mining
- Plumbing
- OEMs
Key features
- No welding and no contact corrosion points
- Hollow D' shape trunnions to reduce tensile force onthebolt and clinched joint
- A profiled bridge with extended tabs for secureattachment to the band without welding
- W1 steel bolts are Class 8.8 and feature anintegratedspacer in place of a separate bush
- Rolled band edges which are designed to protect damage to the hose or wall fabric
- A high clamping force with low free torque value
