Description

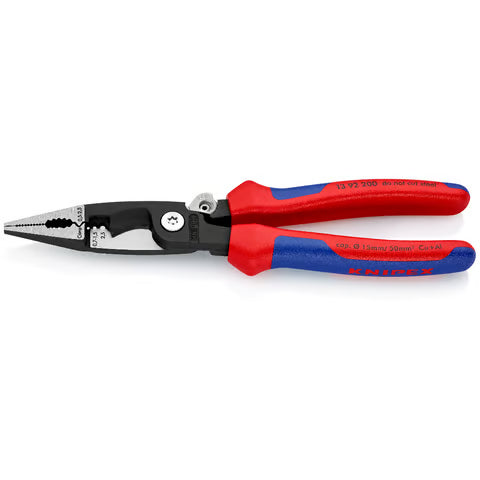

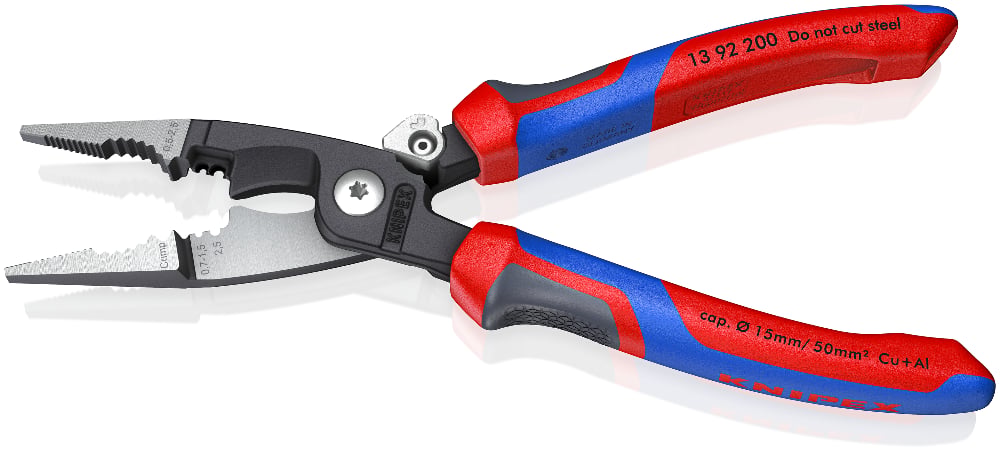

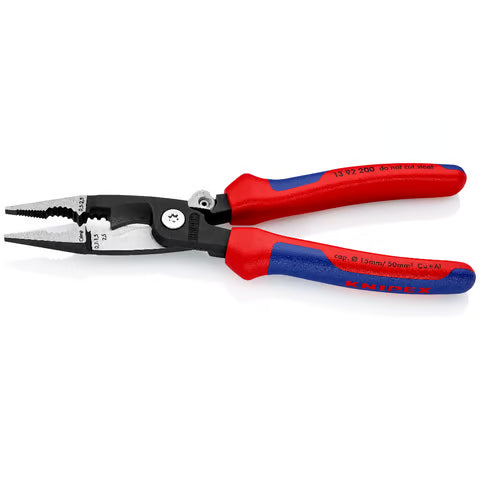

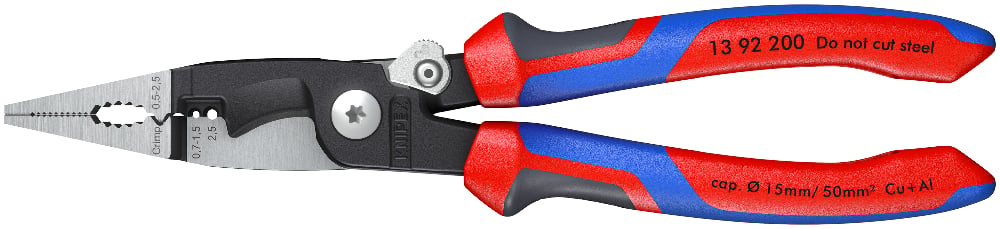

Knipex Plier for Electrical Installation Black Atramentized 200mm - KNIPEX - #13 92 200 SB
- Multifunctional pliers for the electrical installation- to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules)
- 6 functions in one pair of pliers
- Smooth surfaces near the tips grip single cores without damaging them- serrated gripping surfaces and pipe grip for gripping flat and round material
- Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
- Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
- Crimp die for wire-end ferrules 0.5 - 2.5 mm²

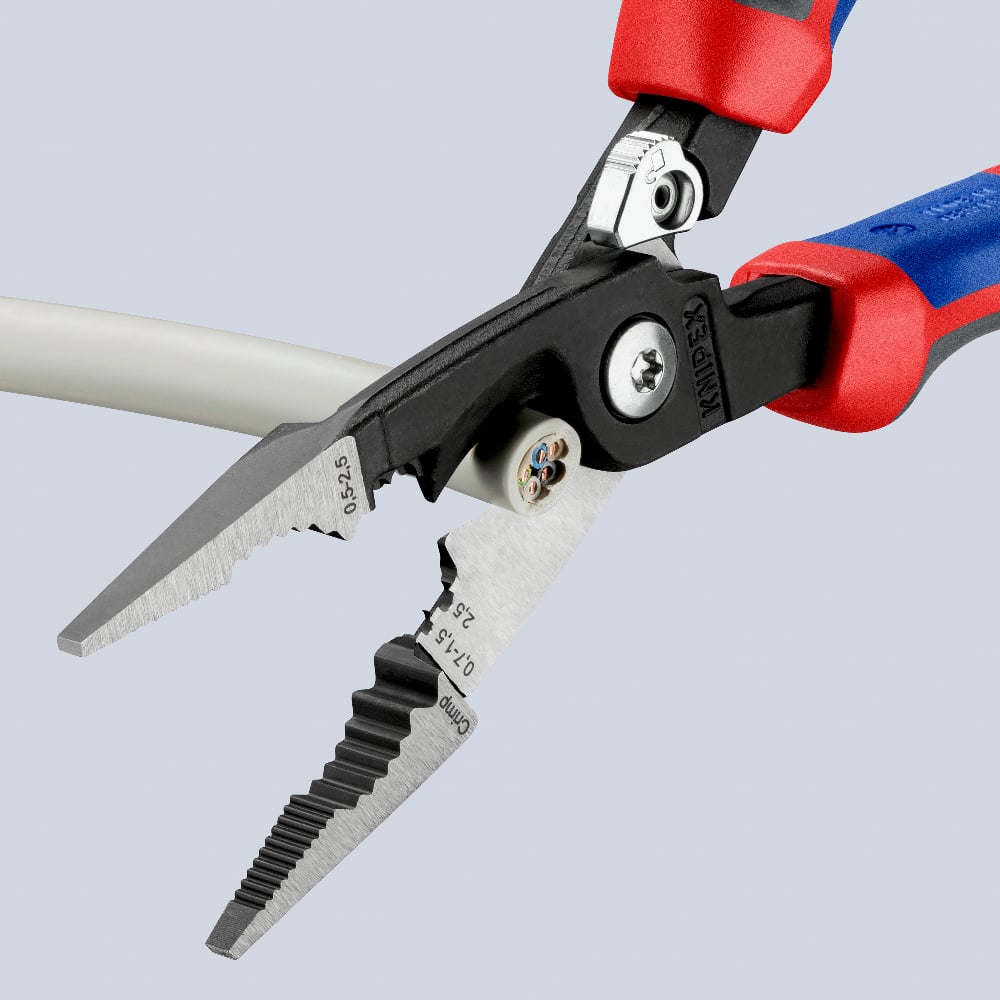

- Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm
- Gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version). The cutting edge remains closed and protected
- Slim dimensions for easy access
- Bolted joint: precise, zero backlash operation of pliers
- High-grade special tool steel, forged, oil-hardened
- The activated locking lever keeps the cutting edges closed while other functions remain in place
- The intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.
Technical attributes
| Part No. | 13 92 200 |
|---|---|
| EAN | 4003773075103 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with comfort handles |
| Weight | 266 g |
| Dimensions | 200 x 59 x 23 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacity copper cable, multiple-stranded | Ø 15 mm |
| Cutting capacity copper cable, multiple-stranded | 50 mm² |
| Stripping capacity for single strands | 0.75 — 1.5 mm² / 2.5 mm² |
| Capacity in square millimetres | 0.5 — 2.5 mm² |
| AWG | 1 / 0 |
