Description

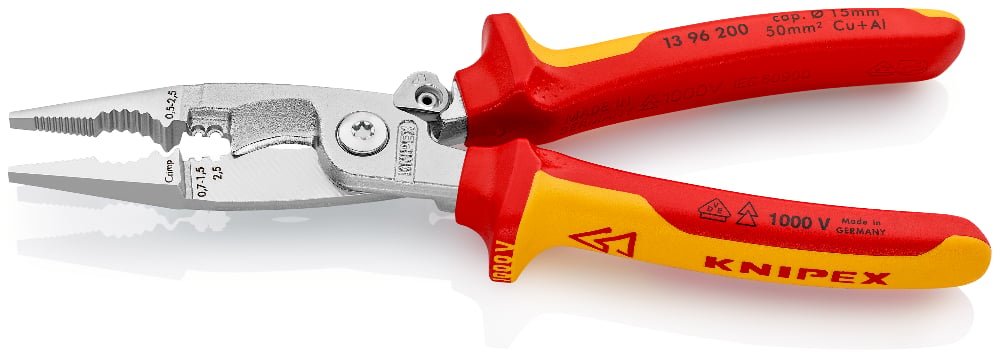

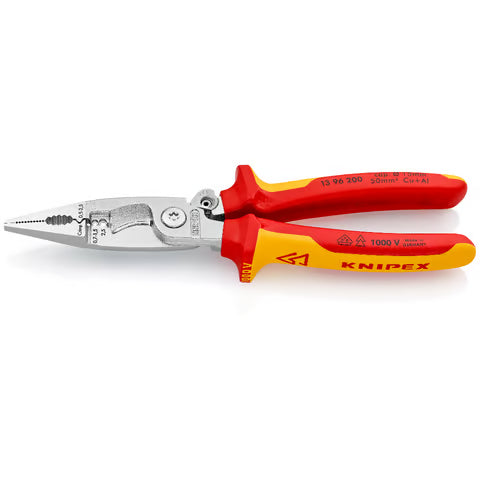

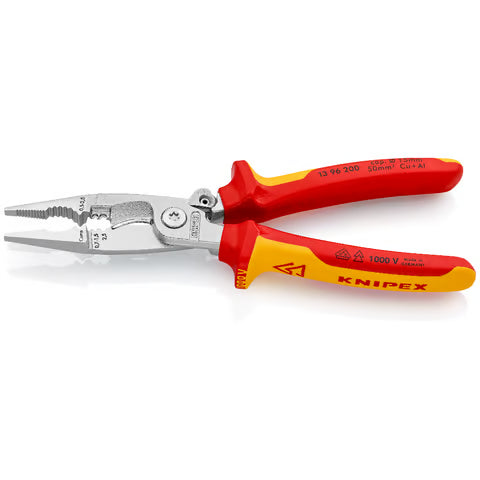

200mm 6N1 VDE ELECTRICAL INSTALLATION PLIERS WITH SPRING - KNIPEX - #13 96 200 SB
- multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules)
- 6 functions in one pair of pliers
- smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
- clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

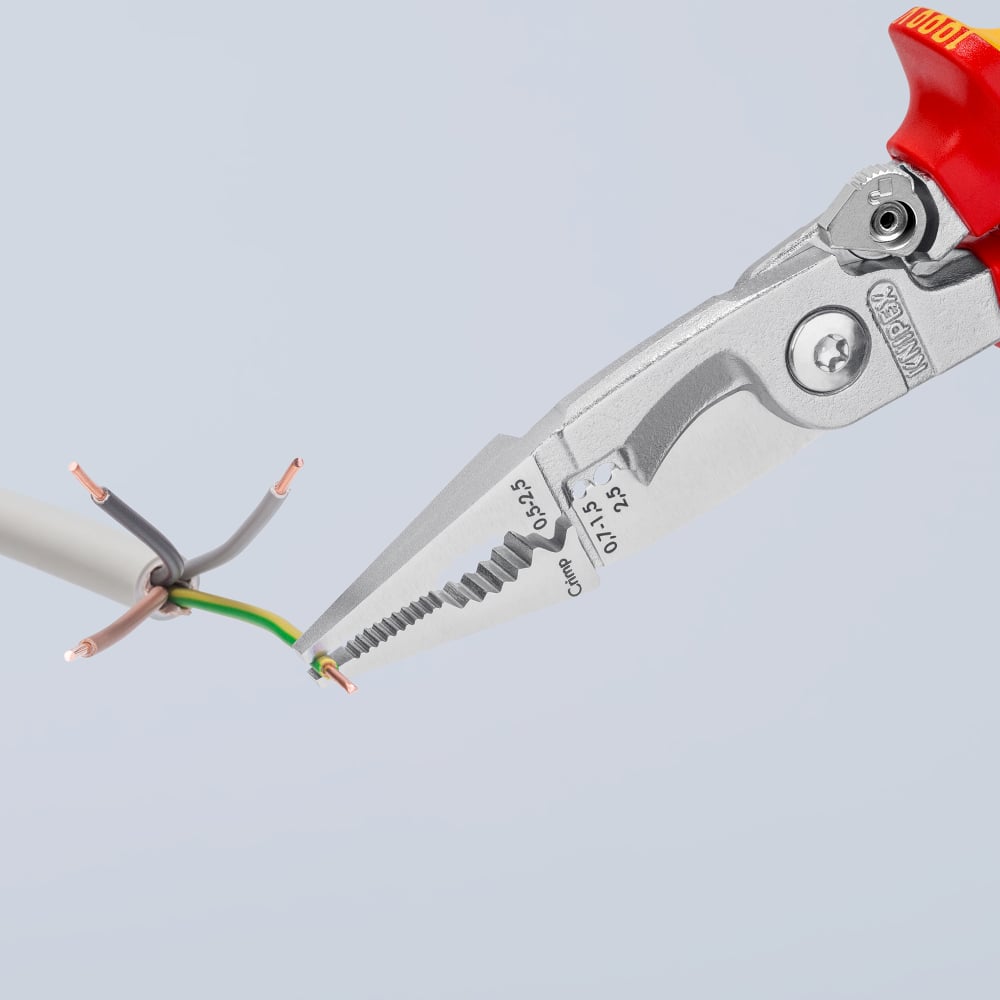

- stripping holes for conductors of 0.7 - 1.5 mm² and 2.5 mm²

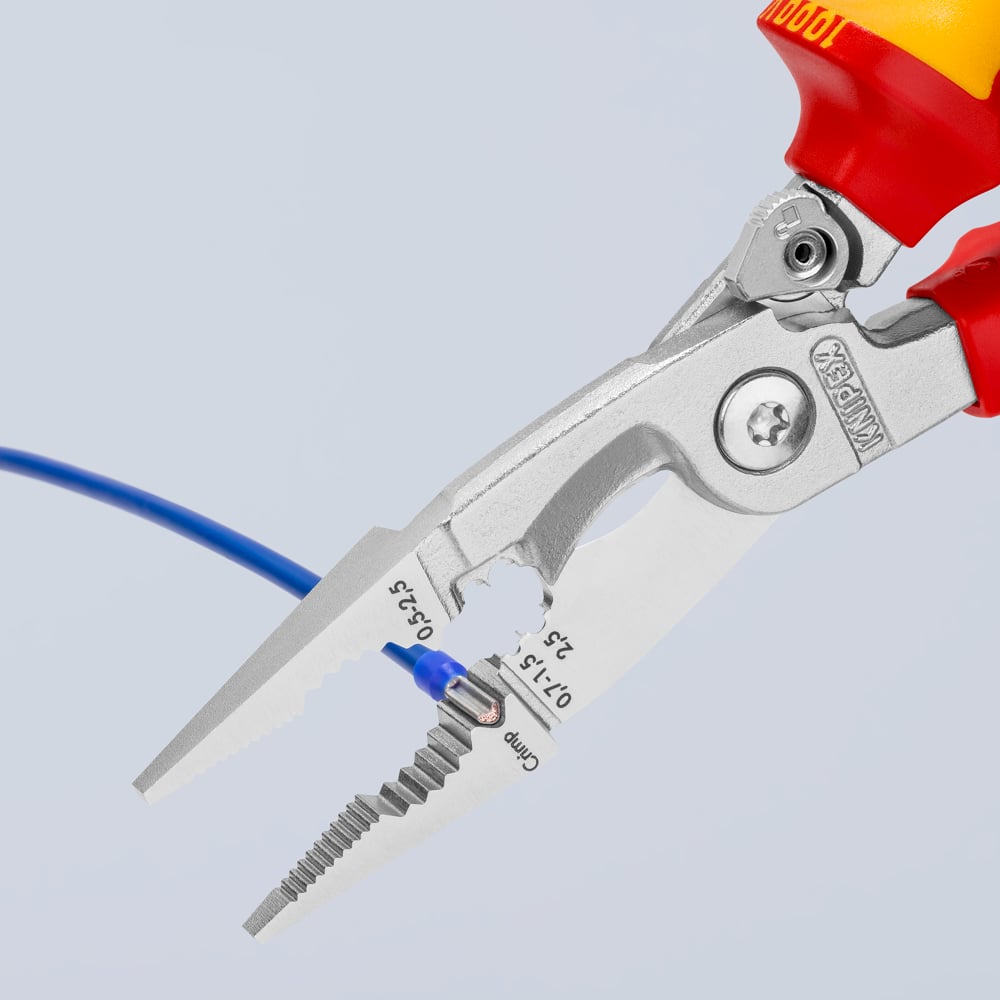

- crimp die for wire-end ferrules 0.5 - 2.5 mm²
- cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm
- gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version). The cutting edge remains closed and protected
- slim dimensions for easy access
- bolted joint: precise, zero backlash operation of pliers
- Model:
Technical attributes
| Part No. | 13 96 200 |
|---|---|
| EAN | 4003773075110 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 276 g |
| Dimensions | 200 x 85 x 20 mm |
| Standard | DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacity copper cable, multiple-stranded | Ø 15 mm |
| Cutting capacity copper cable, multiple-stranded | 50 mm² |
| Stripping capacity for single strands | 0.75 — 1.5 mm² / 2.5 mm² |
| Capacity in square millimetres | 0.5 — 2.5 mm² |
| AWG | 1 / 0 |
| VDE tested | yes |
