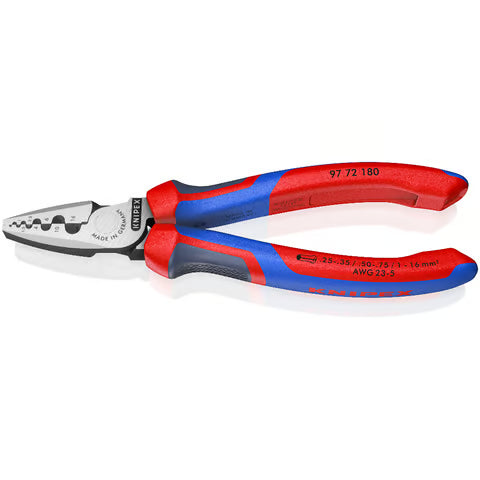

Description
- Easy crimping due to optimised transmission ratio
- Light and slim design
- For crimping end sleeves (ferrules) according DIN 46228 parts 1 + 4 from 0.25 to 16mmmm2

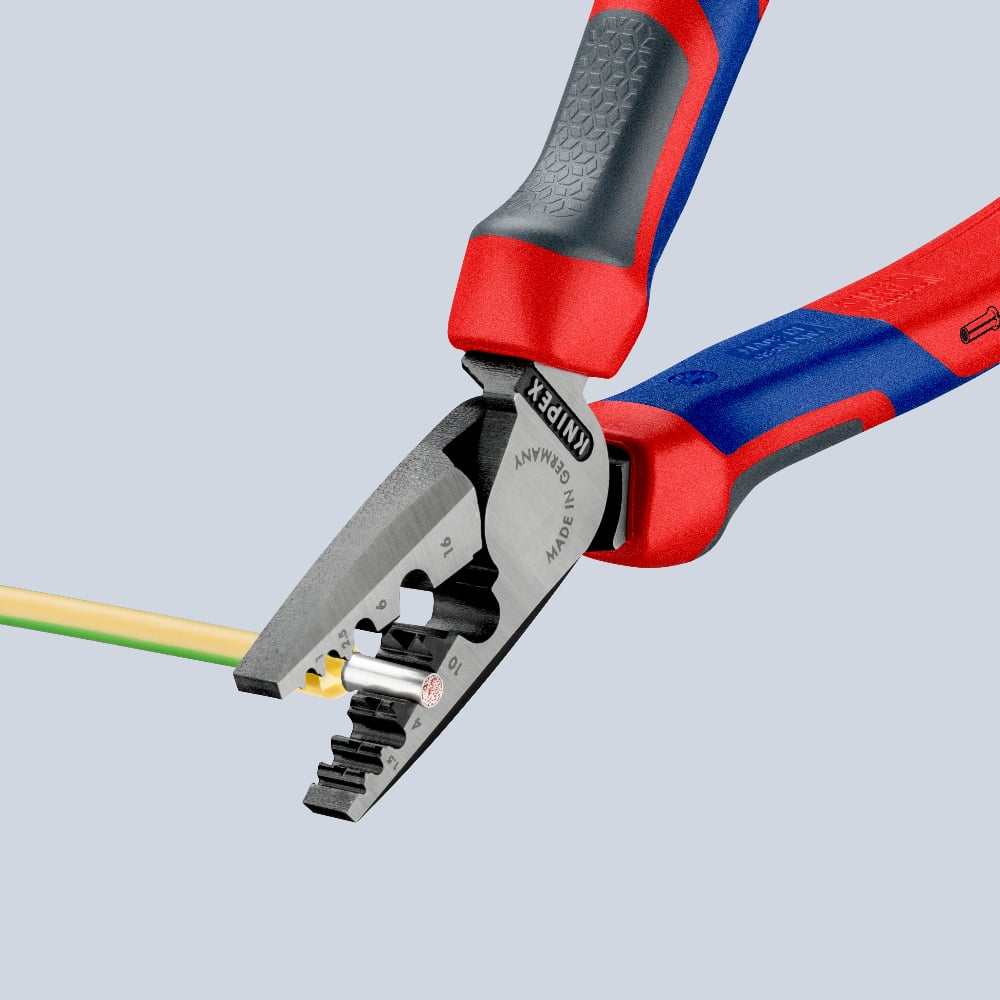

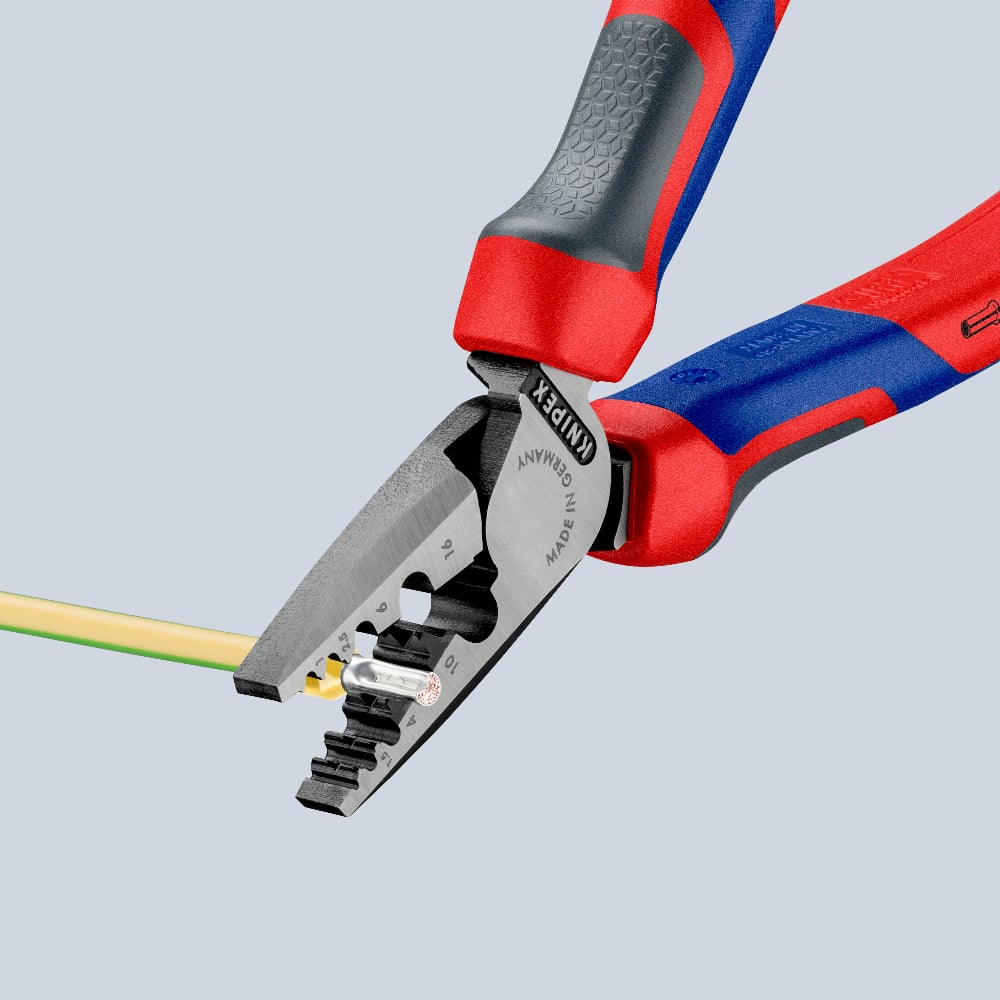

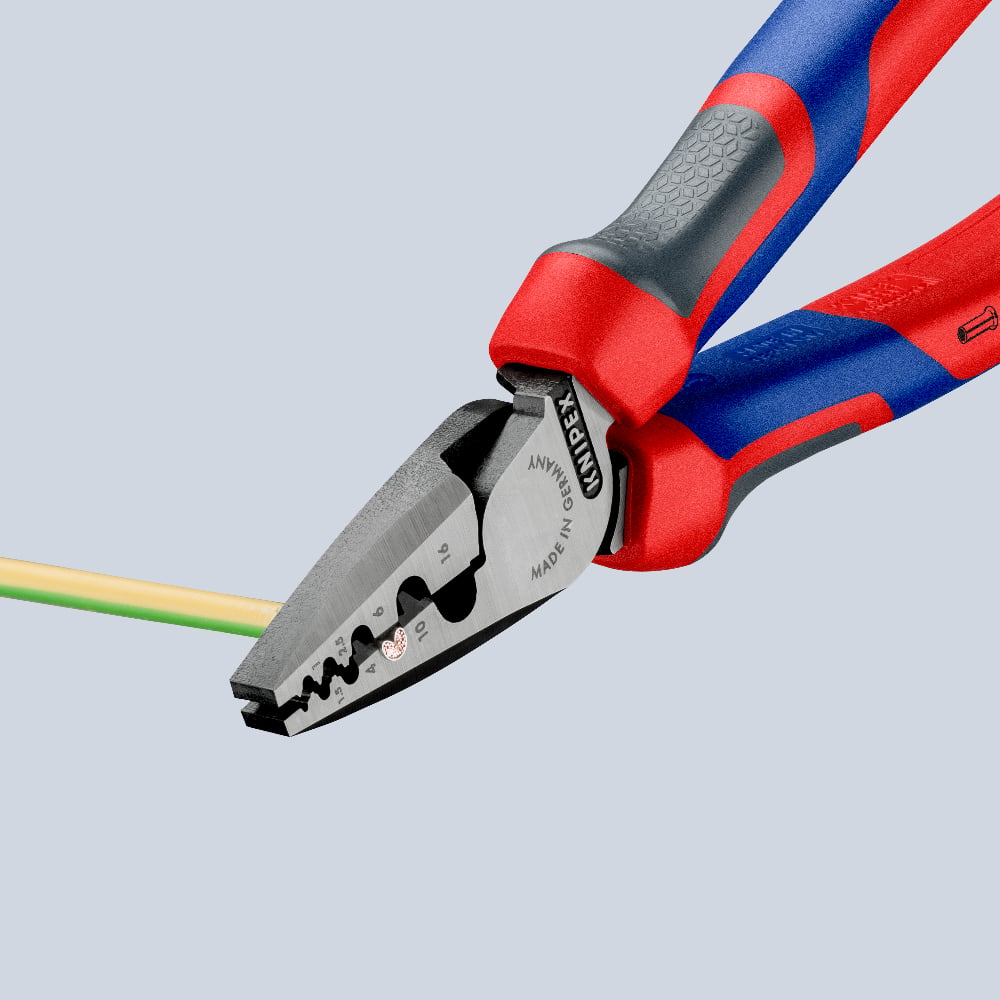

- Crimping in marked half-round dies for reliable connections between the sleeve and the conductor
- 9 particularly deep dies with conical side faces
- Special tool steel, forged, oil-hardened
Technical attributes
| Part No. | 97 72 180 |
|---|---|
| EAN | 4003773060185 |
| Head | polished |
| Handles | with comfort handles |
| Weight | 242 g |
| Dimensions | 180 x 55 x 21 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Application | Wire ferrules |
| Capacity in square millimetres | 0.25 — 16.0 mm² |
| Number of crimp profiles | 9 |
| AWG | 24 — 6 |
