Description

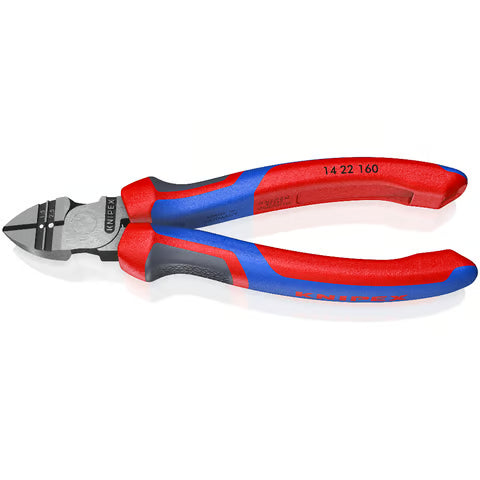

Diagonal Insulation Stripper
- With long cutter
- High cutting capacity due to high leverage joint

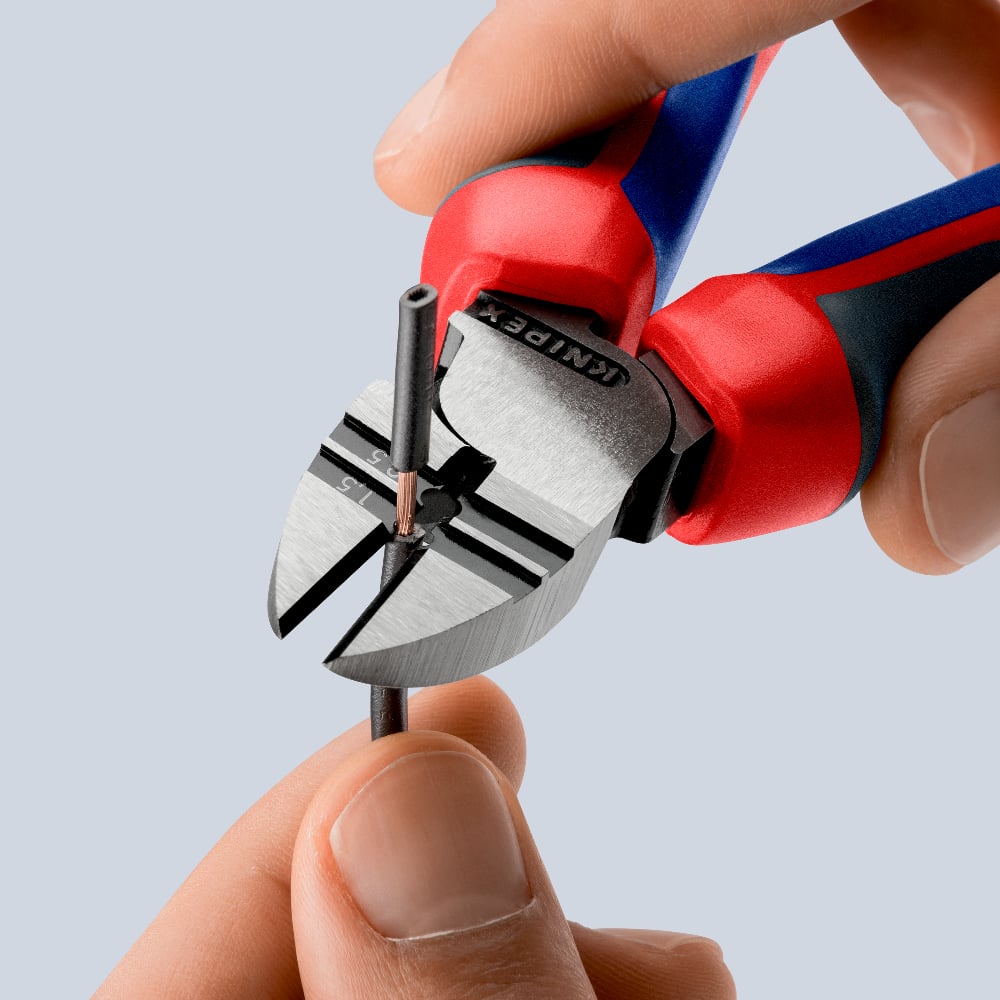

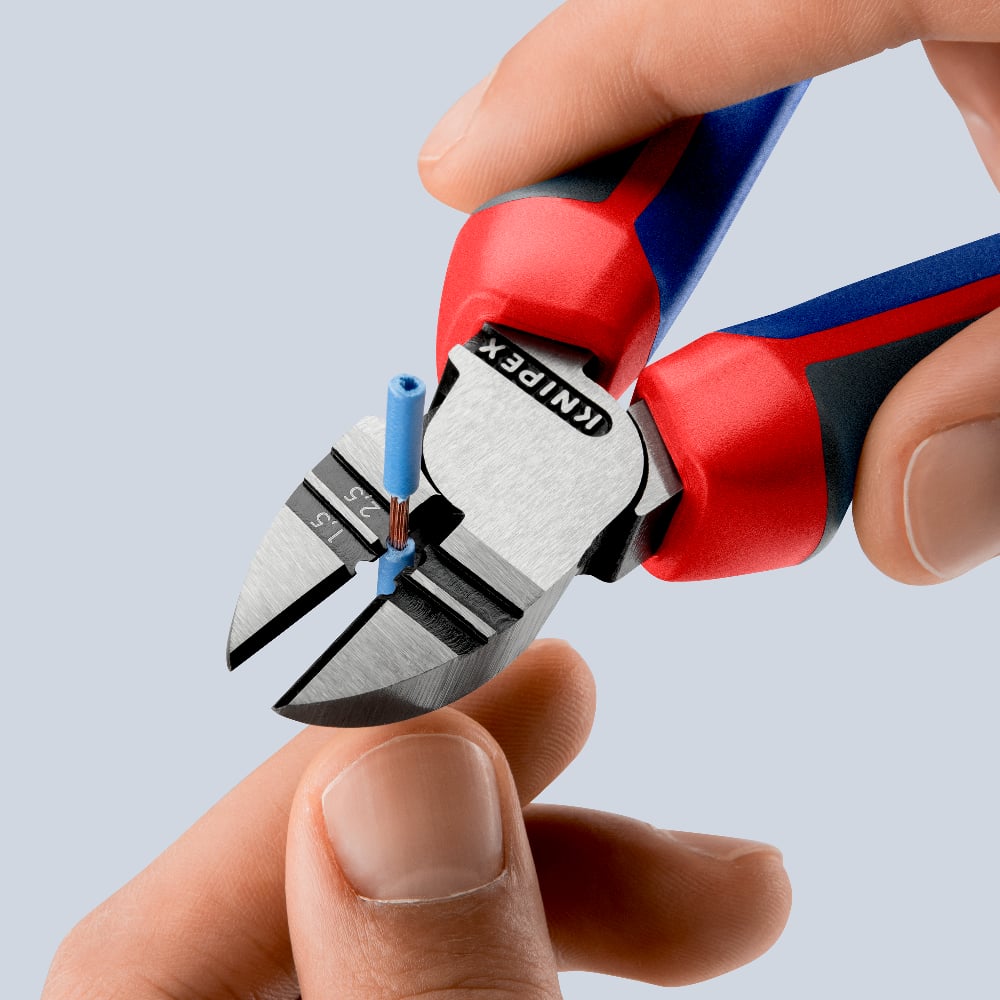

- Precision stripping holes for single conductors of 1.5 and 2.5 mm²

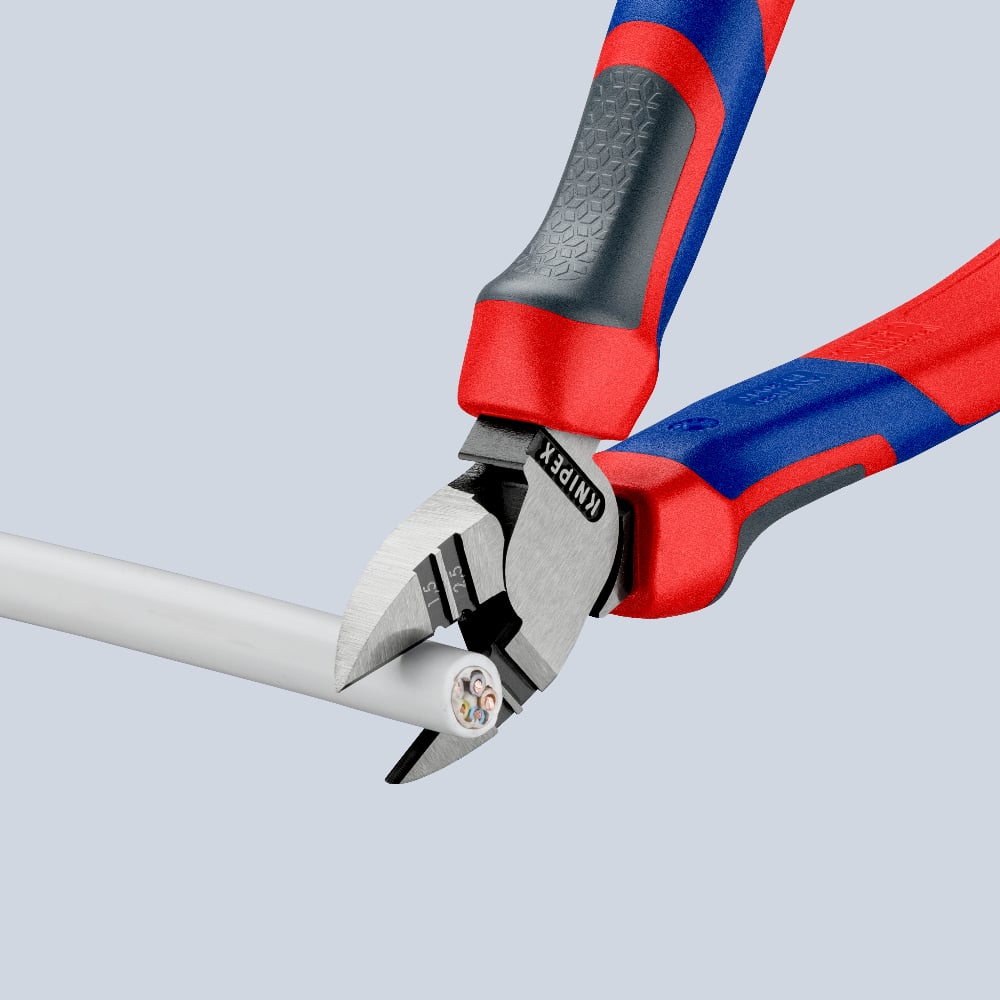

- Convenient cutting of NYM cables up to 5 x 2.5 mm²
- Long tips for ultra fine cutting work also in confined areas
- Induction-hardened precision blades, cutting edge hardness approx. 60 HRC
- With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Technical Attributes:
-
Article No.: 14 22 160
-
EAN: 4003773034988
-
pliers: black atramentized
-
head: polished
-
handles: with comfort handles
-
Weight: 206 g
-
Dimensions: 160 x 56 x 21 mm
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacities soft wire (diameter): Ø 2.5 mm
-
Cutting capacities medium hard wire (diameter): Ø 1.5 mm
-
Stripping capacities in square millimetres: 1.5 / 2.5 mm²
- AWG: 16 / 14
Documents:
Data Sheet
Technical attributes
| Part No. | 14 22 160 |
|---|---|
| EAN | 4003773034988 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with comfort handles |
| Weight | 206 g |
| Dimensions | 160 x 56 x 21 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 2.5 mm |
| Cutting capacities medium hard wire (diameter) | Ø 1.5 mm |
| Stripping capacities in square millimetres | 1.5 / 2.5 mm² |
| AWG | 16 / 14 |
