Description

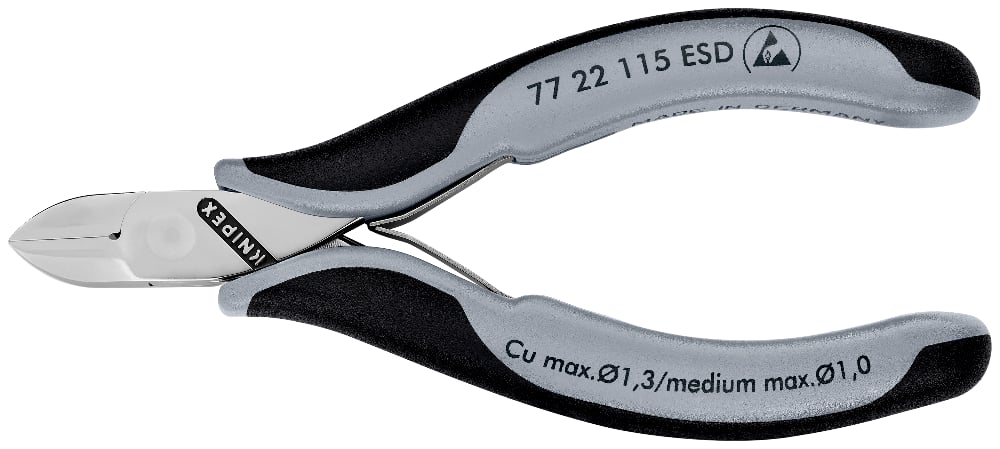

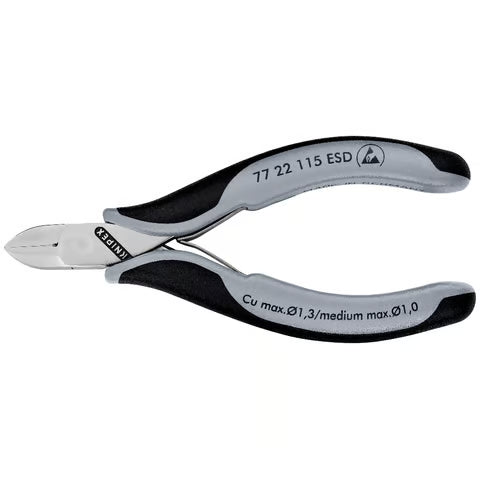

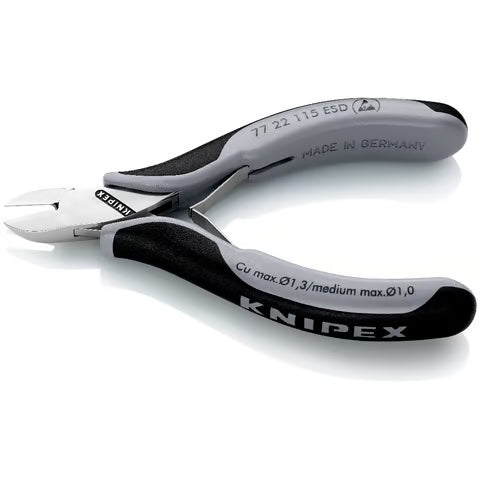

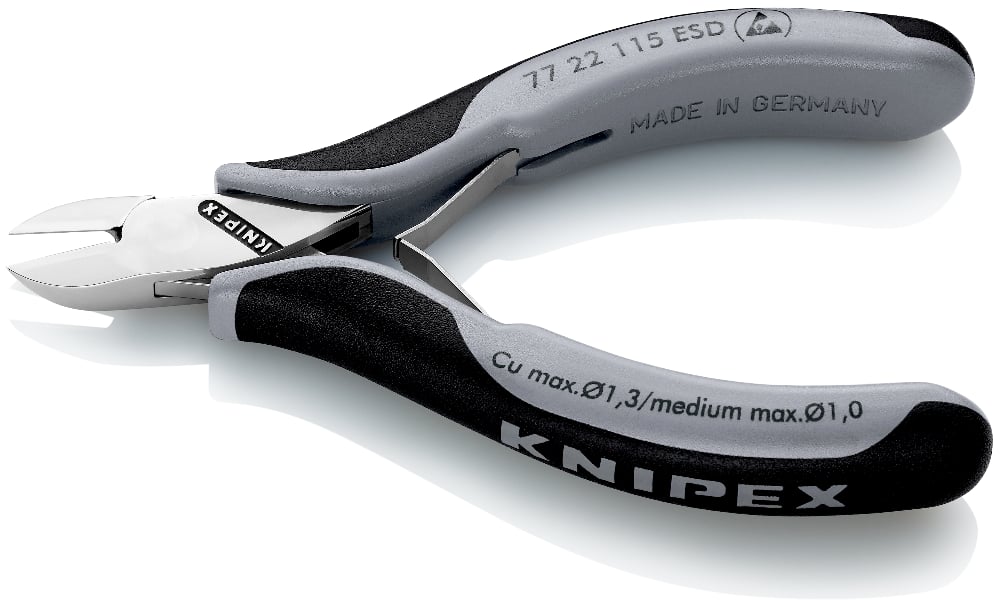

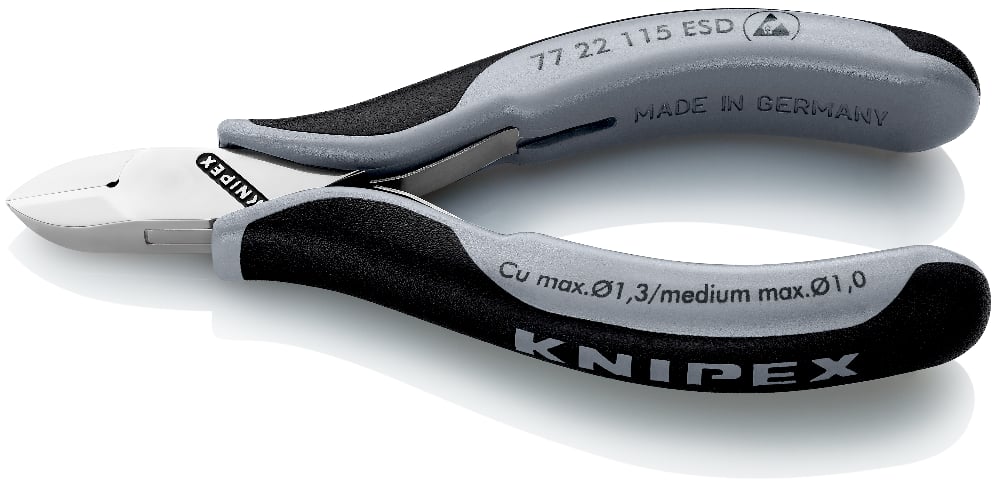

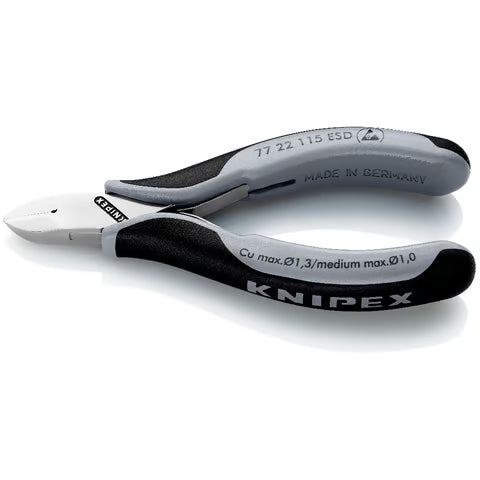

115mm Electronic Diagonal Cutter - Knipex #7722115 ESD
Features:
Features:
- For fine cutting work, e.g. in electronics and fine mechanics
- Electrically discharging handles - dissipative
- Sturdy, zero-backlash box joint
- Low-friction double spring for gentle and even opening
- The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutting edges additionally induction hardened, cutting edge hardness approx. 62 HRC
- With two-colour dual component grips, black/grey
- High-grade special tool steel, forged, oil-hardened
- Model:
- Round head, without bevel
ESD pliers (electrostatic discharge)
Electrostatic energy is discharged through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge in accordance with applicable standardsTechnical attributes
| Part No. | 77 22 115 ESD |
|---|---|
| EAN | 4003773025115 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 115 x 69 x 16 mm |
| Standard | DIN ISO 9654 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacities soft wire (diameter) | Ø 0.3 - 1.3 mm |
| Jaw length (B) | 14 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Head width (A) | 11 mm |
| ESD | yes |
