Description

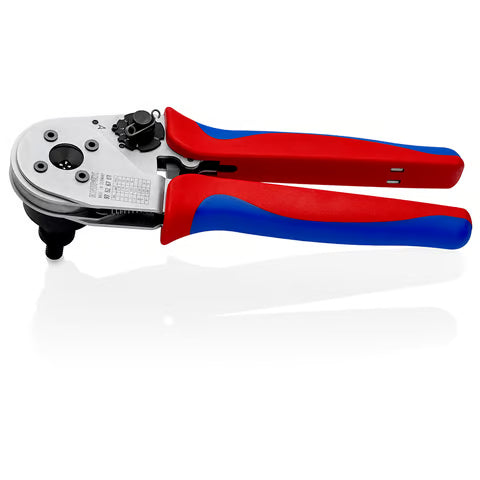

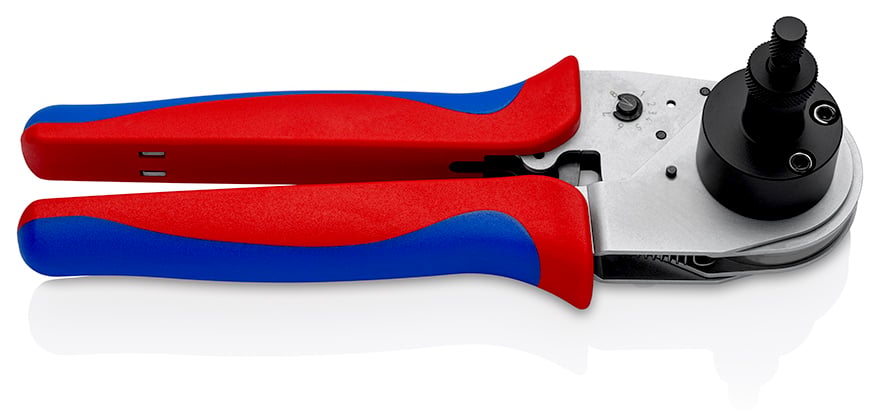

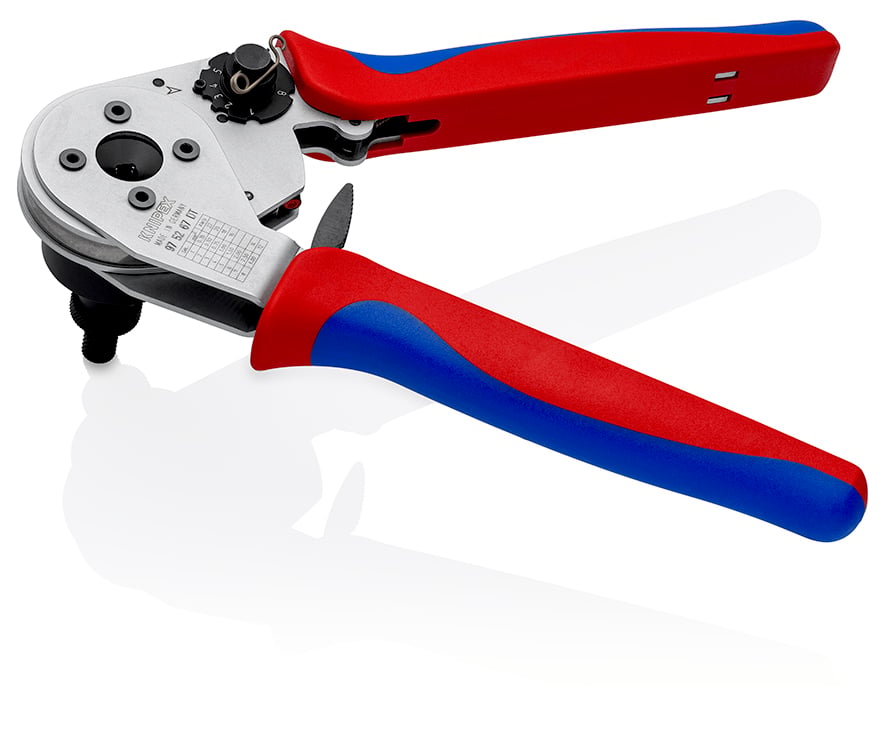

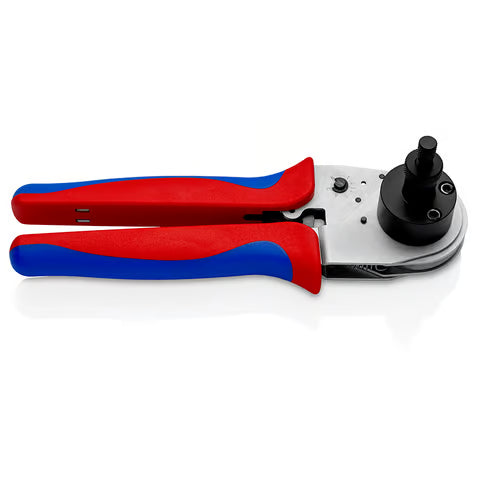

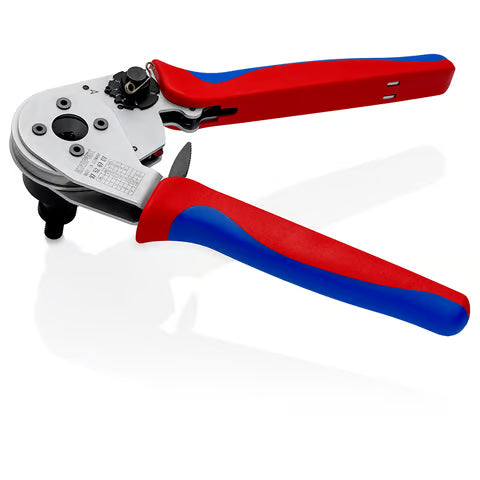

Four-mandrel crimping tool for DT contacts

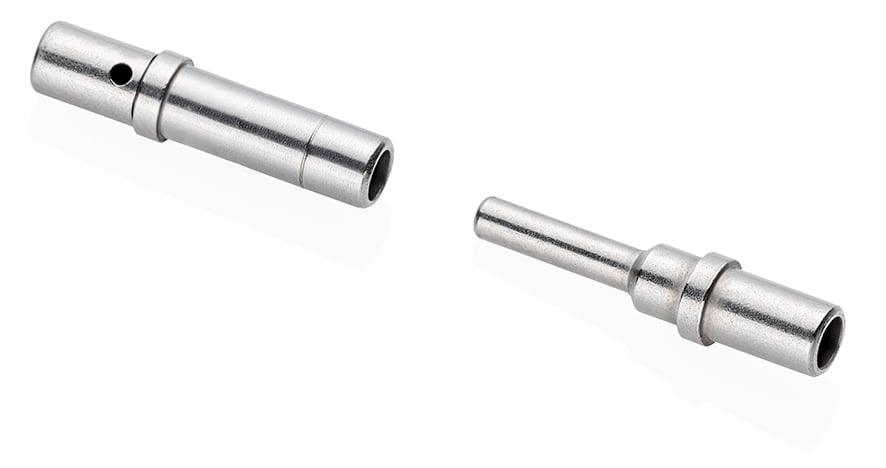

- Pressed all turned pin and socket contacts (formerly: German contacts) of the DT, DTM and DTP series
- Comprehensive capacity: from 0.35 mm² to 3.0 mm² (AWG 22 - 12)
- Complete: with high-precision ground Go/NoGo mandrels to control calibration
- Synchronous infeed of the four crimp mandrels achieves optimal crimping result with eight indentations (4/8 indent)
- Universal positioning aid for flexible adjustment of all contact lengths
- Consistently high crimp quality due to forced lock (unlockable)
- Selector positions for adjusting the crimp depth on the pliers are clearly readable
- Ergonomic design for low-fatigue working: optimized opening width, comfortable 2K handles, reduced hand force due to lever ratio
- Gauge mandrels included in the scope of delivery allow quick quality control at all times: Go mandrel must still fit, NoGo must not fit
Technical attributes
| Part No. | 97 52 67 DT |
|---|---|
| EAN | 4003773088820 |
| Weight | 650 g |
| Dimensions | 230 x 80 x 70 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
