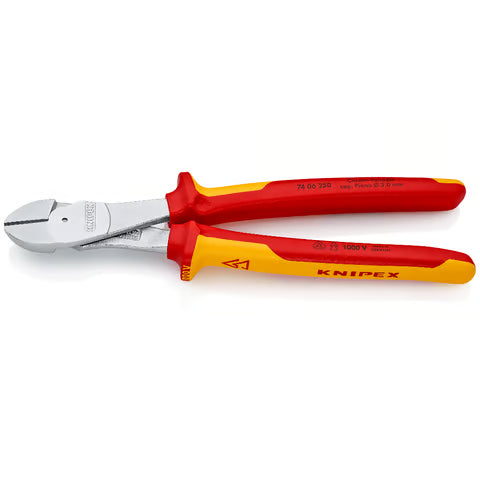

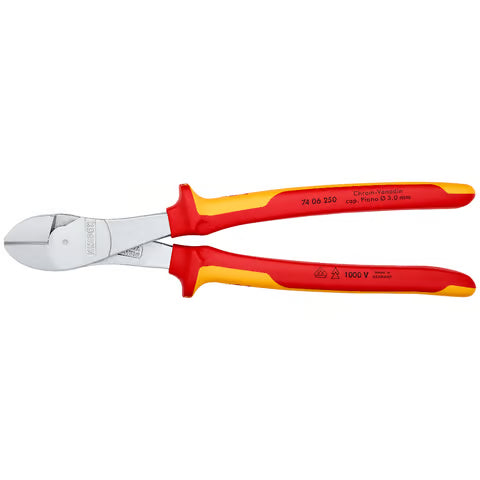

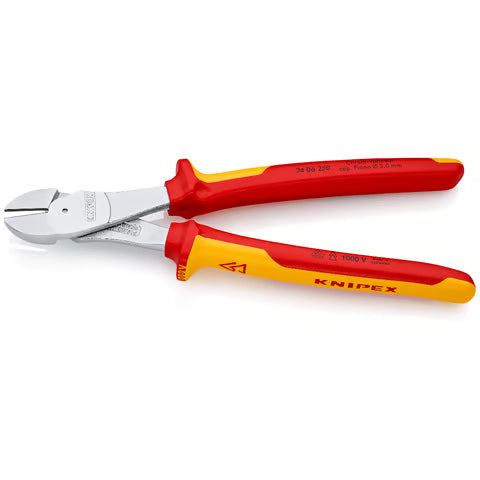

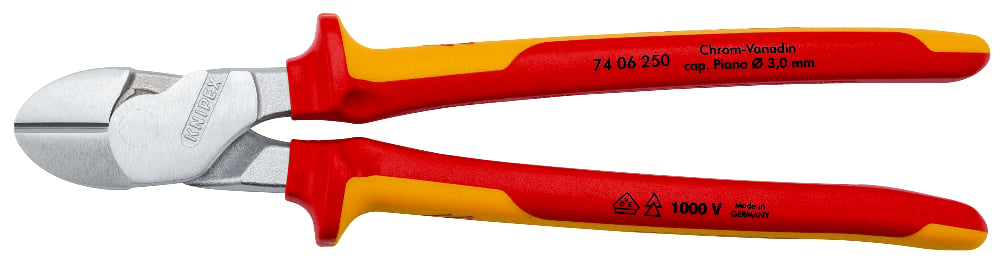

Description
- With integrated forged axle for heaviest duty
- Suitable for all types of wire including piano wire
- High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
- Chrome vanadium heavy-duty steel, forged, oil-hardened
- Length 250 mm:

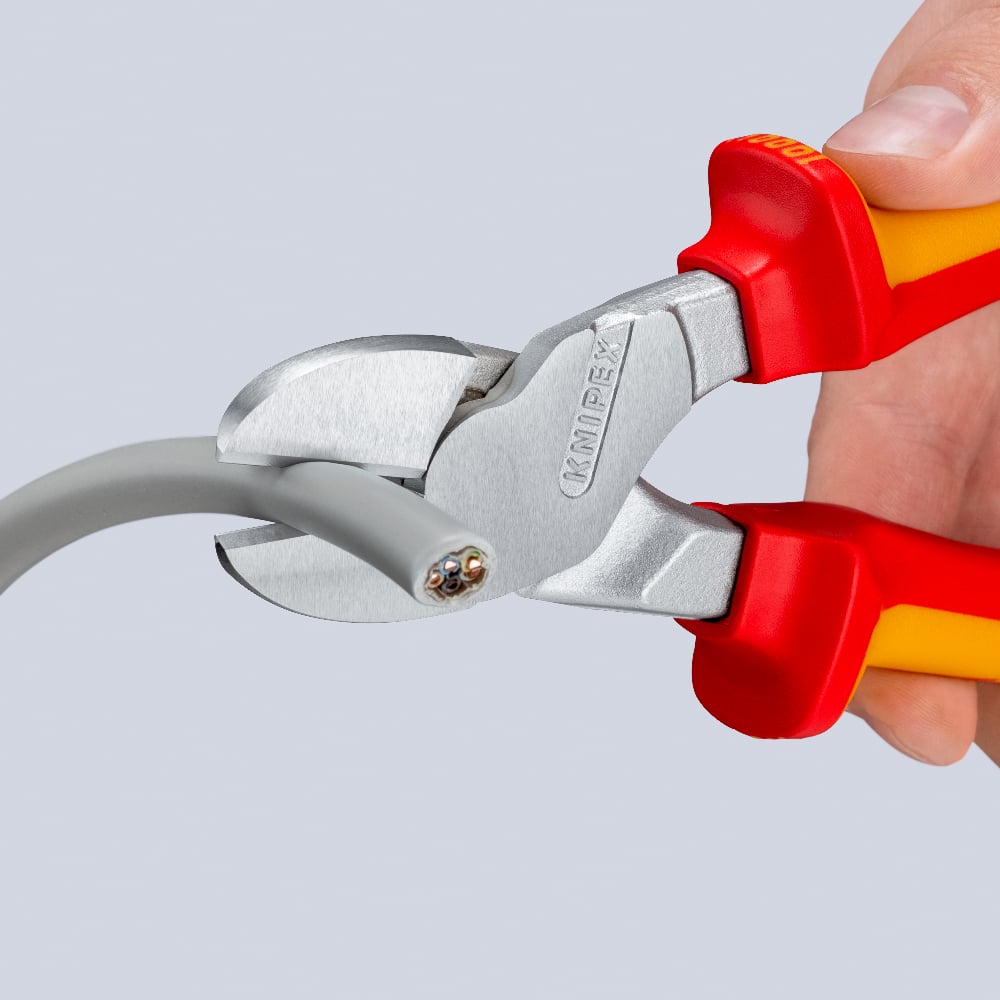

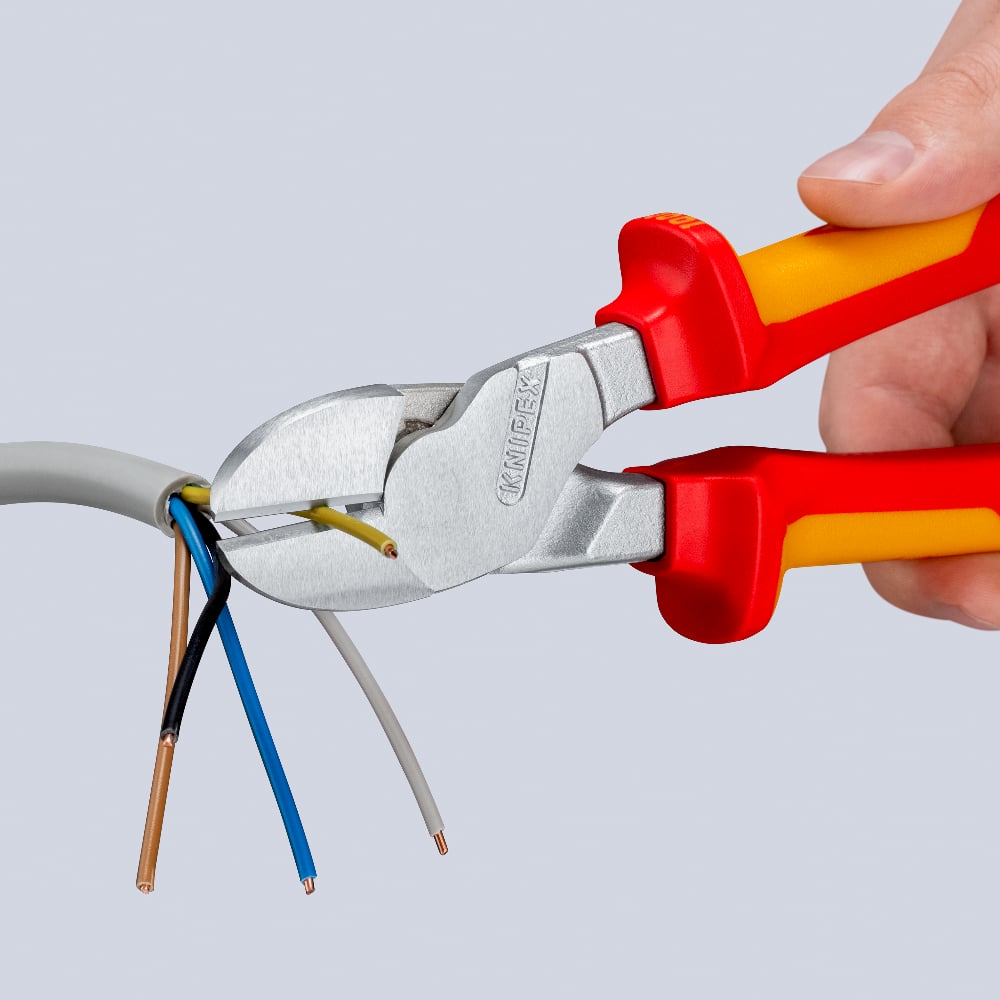

- The 250-mm-long diagonal cutter is suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm²
Technical attributes
| Part No. | 74 06 250 |
|---|---|
| EAN | 4003773041955 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 453 g |
| Dimensions | 250 x 63 x 22 mm |
| Standard | DIN ISO 5749 DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 4.6 mm |
| Cutting capacities hard wire (diameter) | Ø 3.5 mm |
| Cutting capacities piano wire (diameter) | Ø 3.0 mm |
| VDE tested | yes |
