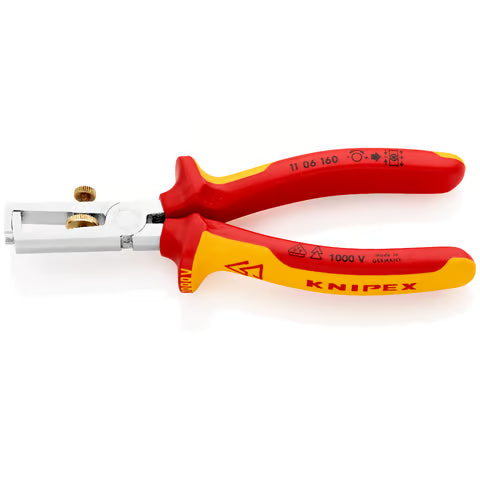

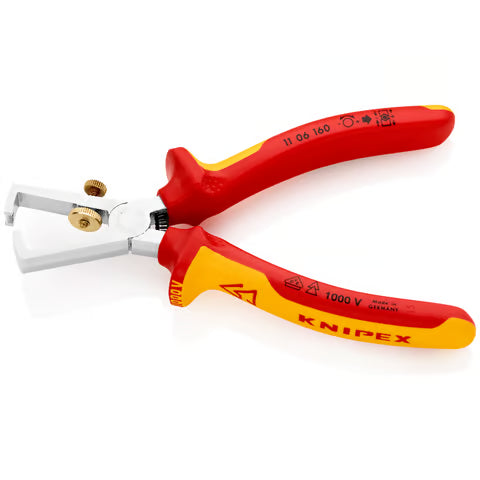

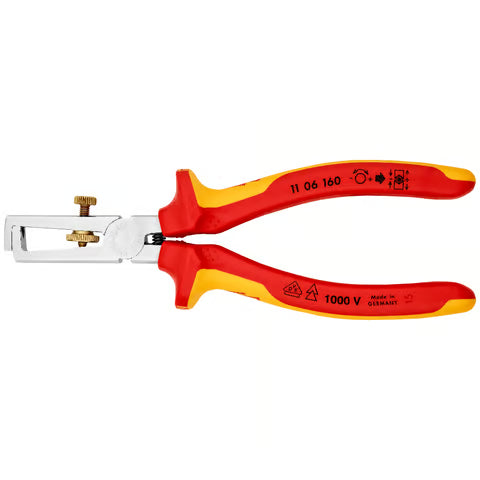

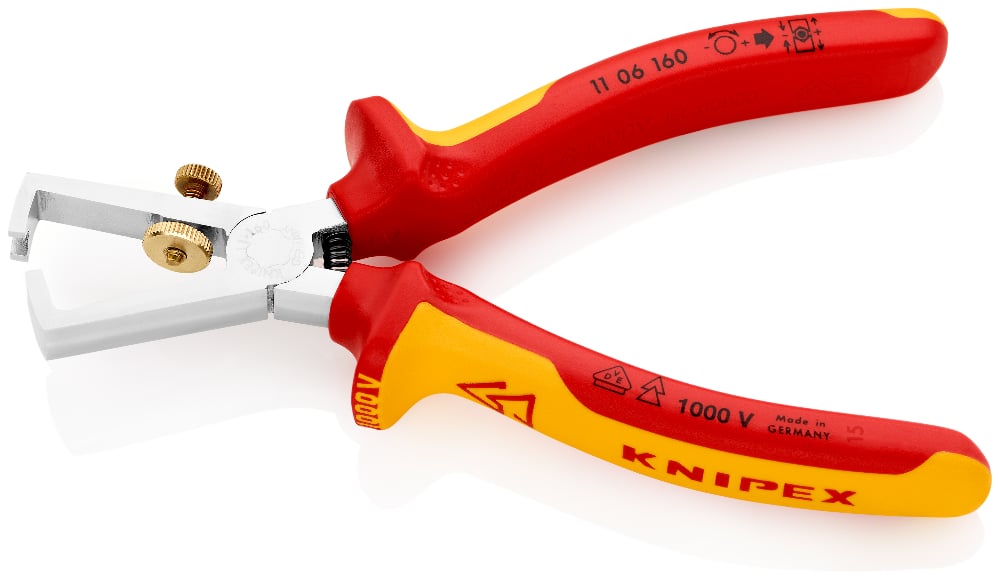

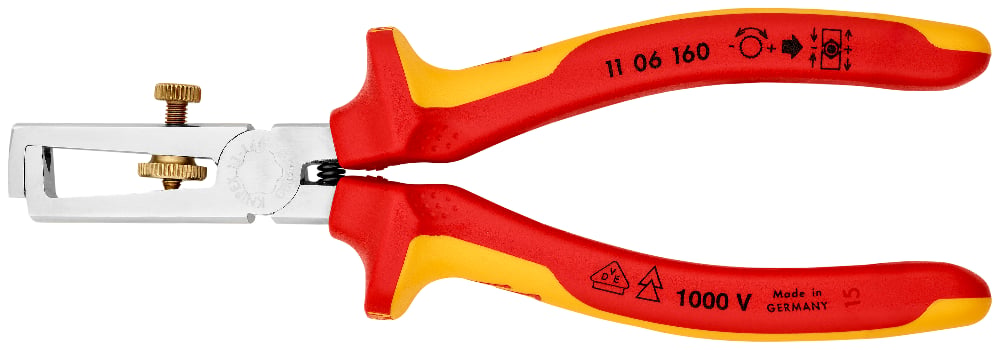

KNIPEX Insulation Stripping Pliers (VDE), 160mm

Insulation Stripper

With opening spring, universal

• For single, multiple and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm²

• Easy adjustment to the required diameter of stranded wire with knurled screw and lock nut

Technical Attributes:

• Article No.: 11 06 160

• EAN: 4003773021933

• pliers: chrome-plated

• head: chrome-plated

• handles: insulated with multi-component grips, VDE-tested

• Weight: 180 g

• Dimensions: 160 x 57 x 19 mm

• Standard: DIN EN 60900 IEC 60900

• REACH compliant: does not contain SVHC

• RoHS compliant: not applicable

• Stripping capacities (diameter): Ø 5.0 mm

• AWG: 8

• VDE tested: yes

VDE tested standard-wire strippers for standard insulation

For plastic and rubber insulation materials

As standard wire strippers, the insulated and VDE tested Knipex 11 06 160 are mainly used for wiring frequently laid NYM cable (NYM stands for “standardised cable / PVC wire insulation / sheathed cable“). Fitters who want to wire a large number of sockets in one work step while consistently stripping wires with 1.5 mm², for example, have the right tool to hand to remove the insulation from conductors up to Ø 5 mm or a 10 mm² conductor cross-section.

These pliers are also the right tool for stripping flexible conductors in rubber cable as connection or extension lead.

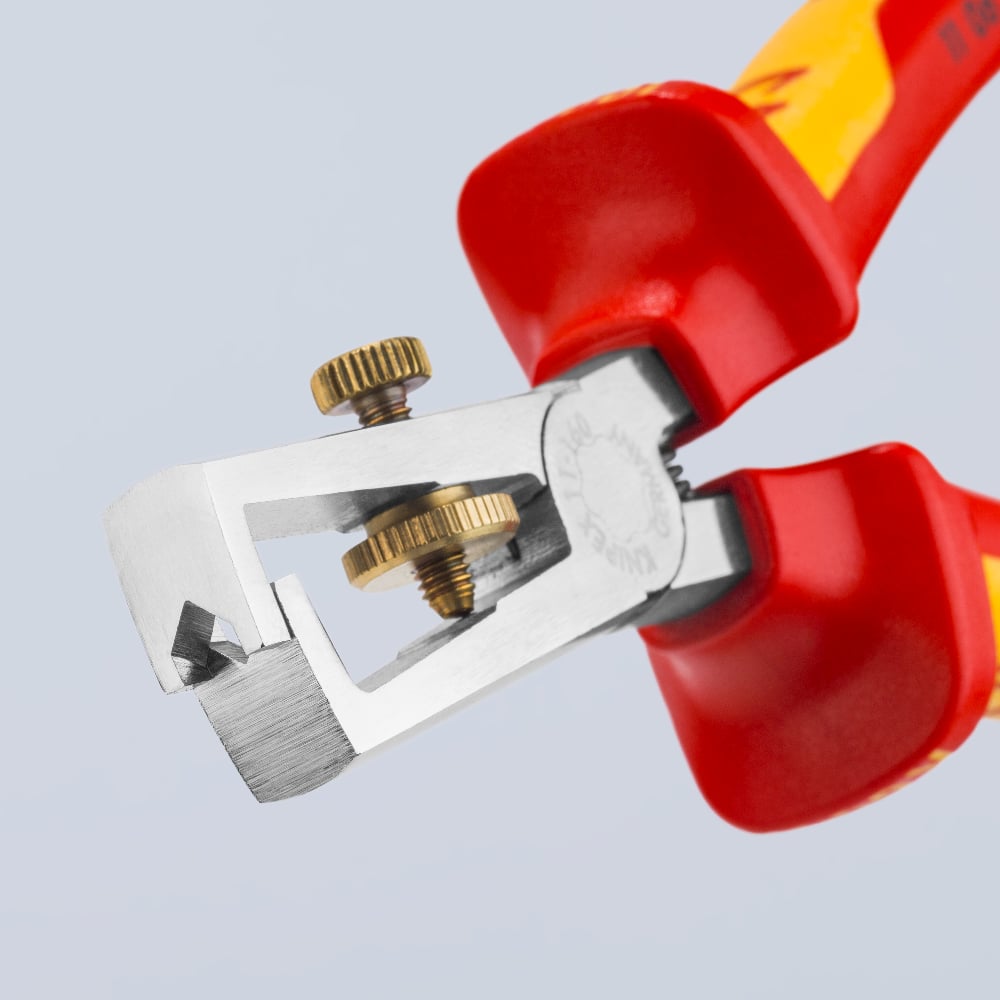

Proven knurled screw for adjusting the conductor cross-section

The pliers are set to the conductor cross-section using the knurled screw so that only the insulation is cut into without damaging the conductor. The knurled screw is secured with the inset lock nut to maintain the precise adjustment even during longer periods of work. This simple technology has been tried and tested by electricians for decades.

With strong construction for long tool life, convenient to use

Knipex 11 06 160 wire strippers are forged from special tool steel and additionally oil-hardened. The opening spring nestles the pliers gently in the user’s hand, thereby substantially reducing strain in hand muscles when holding the pliers tight. The chrome plating protects against corrosion, e.g. if the pliers are kept permanently in a range of tools stored in the company vehicle where temperature changes can lead to moisture (condensation) forming on the tool. Thanks to this machining and finishing step, when used correctly this prepares the pliers for a long tool life. With their multi-component grips, these wire strippers sit comfortably in the hand.
