Description

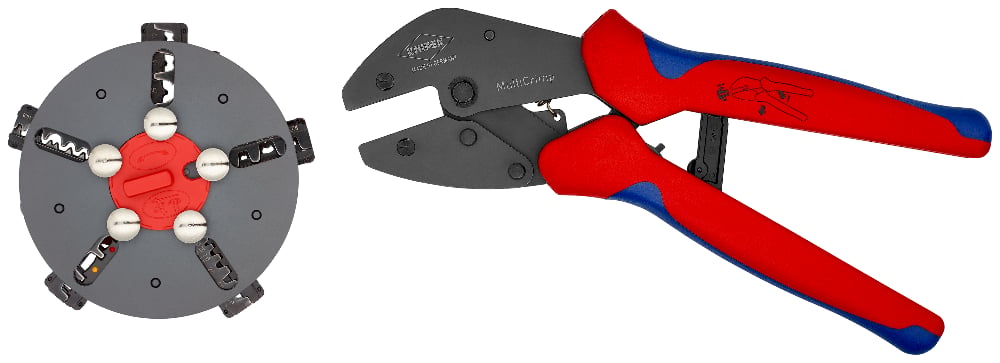

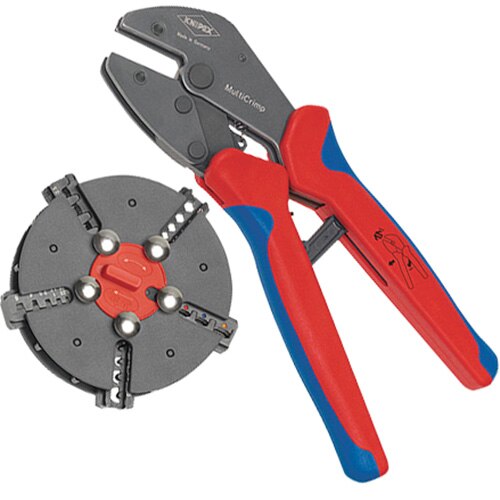

Crimping pliers with changer magazine and 5 crimping dies.

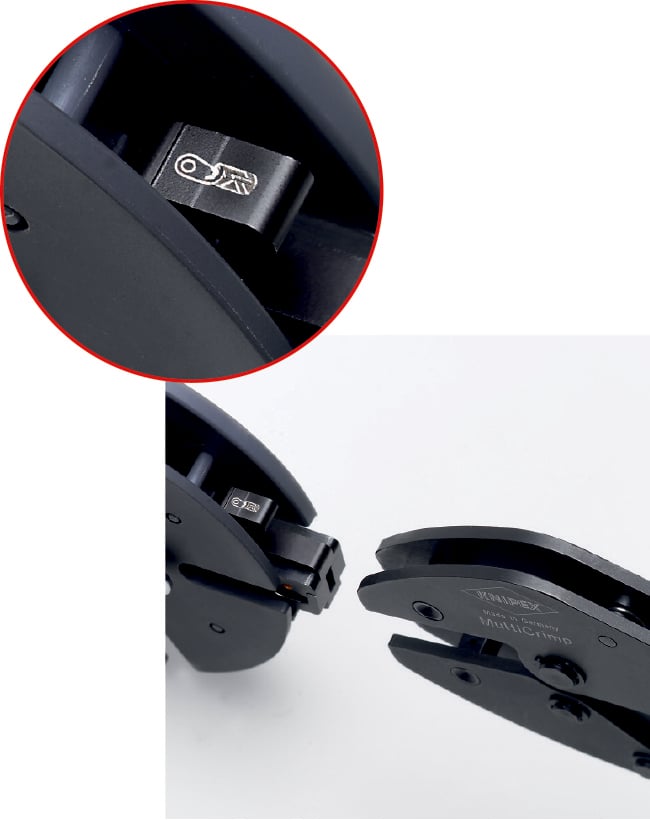

Changing the crimping dies: unlock the magazine position, take out the set of dies which the pliers have been pushed on
Fold in the service lever and press the pliers – ready for use again
- Just one tool for the most common crimping applications
- Crimping dies changed quickly and easily without any additional tool
- Sorted and protected storage of the interchangeable dies in a round magazine
- Comfortable, powerful crimping pliers in professional quality
- Same reliable crimping results as with fixed crimping dies
- Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)
- Chrome vanadium electric steel in special quality, oil hardened
- Round magazine: plastic, fibreglass-reinforced
- Crimping pliers with round magazine and five interchangeable dies for non-insulated open plug type connectors (plug width 4.8 + 6.3mm) from 0.5 - 6mm²; for insulated terminals, plug connectors and butt connectors from 0.5 - 6mm²; for insulated and non-insulated end sleeves (ferrules) from 0.25 - 6mm²; for insulated and non-insulated end sleeves (ferrules) with 10 / 16 / 25mm² and for non-insulated crimp terminals. tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267
Made by Knipex, Germany
Changing the crimping dies: unlock the magazine position, take out the set of dies which the pliers have been pushed on
Fold in the service lever and press the pliers – ready for use again
Technical attributes
| Part No. | 97 33 02 |
|---|---|
| EAN | 4003773066934 |
| Pliers | burnished |
| Handles | with multi-component handles |
| Weight | 870 g |
| Dimensions | 250 x 75 x 28 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated open plug type connectors - plug width 4.8 + 6.3 mm |
| Capacity in square millimetres | 0.5 — 6.0 mm² |
| Number of crimp profiles | 5 |
| AWG | 20 — 10 |
