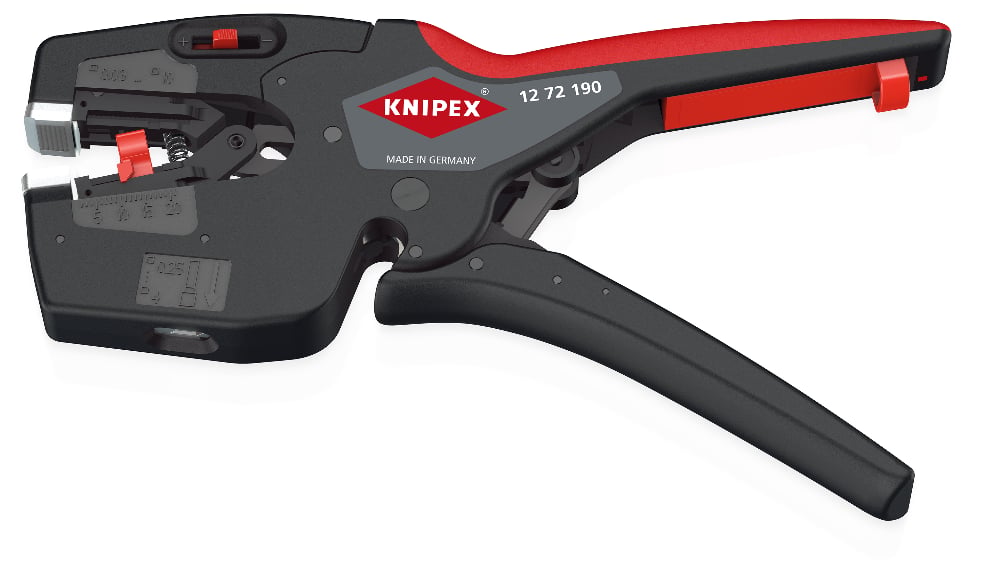

KNIPEX NexStrip Multi-Tool for Electricians, 190mm

KNIPEX NexStrip®

Multi-Tool for Electricians

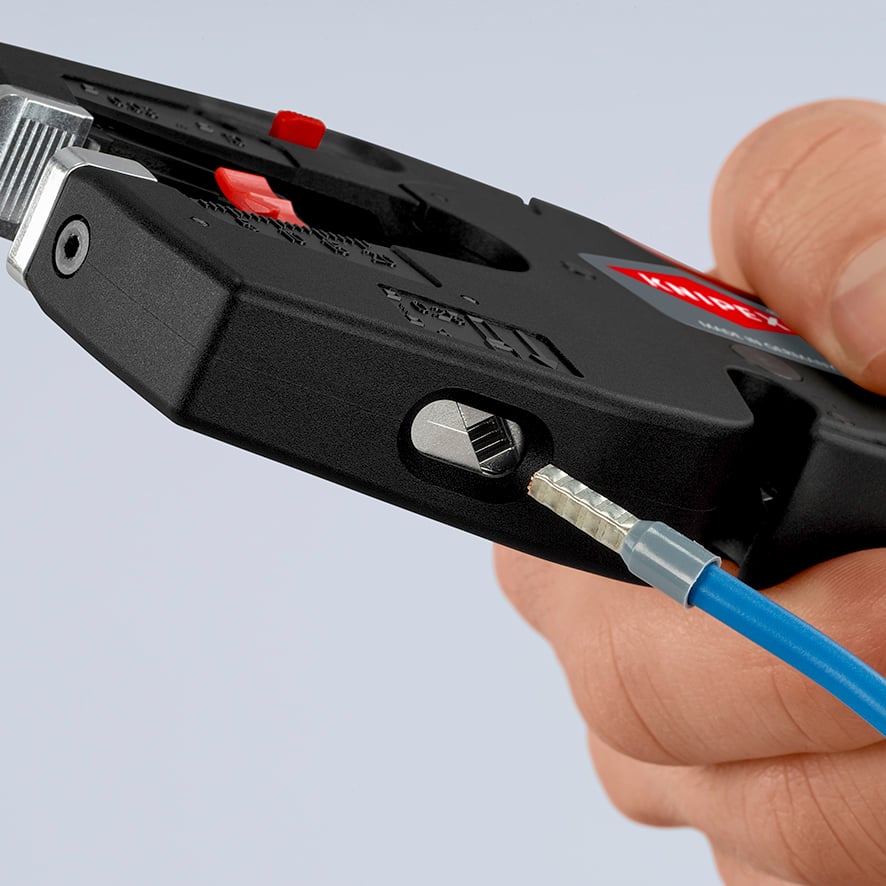

• Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure

• Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work

• Multi-component grips ensure non-slip, comfortable handling

• Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes

• Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle

• Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8)

• Clean cut of copper and aluminum conductors fine-stranded up to 10 mm² (AWG 8), solid up to 6 mm² (AWG 10)

• High-quality housing made of glass fibre reinforced plastic

• For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller)

Technical Attributes:

• Article No.: 12 72 190

• EAN: 4003773088165

• handles: with non-slip plastic grips

• Weight: 170 g

• Dimensions: 190 x 17 x 110 mm

• REACH compliant: contains SVHC

• RoHS compliant: not applicable

Documents:

Product Manual

Data Sheet

Technical attributes
