Description
- Box-joint design: highest stability with low weight
- Doubly supported joint axis for heaviest duty
- High cutting capacity with very little effort thanks to the optimum coordination of cutting-edge angle and leverage ratio with laterally staggered pivot point
- 40% less effort required compared to diagonal cutters of the same length
- Large opening width for thicker cables

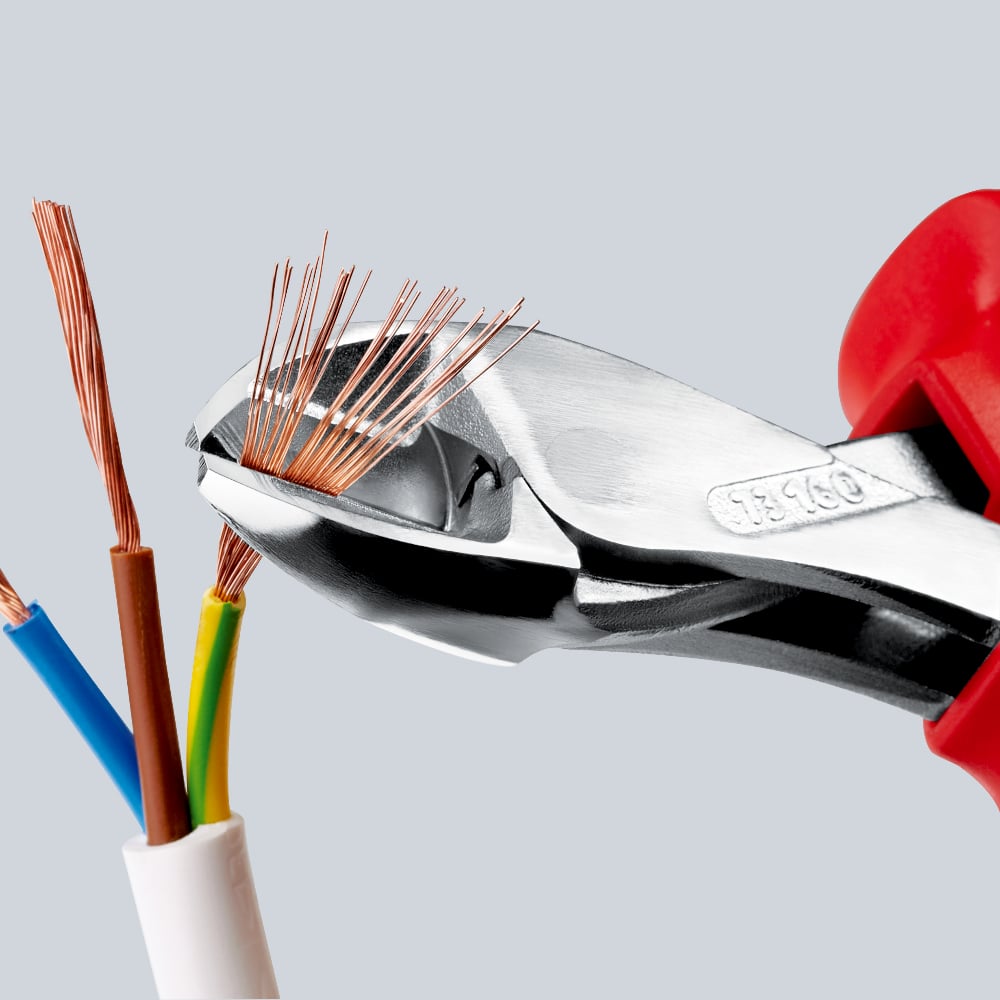

- Cuts precisely, even through fine copper wires
- Compact, low-weight construction
- universally usable, in the assembly, maintenance and production
- Chrome vanadium heavy-duty steel, forged, oil-hardened
Technical attributes
| Part No. | 73 02 160 |
|---|---|
| EAN | 4003773075127 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 175 g |
| Dimensions | 160 x 60 x 21 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø max. 4.8 mm |
| Cutting capacities medium hard wire (diameter) | Ø 3.8 mm |
| Cutting capacities hard wire (diameter) | Ø 2.7 mm |
| Cutting capacities piano wire (diameter) | Ø 2.2 mm |
| Cutting capacity copper cable, multiple-stranded | Ø 12.0 mm |
