Description
Overview:
Application:

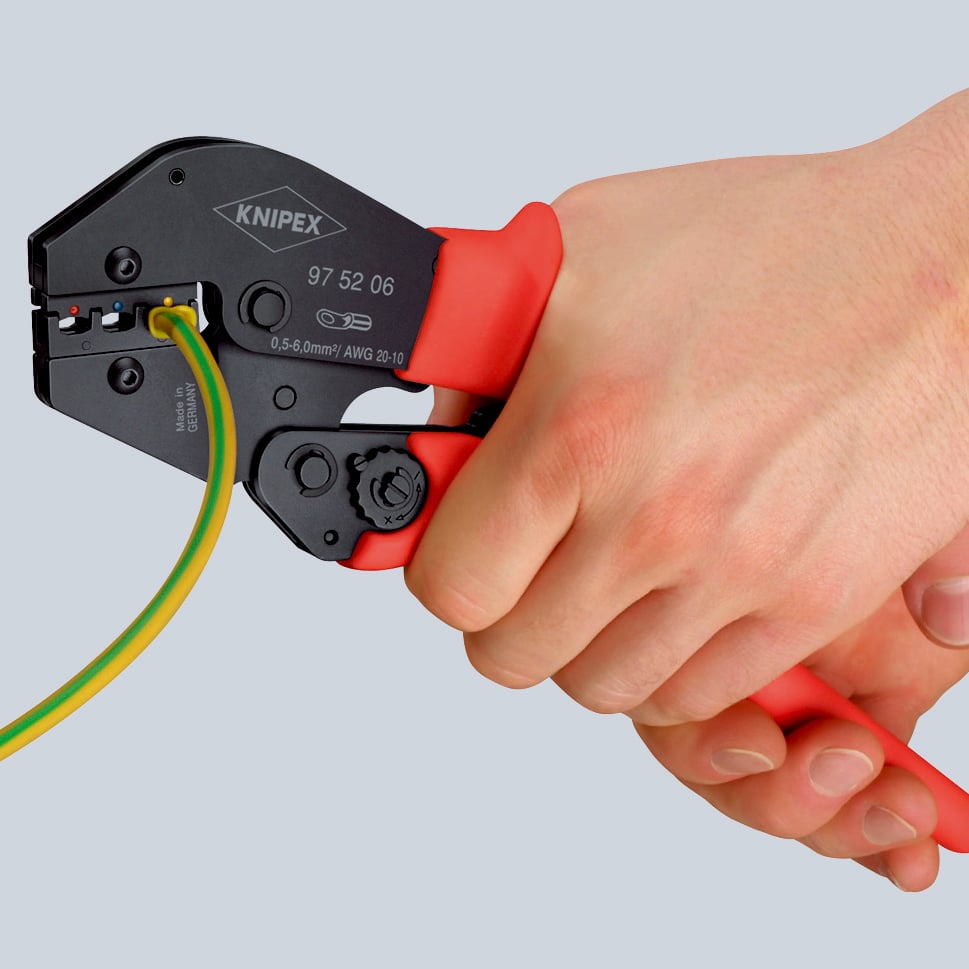

First step: move the handle with two fingers only until both jaws touch the connector to be crimped
Second step: now use the whole hand for further crimping procedure
Third step: when greater hand force is required, such as e.g. when crimping insulated connectors 6.0 mm², two-hand operation is possible by the longer handles
- For solder-free electrical connections
- The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers
- Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)
- Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
- Two-hand operation for easy crimping of large conductor diameters
- Easy handling as a result of well balanced centre of gravity, angled head and ergnomically shaped handles
- Chrome vanadium electric steel in special quality, oil-hardened
Application:
First step: move the handle with two fingers only until both jaws touch the connector to be crimped
Second step: now use the whole hand for further crimping procedure
Third step: when greater hand force is required, such as e.g. when crimping insulated connectors 6.0 mm², two-hand operation is possible by the longer handles
Technical attributes

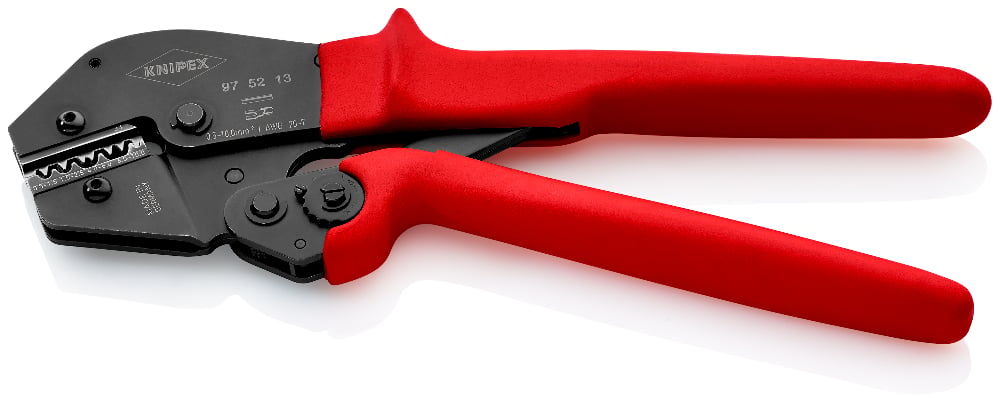

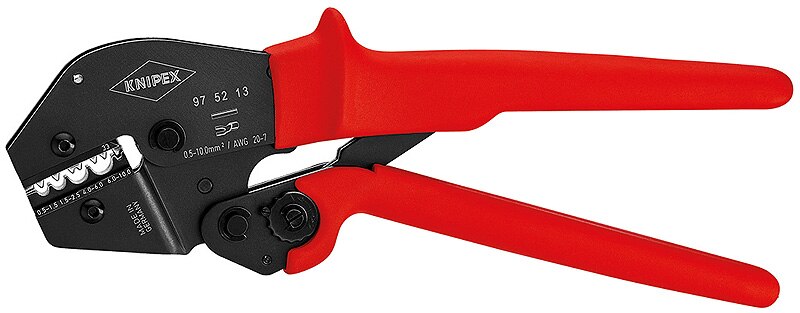

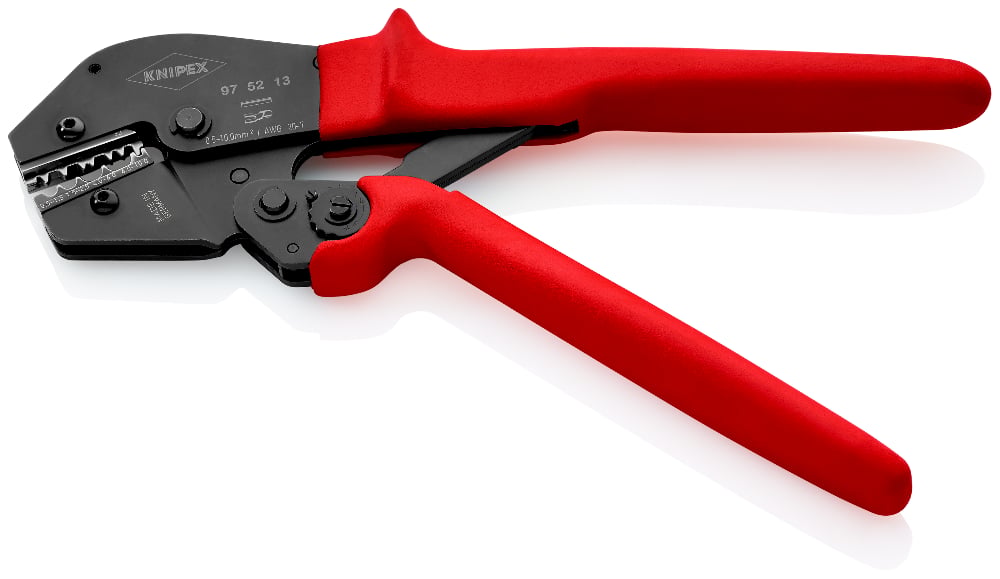

| Part No. | 97 52 13 |
|---|---|
| EAN | 4003773048084 |
| Pliers | burnished |
| Head | burnished |
| Handles | with non-slip plastic grips |
| Weight | 558 g |
| Dimensions | 250 x 77 x 24 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated terminals |
| Capacity in square millimetres | 0.5 — 10 mm² |
| Number of crimp profiles | 4 |
| AWG | 20 — 8 |
