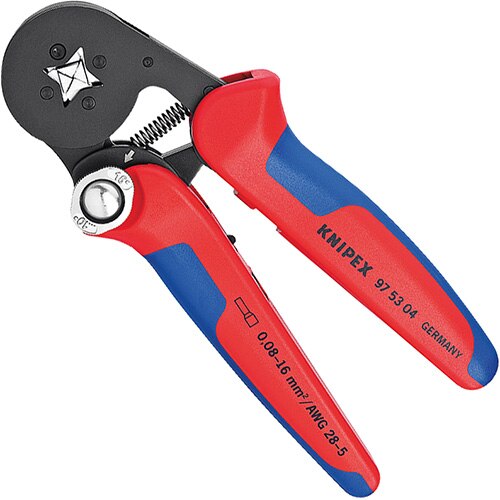

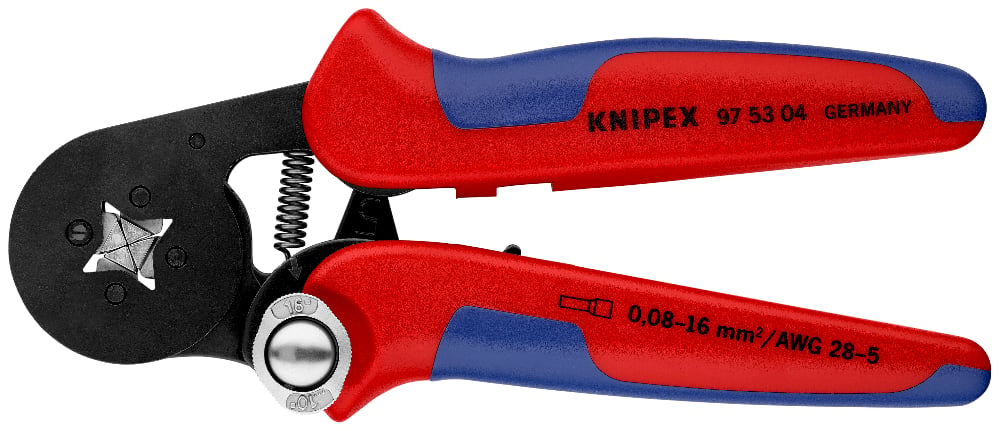

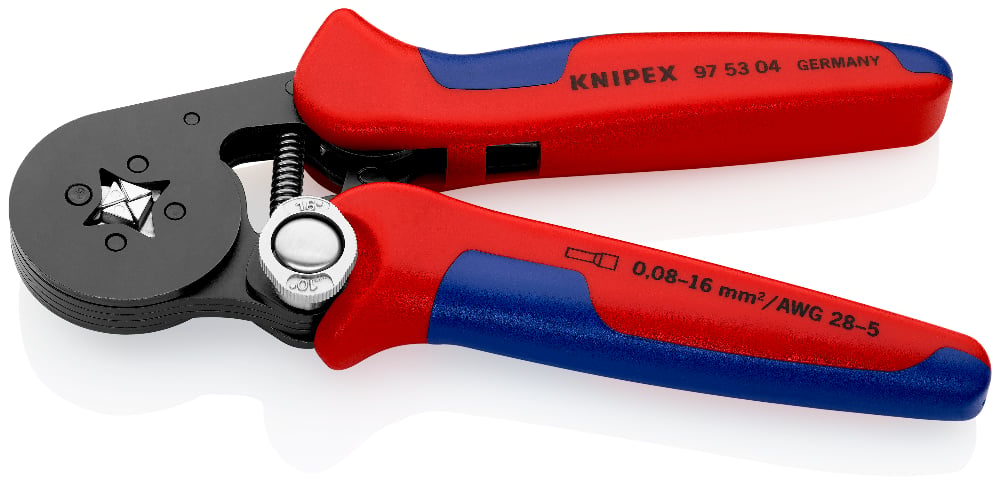

Description
- Narrow handle width and improved ergonomics

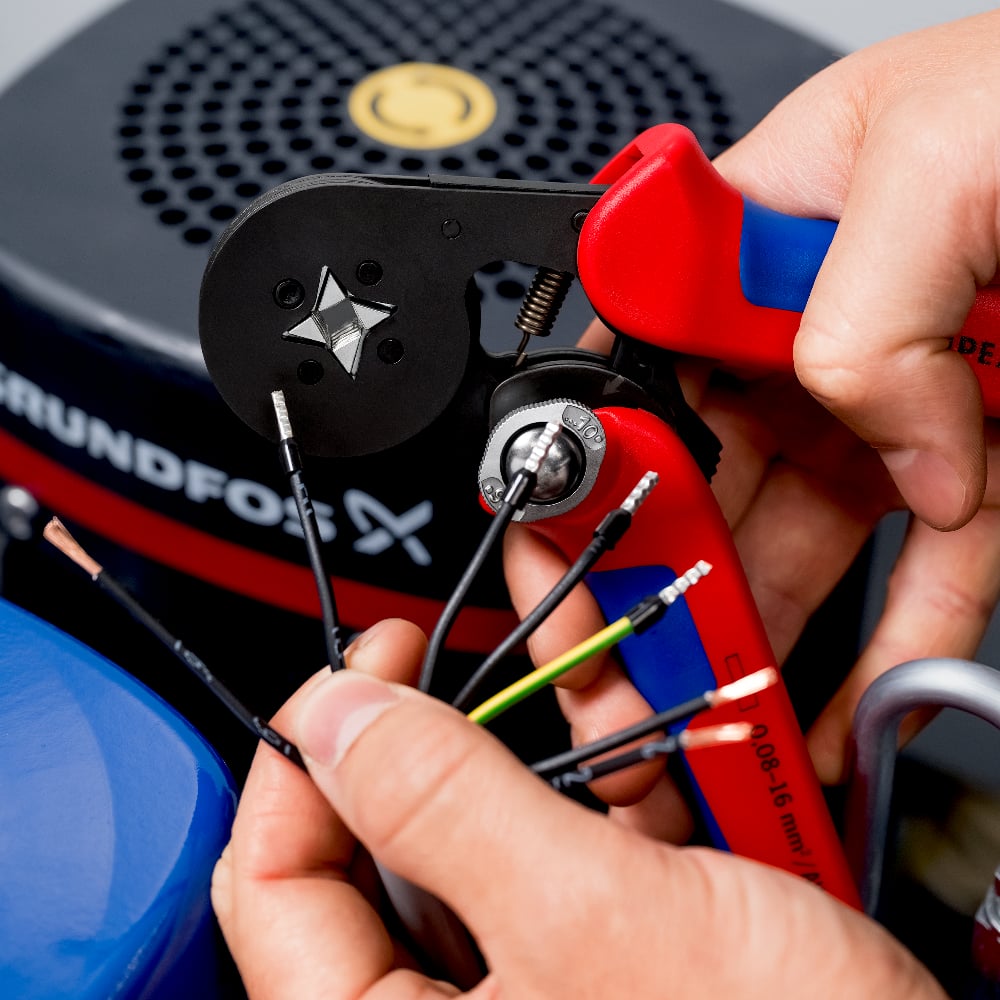

- For crimping end sleeves (ferrules) according to DIN 46228 parts 1+4
- Self-adjustment to the size of end sleeves (ferrules) required
- Fits all twin- ferrules within the application range
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Tools have been set precisely (calibrated) in the factory
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Handy shape and low weight provide high operation comfort
- Chrome vanadium electric steel in special quality, oil-hardened
- Model:
- Manual force reduced by 20%
- Square compression now additionally also for end sleeves (ferrules) up to 16 mm²
- Square compression for ideal contact surfaces in the clamp connection
Technical attributes
| Part No. | 97 53 04 |
|---|---|
| EAN | 4003773028017 |
| Pliers | burnished |
| Handles | with multi-component handles |
| Weight | 459 g |
| Dimensions | 180 x 77 x 21 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | Wire ferrules |
| Capacity in square millimetres | 0.08 — 16 mm² |
| Number of crimp profiles | 1 |
| AWG | 28 — 6 |
