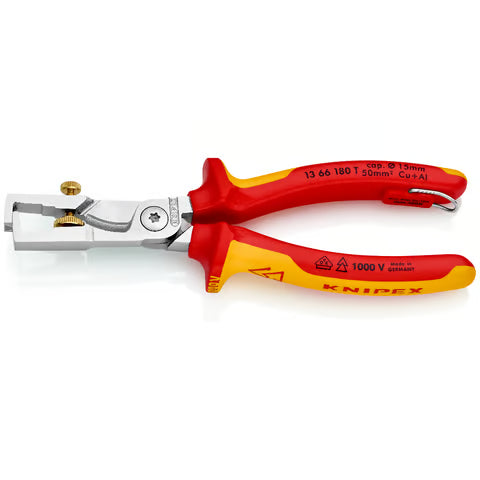

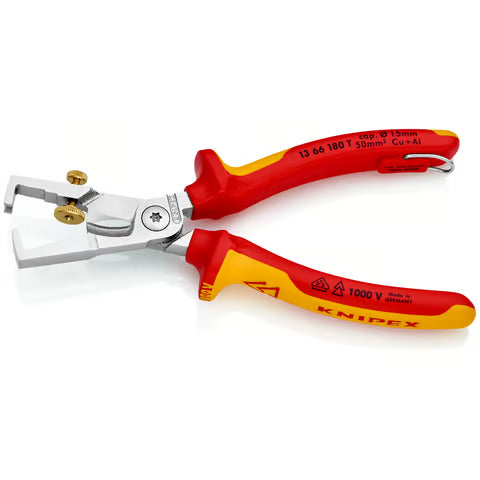

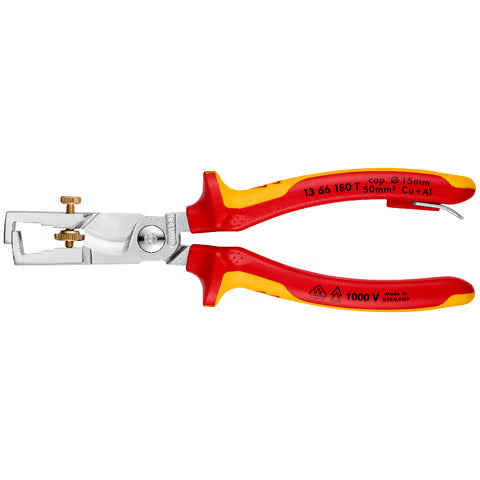

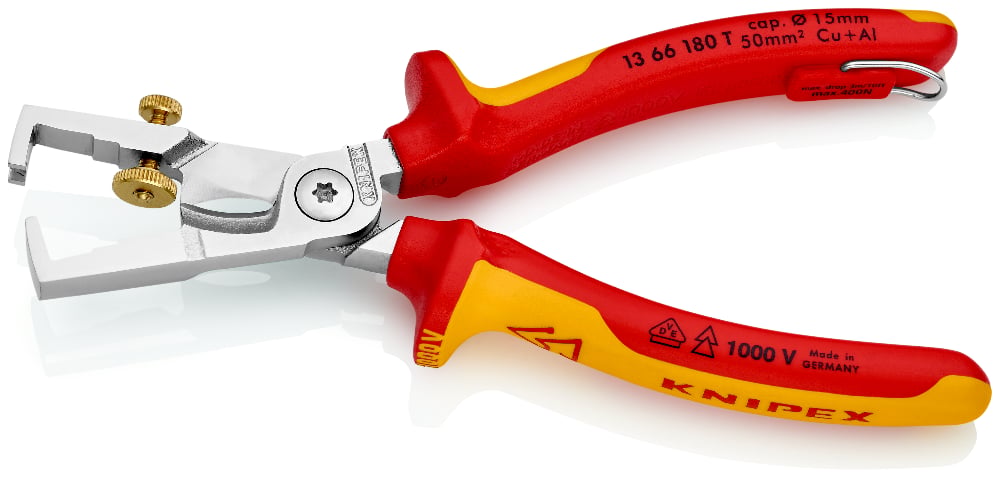

KNIPEX StriX Insulation Stripping Pliers (VDE) w/ Tether Attachment

KNIPEX StriX®

Insulation strippers with cable shears

• Wire stripper with cable shears – two essential electrical installation tools in one pair of pliers

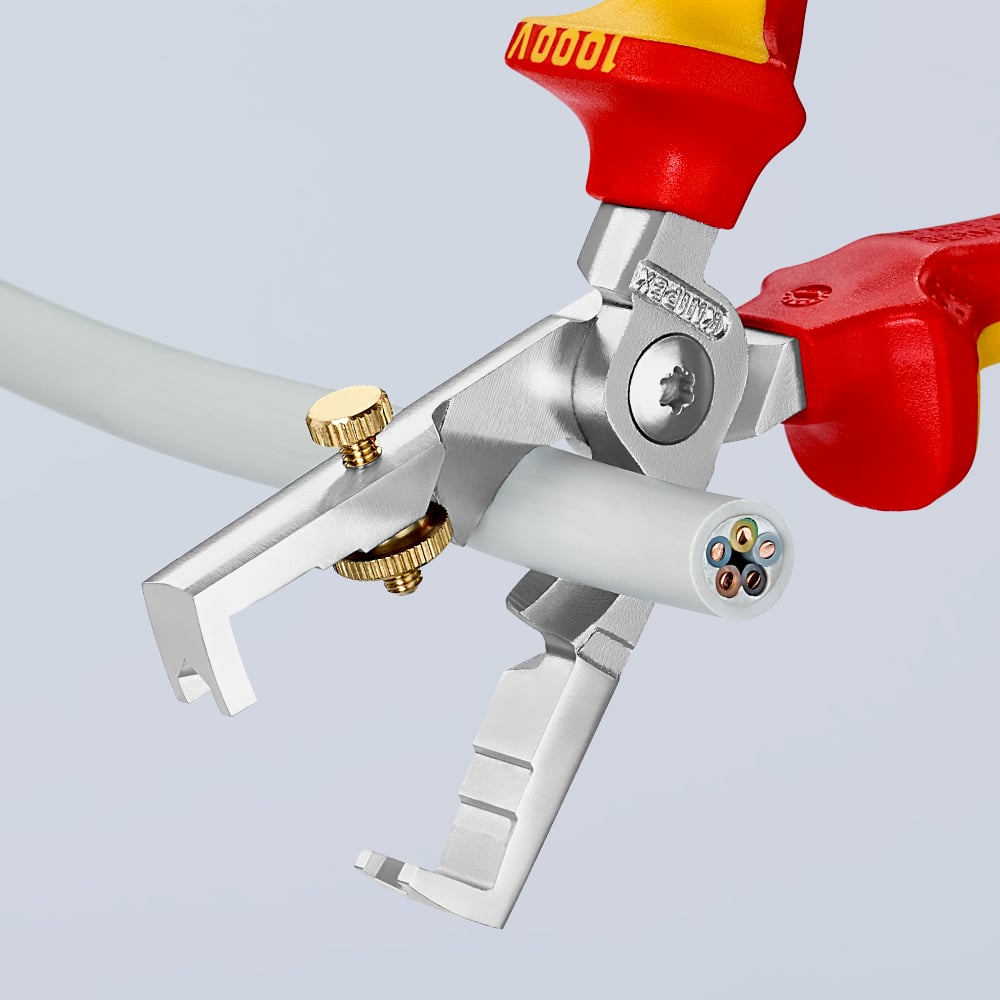

• Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing up to Ø 15 mm (5 x 2,5 mm²)

• Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC

• Universal adjustment of the stripping blades by means of a knurled screw

• Slim dimensions for easy access

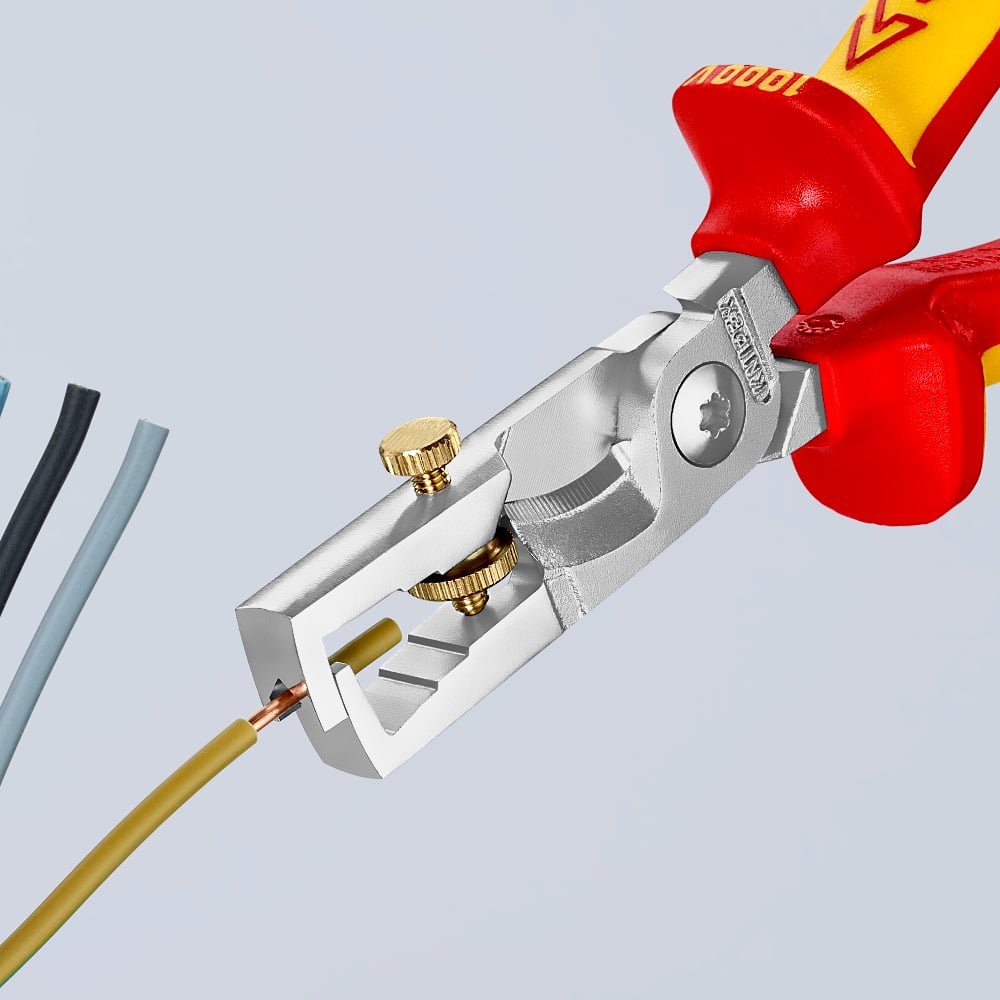

• Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section

• Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)

• Pliers with integrated, insulated tether attachment point for a tool tether

Technical Attributes:

• Article No.: 13 66 180 T

• EAN: 4003773081906

• pliers: chrome-plated

• head: chrome-plated

• handles: insulated with multi-component grips, VDE-tested with integrated insulated tether attachment point for a tool tether

• Weight: 215 g

• Dimensions: 180 x 53 x 27 mm

• Standard: DIN EN 60900 IEC 60900

• REACH compliant: does not contain SVHC

• RoHS compliant: not applicable

• Cutting capacity copper cable, multiple-stranded: 50 mm²

• Cutting capacity copper cable, multiple-stranded: Ø 15 mm

• Stripping capacities in square millimetres: 10.0 mm²

• Stripping capacities (diameter): Ø 5.0 mm

• AWG: 1 / 0

• Drop Protection System: yes

• VDE tested: yes

Documents:

Data Sheet

Data Sheet 2

Technical attributes
