Description
The Superior High-Leverage Diagonal Cutter with patented double joint

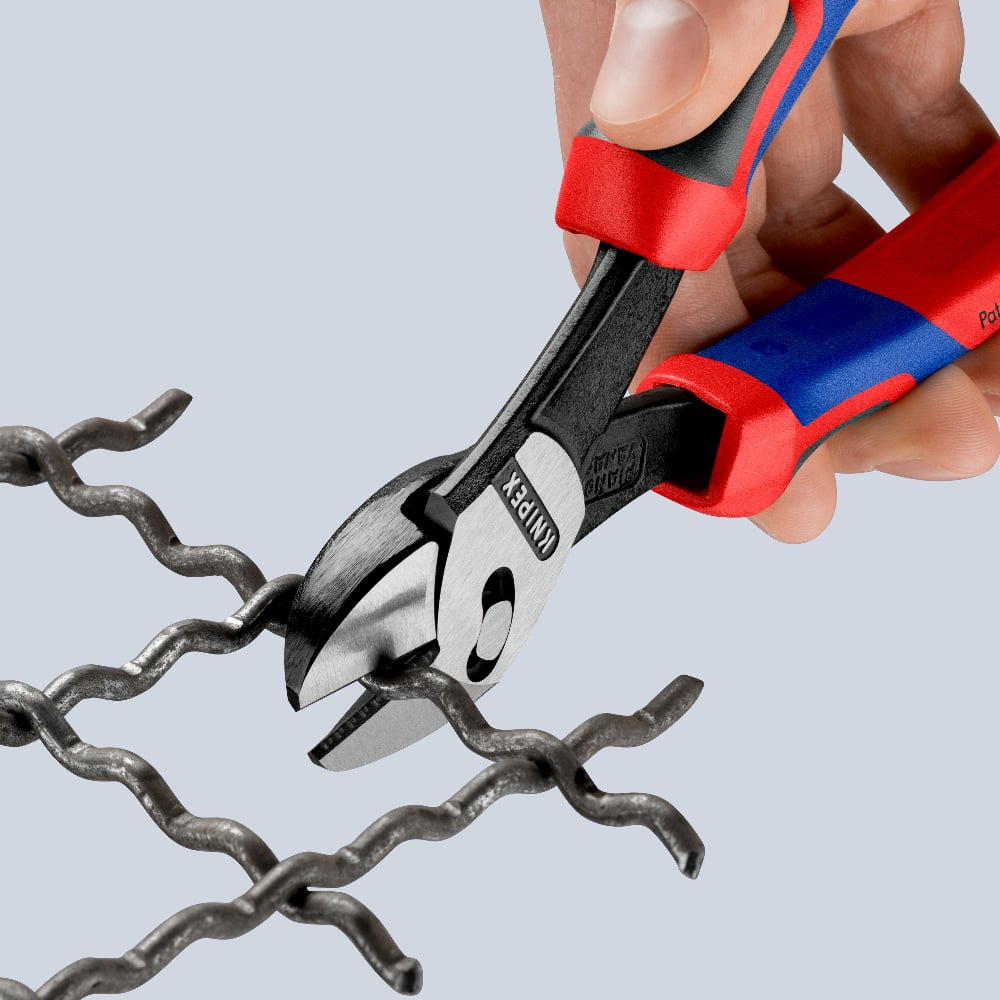

Insert the wires as close to the hinge as possible. In case of cutters with very high transmission, the width of the gap between the cutting edges close to the fulcrum may be less than the thickness of the wire. Wires may slip forward when the cutting starts.
First make a notch in the wire using the KNIPEX TwinForce® until the required hand force increases considerably. Now open the pliers and slide the wire backwards towards the joint. Hold the cutting edge in the notches you have made in step 1.
Continue cutting in the same location along the wire. Now cutting is much more easier because the wire remains in place closer to the fulcrum.
You can repeat this process if necessary.
- Ideal transmission of force due to double-hinged design
- Extremely easy cutting with little strain: cuts again 50 % easier than the tried and tested KNIPEX high leverage diagonal cutters
- Reliably cuts all types of wire, including steel tape
- For rough or very fine cutting
- Low cutting impact: gentle on hands. The tension on muscles and tendons is relieved
- For comfortable cutting, repetitive cutting or extremely hard cutting jobs
- High degree of stability and zero-backlash due to precisely milled forged-in axles
- Chrome vanadium heavy-duty steel, forged, oil-hardened
Insert the wires as close to the hinge as possible. In case of cutters with very high transmission, the width of the gap between the cutting edges close to the fulcrum may be less than the thickness of the wire. Wires may slip forward when the cutting starts.
First make a notch in the wire using the KNIPEX TwinForce® until the required hand force increases considerably. Now open the pliers and slide the wire backwards towards the joint. Hold the cutting edge in the notches you have made in step 1.
Continue cutting in the same location along the wire. Now cutting is much more easier because the wire remains in place closer to the fulcrum.
You can repeat this process if necessary.
Technical attributes
| Part No. | 73 72 180 |
|---|---|
| EAN | 4003773074779 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with comfort handles |
| Weight | 280 g |
| Dimensions | 180 x 52 x 22 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø max. 5.5 mm |
| Cutting capacities medium hard wire (diameter) | Ø 4.6 mm |
| Cutting capacities hard wire (diameter) | Ø 3.2 mm |
| Cutting capacities piano wire (diameter) | Ø 3.0 mm |
