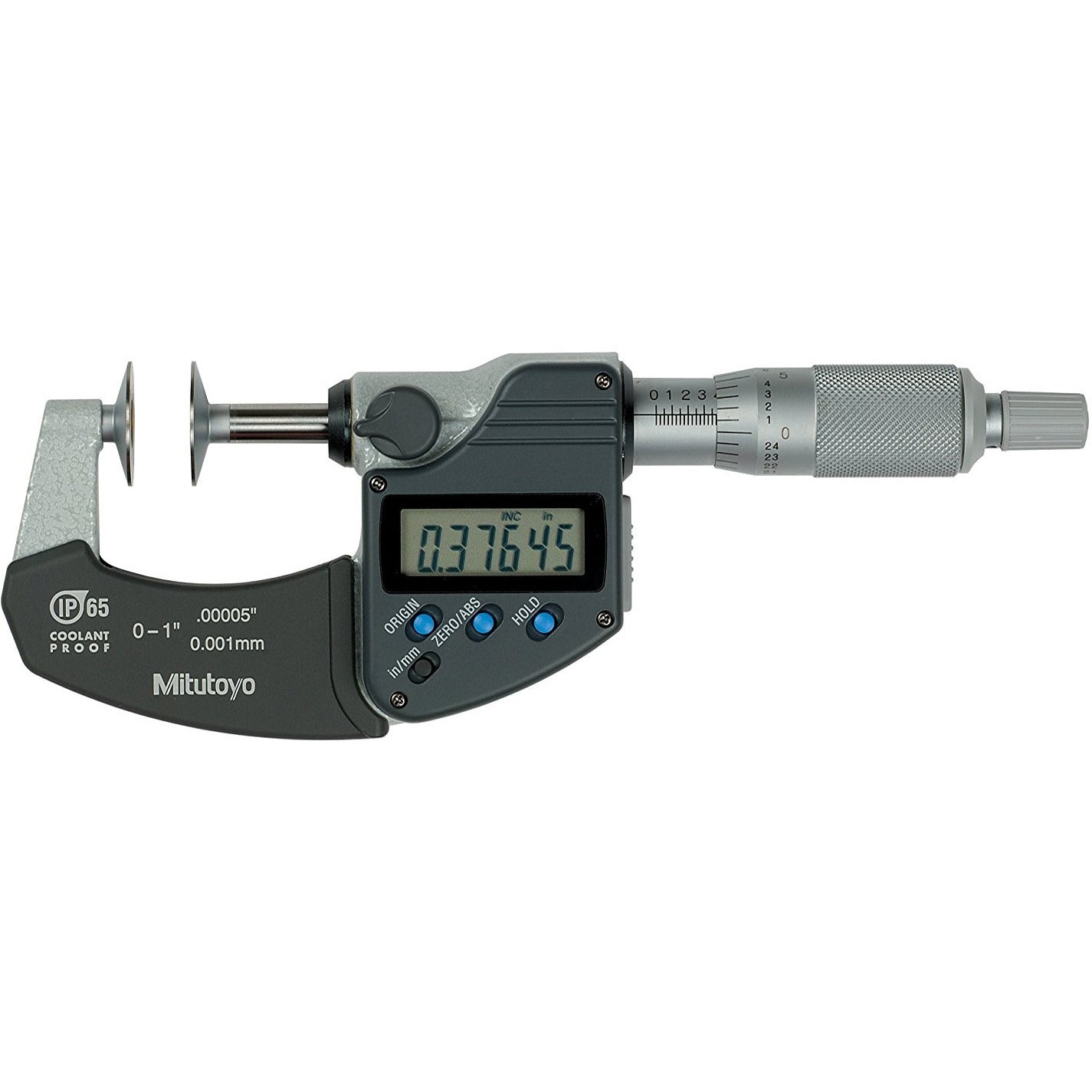

Diameter of measuring disk: 20mm / .787 0.7mm / .028 (1mm: models over 100mm) edge thickness to enter narrow recesses. With Ratchet Stop for constant force. With a standard bar except for 25mm / 0 - 1 model. With SPC output (Series 323). The Series 223 is provided with a mechanical digit counter for quick reading of measurements. Supplied in fitted plastic case. (Over 100mm models supplied wooden cases)
Technical Data Accuracy: Refer to the list of specifications. Resolution*:0.001mm or .00005"/0.001mm Graduation**: 0.01mm or .001" Flatness: 1µm / .00004 for models up to 100mm / 4 1.6µm / .000063 for models over 100mm / 4 Parallelism: 4µm / .00016 for models up to 50mm / 2 .00024 for models up to 4 (4+R/50)µmfor models up to 100mm (5+R/75)µm for models over 100mm, R=max. range (mm) Measurable module: 0.5-6 (0.7-11: models over 100mm) Display*: LCD Battery*: SR44 (1 pc.), 938882 Battery life*: Approx. 1.2 years under normal use *Digital models **Analog models Function of Digital Model Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error
