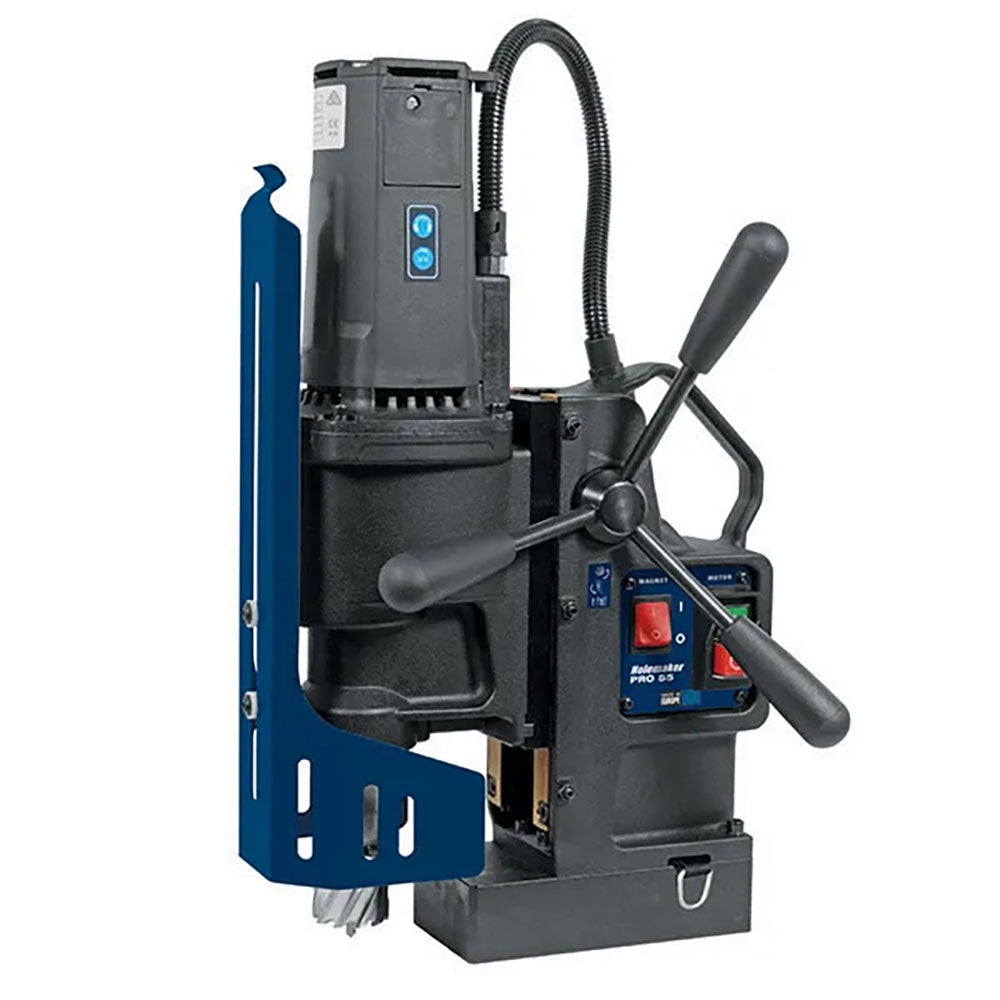

Description
Specifications
- Capacity (Diameter): 55mm
- Capacity (Depth): 75mm
- Capacity (Twist Drills): #2 Morse Taper 18mm
- Motor Power: 1100 Watt
- Input Power: 1200 Watt Single Phase 240V
- Speed: 2 Speed 200 / 400rpm
- Weight: 15.5kg
- Magnetic Dead Lift: 9 900Nm On 25mm Steel Plate
- Stroke: 165mm
- Height (Min. / Max.): 409 / 574mm
Key features
- New Rigid Frame Design
- Provides increased life of cutting tools
- New Extra Large 165mm Stroke
- Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel inone pass twist drills reamers taps etc
- Magnetic Field Shape Control (MFSC)
- Provides maximum holding power on thin materials
- Lightweight & Powerful
- The new generation Holemaker machines are lighter andmore powerful than other brands on the market
- European made machine
- Extra large 165mm stroke allowing the use of an optional13mm twist drill chuck
- Industrial 2-speed gearbox
- Through spindle coolant system with an external sidemounted gravity feed coolant tank
- The feed handles can be placed on either the left or righth and side for increased versatility
- Smart magnet technology to ensure sufficient magneticadhesion
- Integrated cutter guard for increased user safety
- Supplied in a blow mould plastic carry case
- Grub screw arbor system which fastens positively onto Holemaker cutters
- 13mm drill chuck SA70102 available separately
