Description
Specifications
- Rated Capacity: 2 Tonne
- Standard Lift: 3m
- Running Test Load: 25k N
- Motor: 1200w 240v 1P
- No. of Chain Drops: 2
- Chain Type: Grade 80 7.1mm
- Lift Speed: 3m/min
- Net Weight: 65kg
- Extra Weight Per Metre Of Extra Lift: 2.2kg

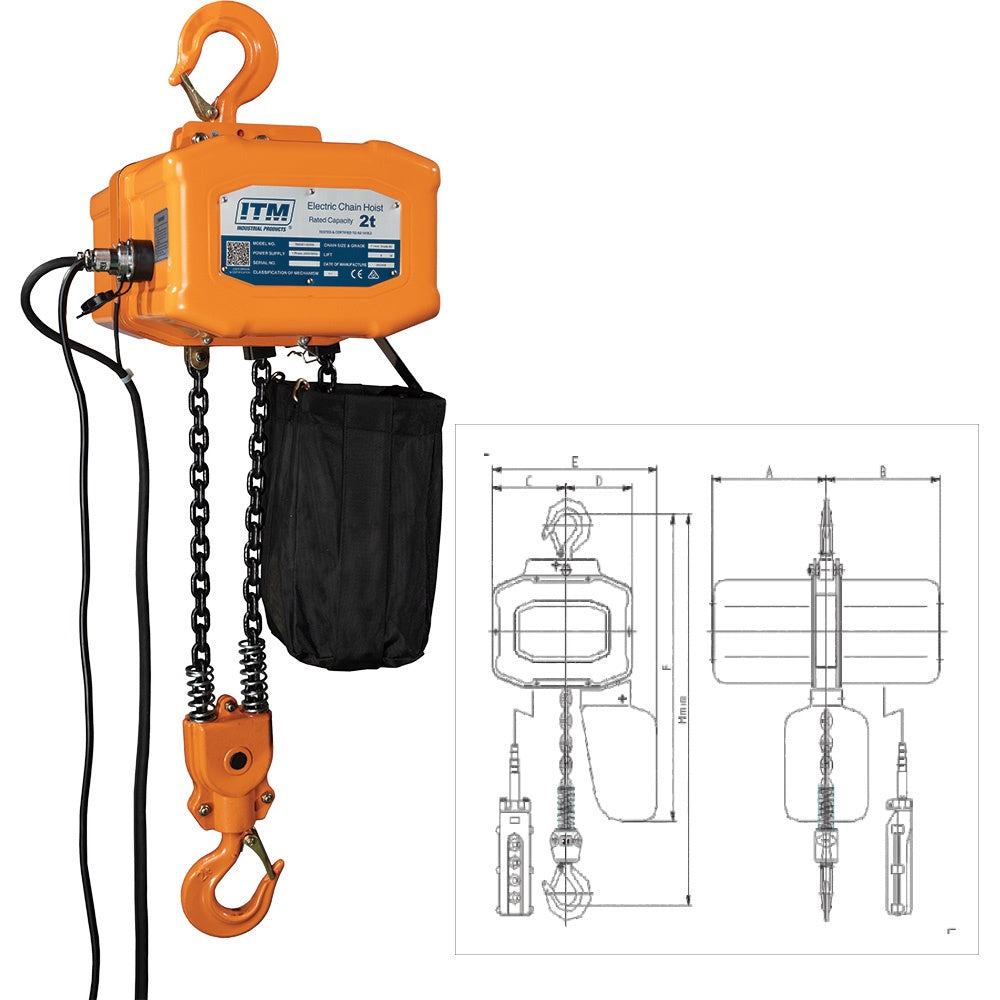

- A: 245
- B: 245
- C: 124
- D: 176
- E: 350
- F: 610
- H: 630
Key features
- Japanese technology with dual braking system to ensuresafe and reliable operation
- Compact and light weight design
- Weight overload limiter for safety
- Thermal overload motor protection
- Single phase 240V motor
- Upper and lower limit switches to prevent chain runout
- Chain length can be altered by ITM to your required length
- Tested & certified to AS 1418.2
- Test certificate & user manual supplied
- Replacement Chain 7.1mm TM9810-01607-1
