Description
Specifications
- Rated Capacity: 2.0 Tonne
- Standard Lift: 3m
- Hoist Motor: 1200w 240v 1P
- Trolley Motor: 300w 240v 1P
- No. Of Chain Drops: 2
- Chain Type: Grade: 80 7.1mm
- Lift Speed: 3m/min
- Trolley Speed: 20m/min
- Size of I-beam: 74-124mm
- Min. Radius Of Curve: 1.1m
- Net Weight: 107kg

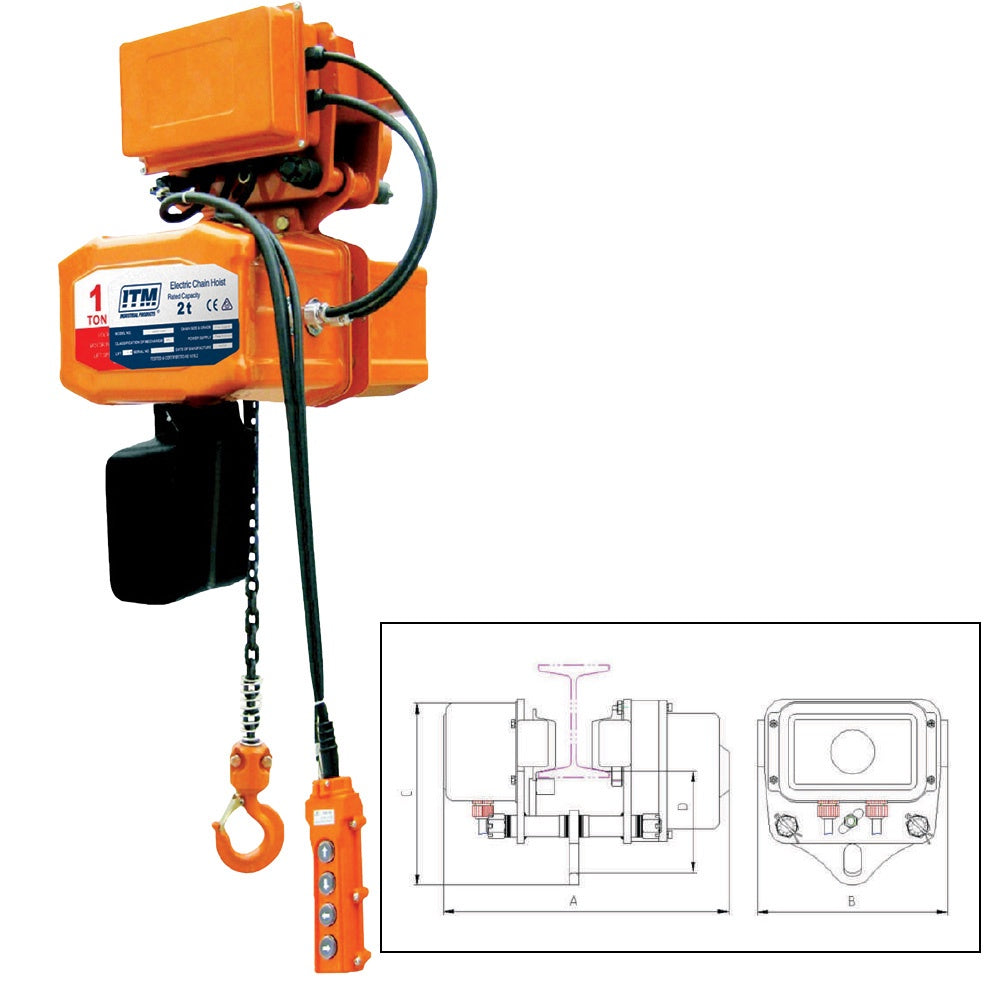

- Dimensions (mm) (FRONT)
- A: 245
- B: 245
- C: 124
- D: 176
- E: 350
- F: 610
- H: 630
- Dimensions (mm) (TOP)
- A: 296
- B: 270
- C: 264
- D: 180
Key features
- Japanese technology with dual braking system to ensuresafe and reliable operation
- Compact and light weight design
- Weight overload limiter for safety
- Thermal overload motor protection
- Single phase 240V motor
- Upper and lower limit switches to prevent chain runout
- Chain length can be altered by ITM to your required length
- Tested & certified to AS 1418.2
- Test certificate & user manual supplied
