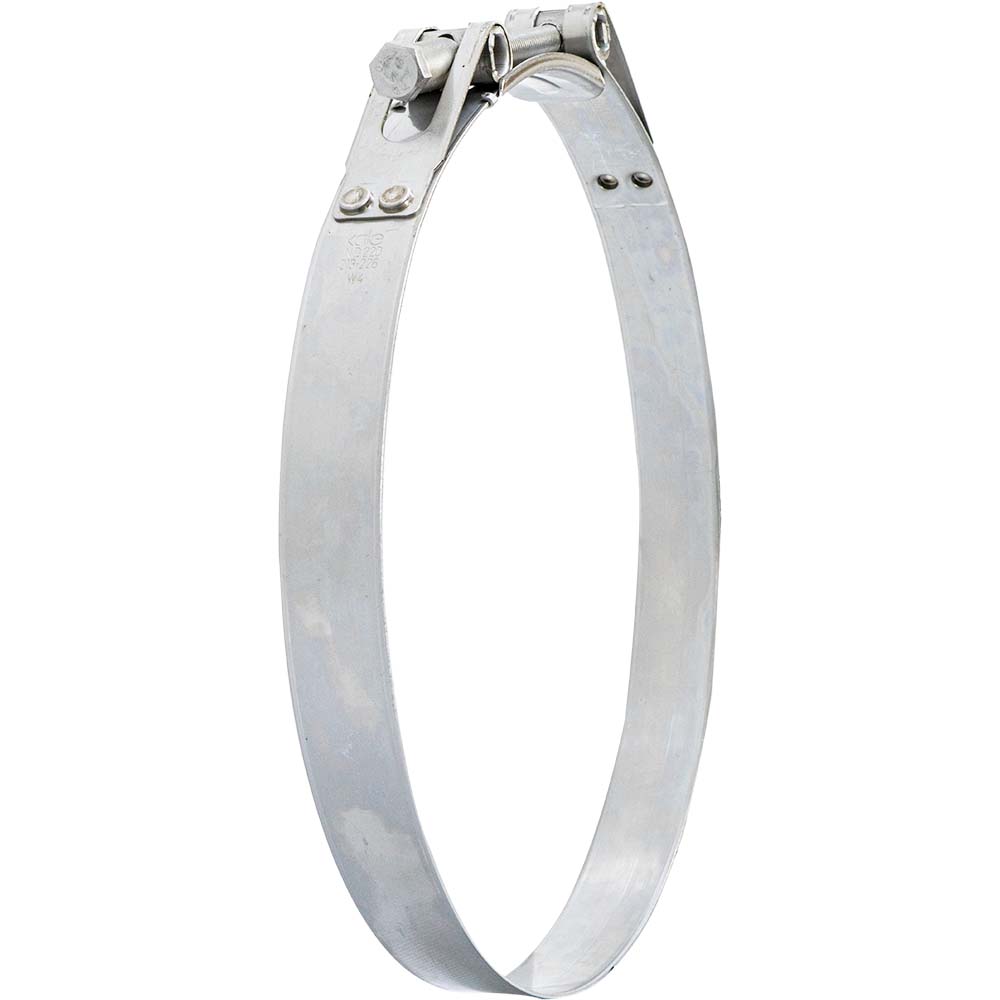

HD25213226W4T | Kale HD25 213-226mm W4 TOX (ea)
Innovatively designed and meticulously engineered KaleHeavy Duty T-Bolt clamps have achieved new standards inperformance and reliability
Kale HD T-Bolt clamps are manufactured utilisingTOX®-Clinching joints. A cold forming press technique thatis more than 70%stronger than welding and superior to tabstyle mechanicallocks.Produced in Europe to DIN 3017-3 standards Kale HDT-Boltclamps are suitable for high shore hardness orreinforcedhoses.
Additional design features include:• No welding and no contact corrosion points• Hollow ‘D’ shape trunnions to reduce tensile force onthebolt and clinched joint• A profiled bridge with extended tabs for secureattachmentto the band without welding• W1 steel bolts are Class 8.8 and feature anintegratedspacer in place of a separate bush• Rolled band edges which are designed to protect damagetothe hose or wall fabric• A high clamping force with low free torque value.
Specification• Band With: 25mm• Hex: 13mm• Diameter Range: 213 - 226mm• Tightening Torque: 20Nm
Materials• Band: Stainless Steel 1.4301• Bridge: Stainless Steel 1.4301• Bolt: ISO 3506-1 Class A2-70• Bush: Stainless Steel 1.4301• Trunnion: Stainless Steel 1.4301• Corrosion Resistance acc. to ISO 9227: Min. 240 hours
Available in 2 materials (W1 and W4) in sizes rangingfrom17-19mm through to 239-252 mm typical applicationsincludesuction and pump hoses across a wide range of• Industries• Agriculture• Automotive• Marine• Mining• Plumbing• OEMs.
Innovatively designed and meticulously engineered KaleHeavy Duty T-Bolt clamps have achieved new standards inperformance and reliability
Kale HD T-Bolt clamps are manufactured utilisingTOX®-Clinching joints. A cold forming press technique thatis more than 70%stronger than welding and superior to tabstyle mechanicallocks.Produced in Europe to DIN 3017-3 standards Kale HDT-Boltclamps are suitable for high shore hardness orreinforcedhoses.
Additional design features include:• No welding and no contact corrosion points• Hollow ‘D’ shape trunnions to reduce tensile force onthebolt and clinched joint• A profiled bridge with extended tabs for secureattachmentto the band without welding• W1 steel bolts are Class 8.8 and feature anintegratedspacer in place of a separate bush• Rolled band edges which are designed to protect damagetothe hose or wall fabric• A high clamping force with low free torque value.
Specification• Band With: 25mm• Hex: 13mm• Diameter Range: 213 - 226mm• Tightening Torque: 20Nm
Materials• Band: Stainless Steel 1.4301• Bridge: Stainless Steel 1.4301• Bolt: ISO 3506-1 Class A2-70• Bush: Stainless Steel 1.4301• Trunnion: Stainless Steel 1.4301• Corrosion Resistance acc. to ISO 9227: Min. 240 hours
Available in 2 materials (W1 and W4) in sizes rangingfrom17-19mm through to 239-252 mm typical applicationsincludesuction and pump hoses across a wide range of• Industries• Agriculture• Automotive• Marine• Mining• Plumbing• OEMs.
