Description

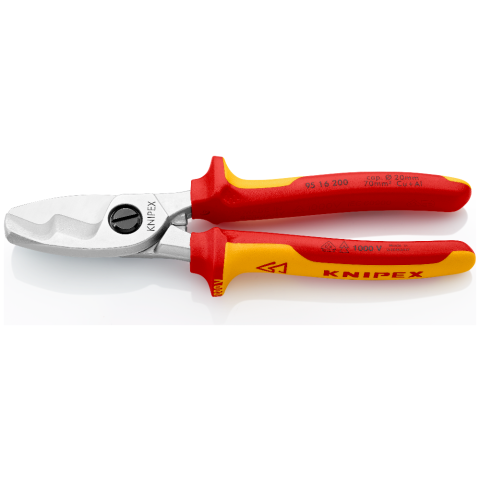

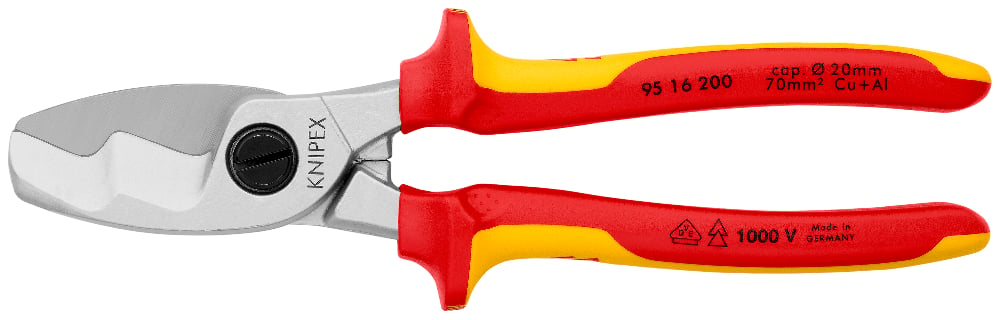

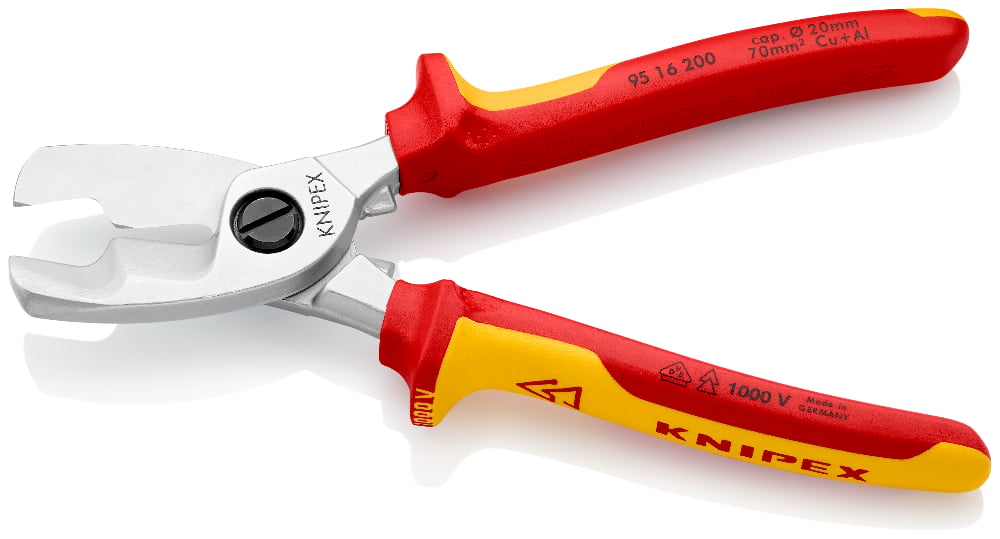

8" (200mm) VDE 1000V Cable Shears with Twin Cutting Edge - KINPEX® #95 16 200
- For cutting copper and aluminium cables
- Not suitable for steel wire and hard drawn copper conductors
- Precision ground, hardened blades
- Clean and smooth cut without crushing and deformation
- Easy cutting with one-hand operation
- Initial and final cut (upper and lower blade) allows cables of up to 20 mm diameter to be cut
- Low hand force required due to favourable lever ratio and special blade geometry
- Guard prevents operators’ fingers being pinched
- Adjustable bolted joint, self-retaining screw
- High-grade special tool steel, forged, oil-hardened

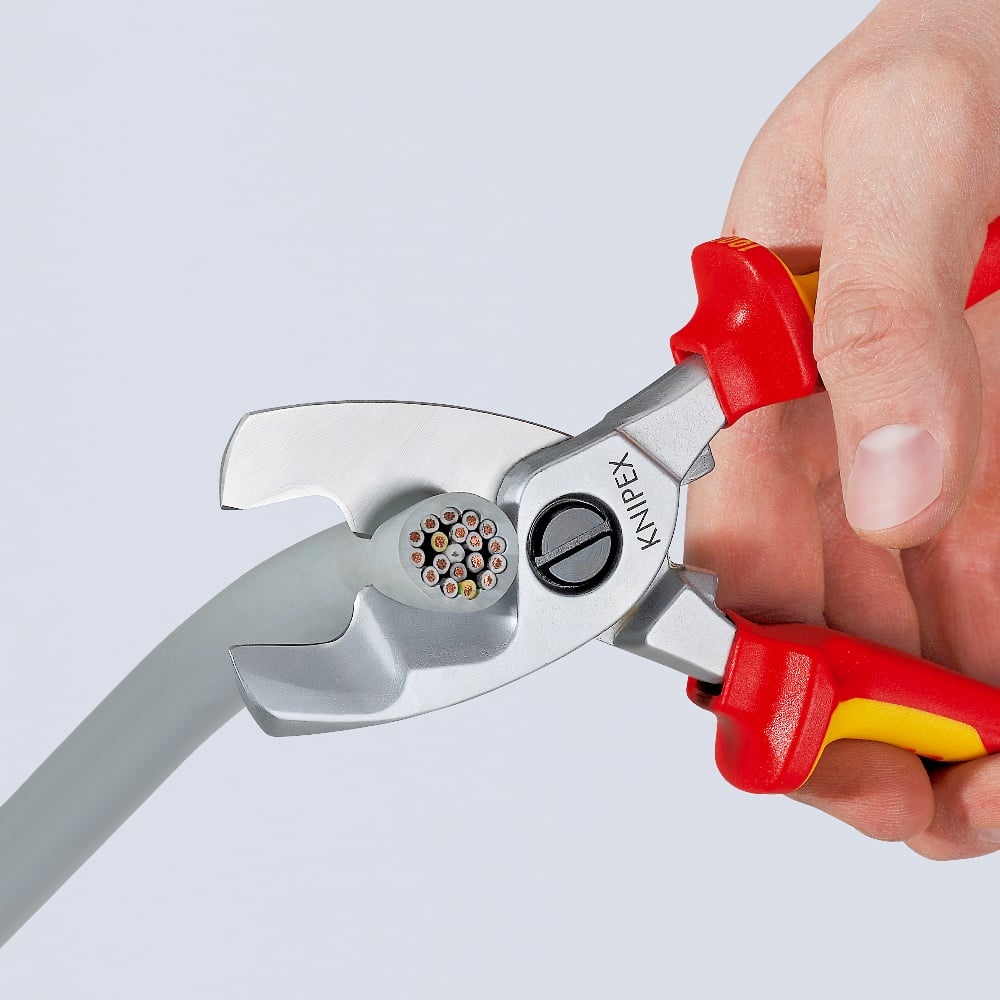

- Initial cut: using the front cutting edge to cut the insulating sheath on larger cable diameters leaves an ergonomic handle opening width.
- Final cut: after cutting the sheath in the front profile the conductors in the rear part are cut. Initial cut in the front profile, final cut in the rear profile - to keep it as easy as possible.
Technical attributes
| Part No. | 95 16 200 |
|---|---|
| EAN | 4003773026761 |
| Shears | chrome-plated |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 340 g |
| Dimensions | 200 x 68 x 19 mm |
| Standard | DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacity copper cable, multiple-stranded | 70 mm² |
| Cutting capacity copper cable, multiple-stranded | Ø 20 mm |
| AWG | 2 / 0 |
| VDE tested | yes |
